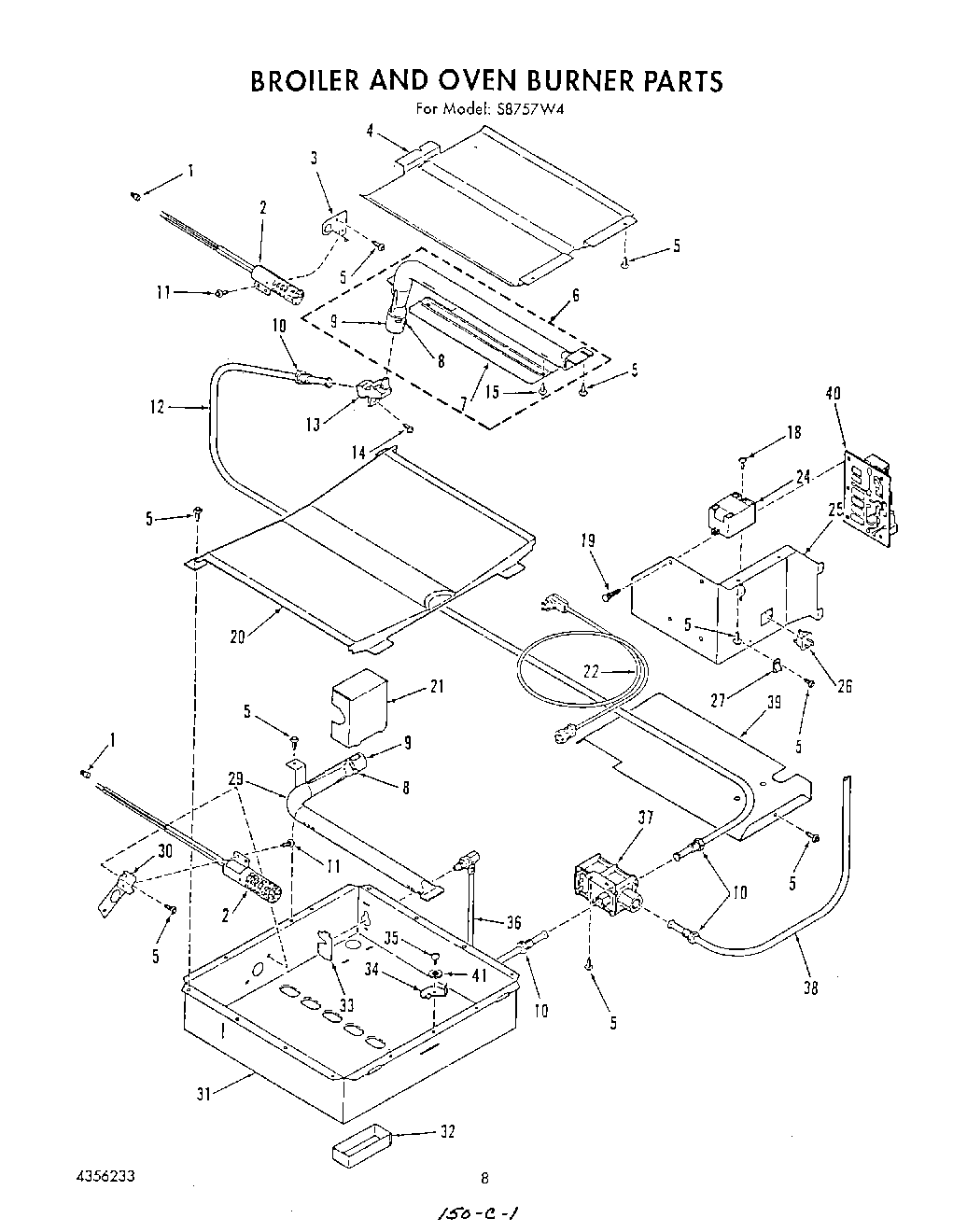

S8757^4 06 – BROILER AND OVEN BURNER

S8757^4 06 – BROILER AND OVEN BURNER

Written by

in

S8757^4 06 – BROILER AND OVEN BURNER

Products

PositionProduct
1WP4323866 Whirlpool Connector
2Ignitor-Bake/Broil
3Bracket, Broiler Burner Igniter
4Baffle-Broiler Burner
5W10850756 Whirlpool Screw
6Broiler Burner, (Inc`s 7,8,9,15)
7Baffle
8Screw, Adjustment-Air Shutter
9Shutter, Air
10Nut, Inverted 3/8
12Tubing 3/8“, Control Valve to Broiler Orifice
13Fitting-Orifice/-Broiler Burner
14Screw, No.10-32 x 1/2
15WP489128 Whirlpool Refrigerator Screw
18Screw 6-20×3/8
19Spacer
20Baffle, Burner
21Shield, Orifice Fitting
22Power Cord
24Module-Spark
25Mounting Bracket
26Disconnect
27Clip (For No.1)
29Burner, Oven
30Bracket, Igniter
31Bottom, Burner Box
32Retainer, Orifice Insulation
33Plate, Orifice Mounting
34Latch, Burner Box Bottom
35Screw, Shoulder
36Tubing 3/8“, with Orifice Fitting (Control Valve to Oven Burner)
37Control Valve
38Tubing 3/8 (Shut-Off Valve to Control Valve)
39Wire Shield
40Relay, Circuit Board
41Washer, Spring
