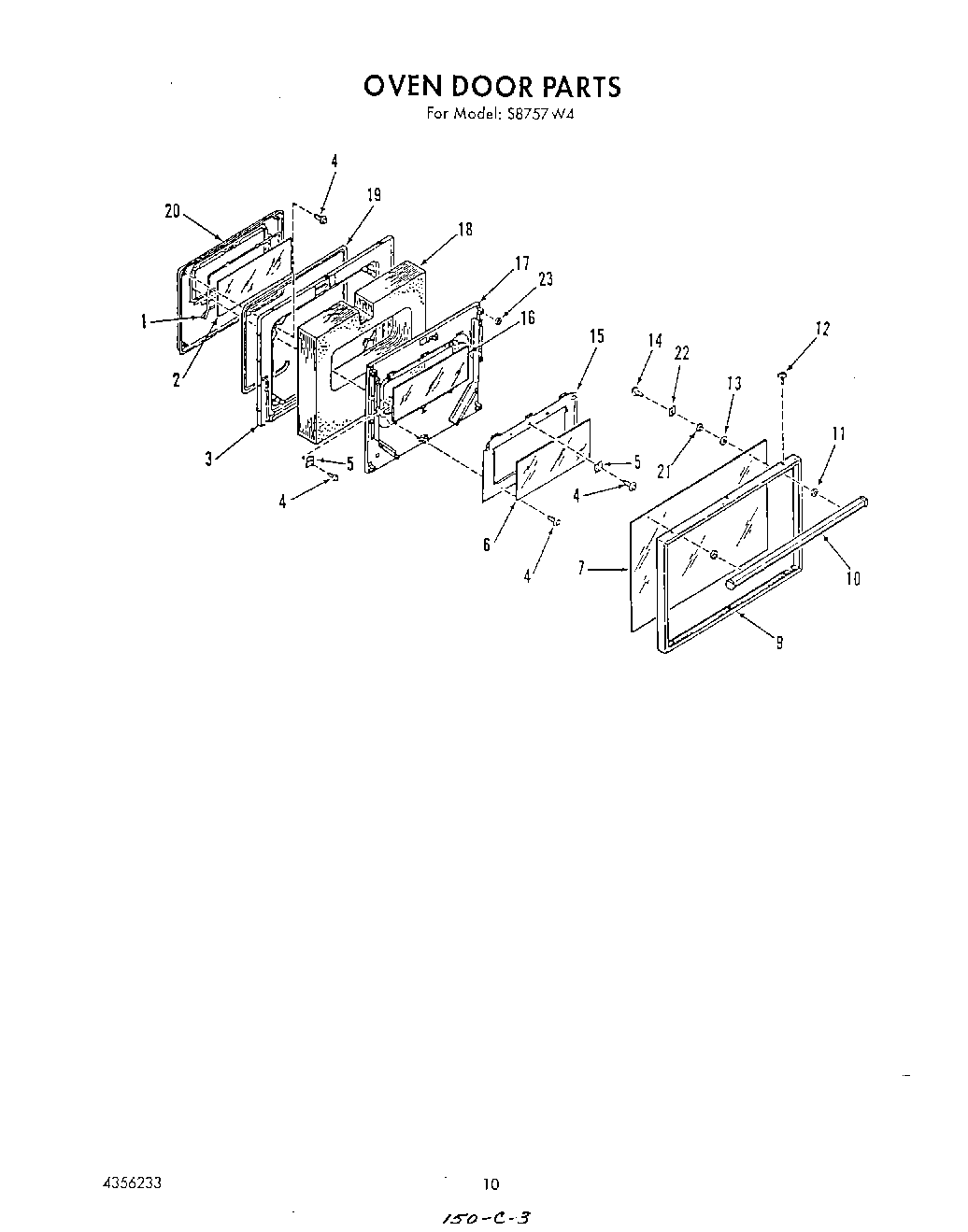

S8757^4 07 – OVEN DOOR

Products

Position	Product
1	Seal, Inner Glass
2	Glass, Inner
3	Lining, Door
4	W10850756 Whirlpool Screw
5	Retainer, Glass
6	Glass, Intermediate
7	Glass, Outer
9	Frame, Door
10	Handle, Door
11	Spacer, Dr. Handle
12	Screw
13	Washer, Fiber
14	Screw, No.10-32 x 3/4
15	Mounting Plate
16	Glass, Center
17	Retainer, Insulation
18	Insulation
19	Gasket, Door
20	Plug, Door Lining
21	Spacer, Glass Door
22	Retainer
23	Washer, Felt
