S8757W0 04 – TOP BURNER

Products

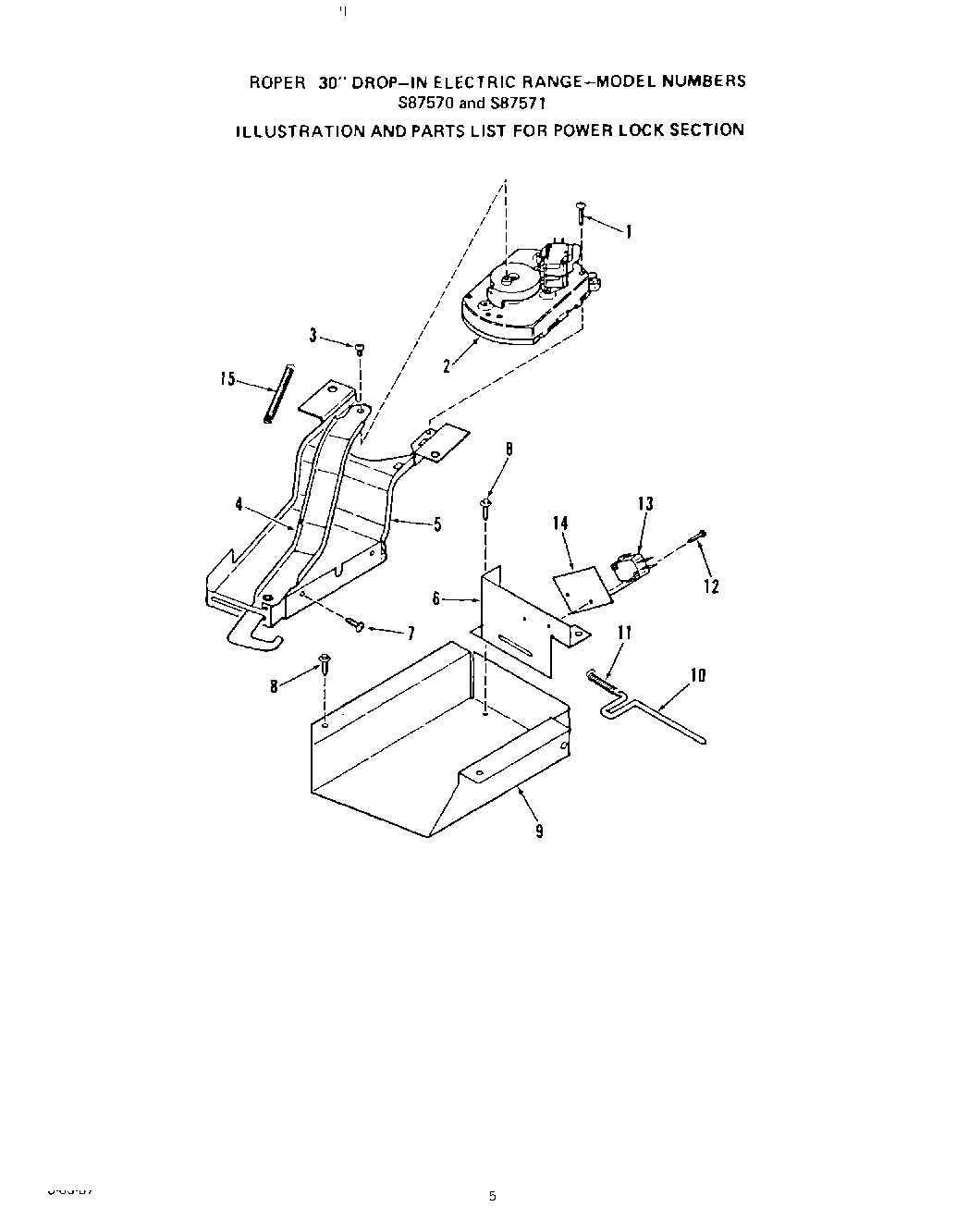

Position	Product
1	Screw 8 - 32 x 850
2	Lock Motor Asm
3	WPL 232183
4	Lock Lever Asm
5	Door Lock Plate
6	Door Switch Bracket
7	Screw-10-32x1/2``
8	Screw 10-16x7/16``
9	Lock Box
10	Switch Actuator Pin
11	Spring
12	Screw 4-40x11/16``
13	Micro Switch
14	Insulator-Switch (3 Req)
15	Lock Spring
