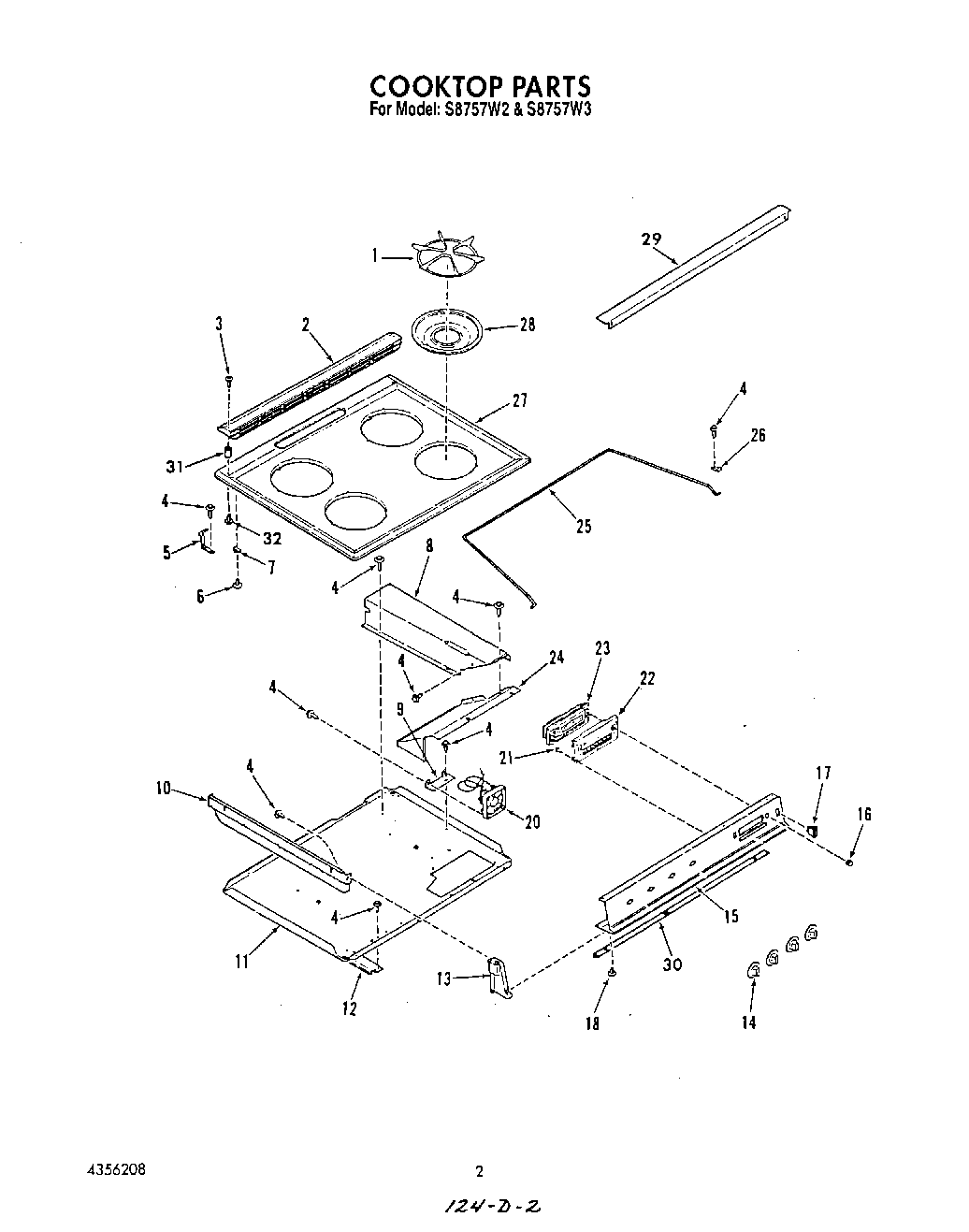

S8757W2 02 – COOKTOP , LITERATURE
Written by
in
S8757W2 02 – COOKTOP , LITERATURE
Products
Position
Product
1
Grate, Burner (4)
2
Vent Cover
3
Screw No.6-32×1/2
4
W10850756 Whirlpool Screw
5
Hinge, Cooktop (Left)
5
Hinge, Cooktop (Right)
6
Screw, No.10-32 x 5/16
7
Bracket, Hinge
8
Fan Duct
9
Bracket, Fan
10
Extension, Side
11
Bottom, Burner Box
12
Support, Bottom (Right)
12
Support, Bottom (Left)
13
End Cap (Right)
13
End Cap (Left)
14
Knob, Gas Valve (4)
15
Manifold Panel
16
Knob, Clock
17
WP4314961 Whirlpool Lite Switch
18
Screw No.10-32×1/2
20
Fan
21
Screw
22
Clock Lens Asm.
23
Clock/Oven Control
23
Control, Clock, Oven (Model S8757-2)
24
Wire Cover
25
Support-Cooktop
26
Clamp
27
Cooktop (Chrome)
27
Cooktop (White)
27
Cooktop (Almond)
28
Aeration Pan
29
Filler Trim
30
Barrier
31
Spacer, Vent Cover
32
Screw 6-32×5/16
32
Model S8757-3
32
Model S8757-3
32
Model S8757-2
32
Model S8757-2
←
