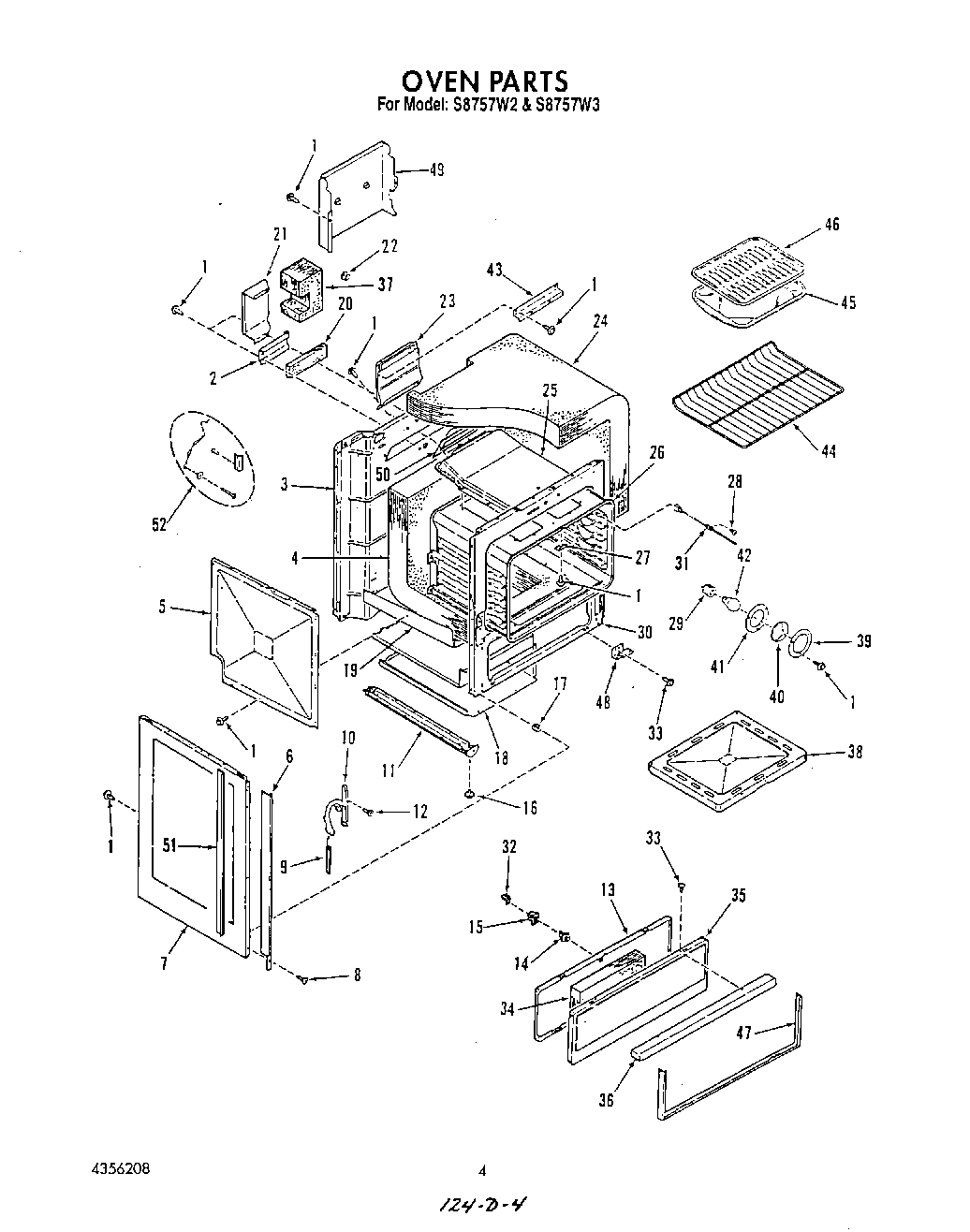

S8757W2 03 – OVEN

S8757W2 03 – OVEN

Written by

in

S8757W2 03 – OVEN

Products

PositionProduct
1SCREW
2Shield, Wire
3Back
4Insulation, Back And Bottom
5Insulation Retainer (Lt/Rt)
6Trim, Side (Left)
6Trim, Side (Right)
7Side Body, Lt/Rt
8Screw No.8×5/8
9Spring, Oven Door (Lt/Rt)
10Hinge-Oven Door (Right)
10Hinge-Oven Door (Left)
11Base W/Levelers, Lt/Rt
12Screw
13Lining, Storage Door
14Strike
15Catch
16Leg Leveler (4)
17Nut-Expansion (6)
18Compartment, Storage
19Retainer, Lower Insulation
20Insulation
21Wire Shield
22Bushing
23Flue Deflector
24Insulation, Top And Sides (1 Pc)
25Flue Box
26Oven Cavity
27Cover
28Screw
29W10856866 Whirlpool Light Socket
30Front Frame
31Sensor
32Bracket
33Screw No.10-32×1/2
34Insulation
35Panel, Front Storage Door
36Handle
37Insulation
38Bottom, Oven
39Retainer, Lens
40Lens, Oven Light
41Gasket, Lens
42RANGE ONLY 40W 120V APPL BULB
43Support, Flue Deflector
44Rack, Oven
464396923 Whirlpool Broil Pan Set Gray Porcelain
47Frame, Storage Door Panel
48Hinge
49Shield, Flue Deflector
50Insulation, Flue
51WPL 4336565
52Stability Kit
