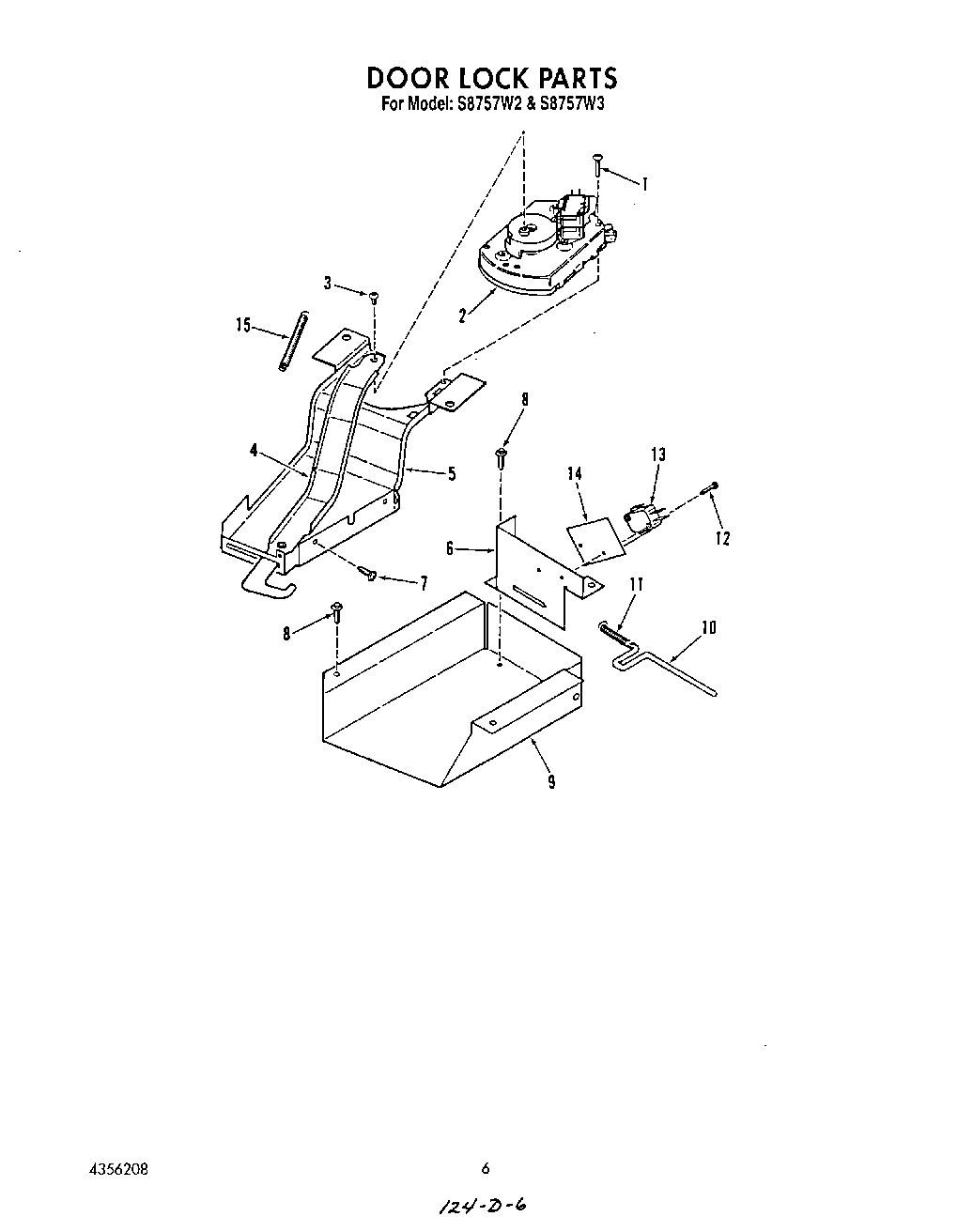

S8757W2 04 – DOOR LOCK
Written by
in
S8757W2 04 – DOOR LOCK
Products
Position
Product
1
Screw No.8-32×55/64
2
Lock Motor Asm.
3
Screw, No.8-32 x 3/8
4
Lock Lever Asm.
5
Plate
6
Bracket, Door Switch
7
Screw No.10-32×1/2
8
SCREW
9
Lock Box
10
Actuator Pin
11
Spring
12
Screw
13
Switch, Micro
14
Insulator
15
Spring, Lock
←
