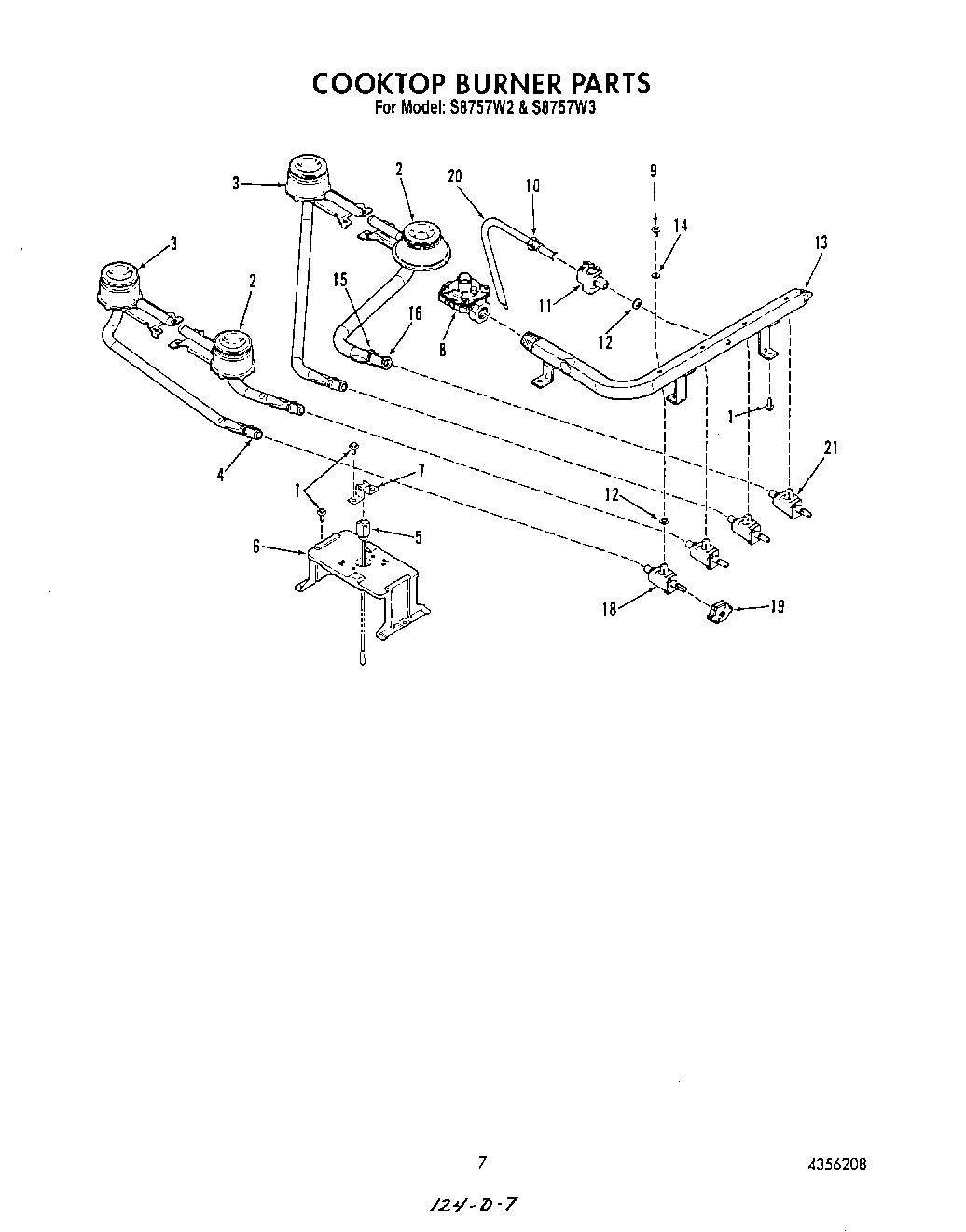

S8757W2 05 – COOKTOP BURNER

S8757W2 05 – COOKTOP BURNER

Written by

in

S8757W2 05 – COOKTOP BURNER

Products

PositionProduct
1SCREW
2Top Front Burner (Right)
2Top Front Burner (Left)
3Top Rear Burner (Right)
3Top Rear Burner (Left)
4Air Shutter (3)
5Spark Igniter (Right)
5Spark Igniter (Left)
6Burner Support Rt/Lt
7Bracket-Ignitor (Lt or Rt)
8Regulator-Pressure
9Screw, Mounting-1 Each-illus. 10 & 20
10Nut, Inverted 3/8
11Valve, Shut Off
12Seal, Valve-1 ea. Illus. 10 & 20
13Manifold Pipe
14Seal (for No.26)
15Screw-Adjustment, (Air Shutter)
16Air Shutter
18Gas Valve-Lt Front Lt/Rt Rear
19WP4330739 Whirlpool Igniter Switch
20Tubing 3/8 (Shut-Off Valve to Control Valve)
21Gas Valve, Rt Front
