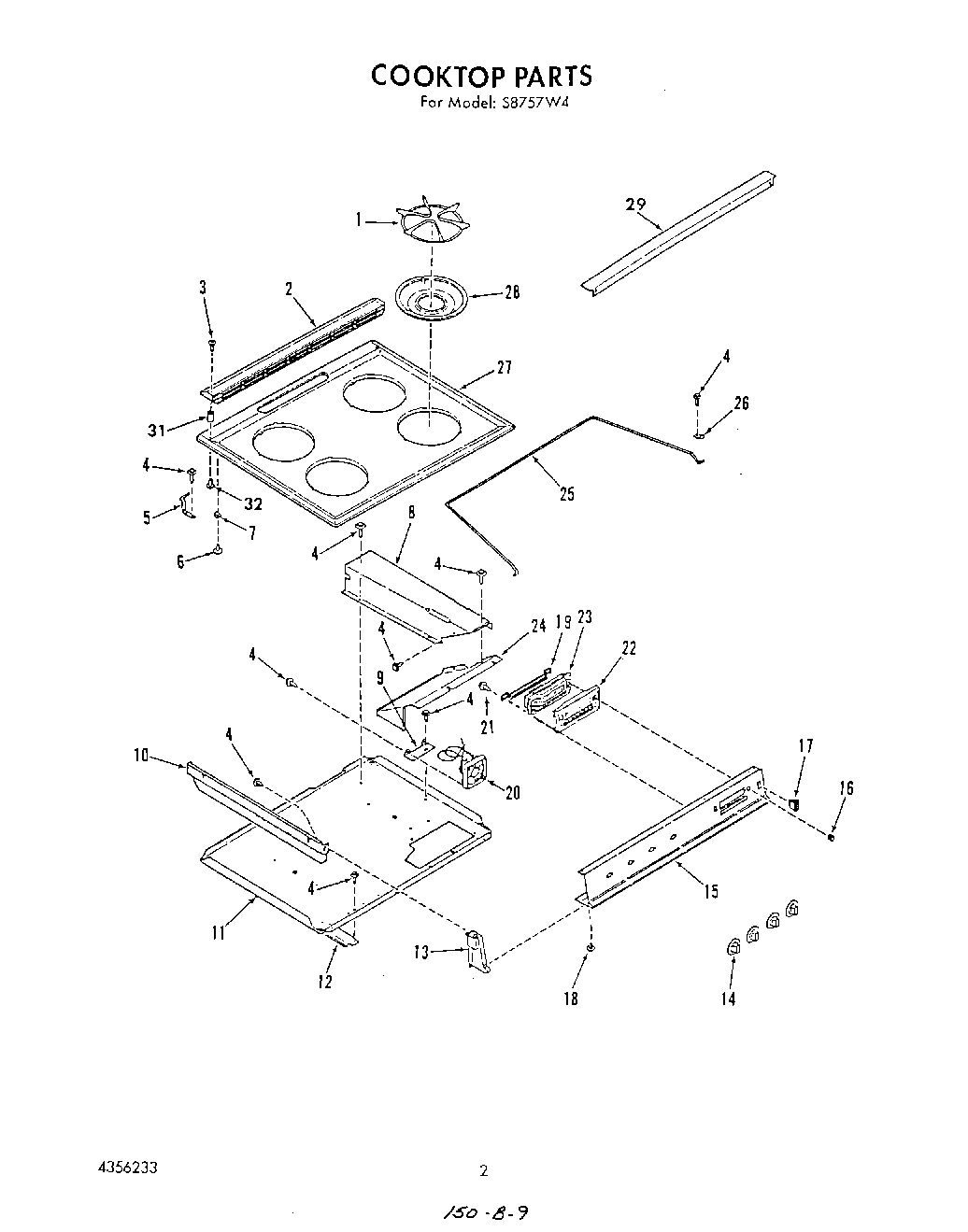

S8757W4 02 – COOKTOP

Products

Position	Product
1	Grate, Burner (4)
2	Vent Cover
3	Screw No.6-32×1/2
4	W10850756 Whirlpool Screw
5	Hinge, Cooktop (Left)
5	Hinge, Cooktop (Right)
6	Screw, No.10-32 x 5/16
7	Bracket, Hinge
8	Fan Duct
9	Bracket, Fan
10	Extension, Side
11	Bottom, Burner Box
12	Support, Bottom (Left)
12	Support, Bottom (Right)
13	End Cap (Right)
13	End Cap (Left)
14	Knob, Gas Valve (4)
15	Manifold Panel
16	Knob, Clock
17	WP4314961 Whirlpool Lite Switch
18	Screw No.10-32×1/2
19	Brace, Clock Stiffener
20	Blower, Fan
21	Screw
22	Clock Lens Asm.
23	Clock/Oven Control
24	Wire Cover
25	Support-Cooktop
26	Clamp
27	Cooktop (White)
27	Cooktop (Almond)
27	Cooktop (Chrome)
28	Aeration Pan
29	Filler Trim
31	Spacer, Vent Cover
32	Model S8757-3
32	Screw 6-32×5/16
32	Model S8757-3
32	Repair Parts List
