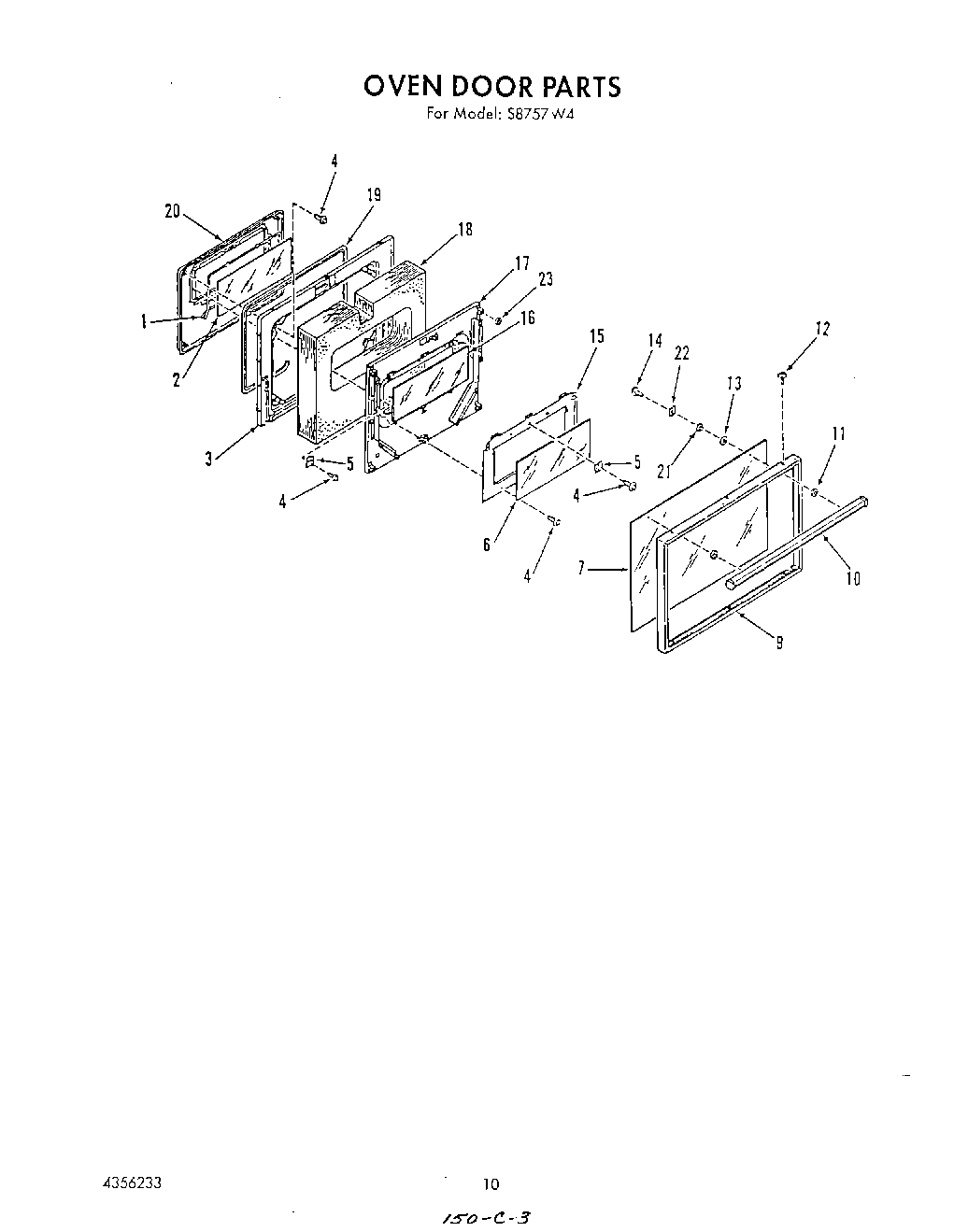

S8757W4 07 – OVEN DOOR

Products

PositionProduct
1Seal, Inner Glass
2Glass, Inner
3Lining, Door
4W10850756 Whirlpool Screw
5Retainer, Glass
6Glass, Intermediate
7Glass, Outer
9Frame, Door
10Handle, Door
11Spacer, Dr. Handle
12Screw
13Washer, Fiber
14Screw, No.10-32 x 3/4
15Mounting Plate
16Glass, Center
17Retainer, Insulation
18Insulation
19Gasket, Door
20Plug, Door Lining
21Spacer, Glass Door
22Retainer
23Washer, Felt
