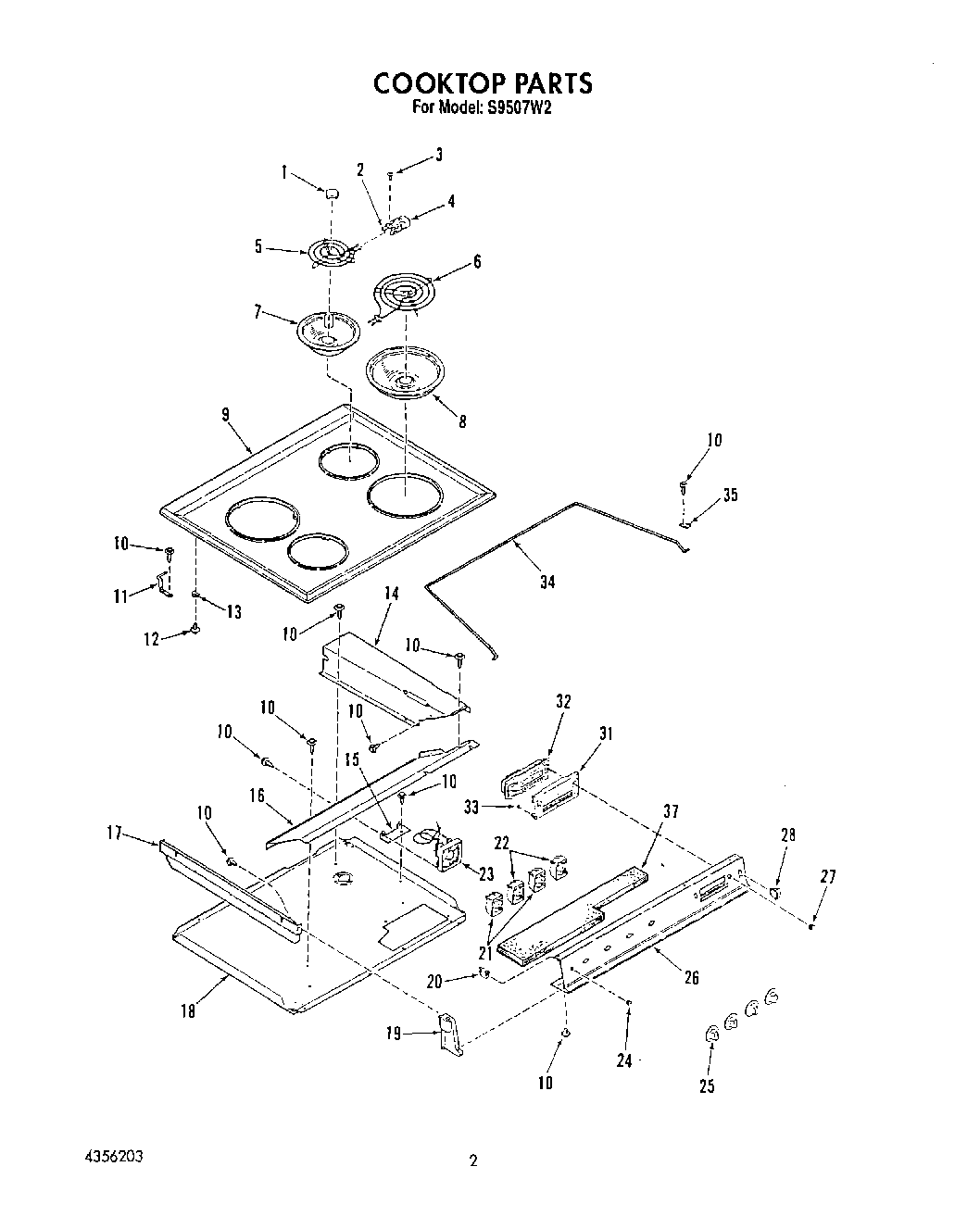

S9507^2 02 – COOKTOP, LIT/OPTIONALadmin2025-04-26T11:19:35+00:00S9507^2 02 – COOKTOP, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | Medallion (2) |
| 2 | WP4332752 Whirlpool Clip |
| 3 | Screw, No.7-32 x 5/16 |
| 4 | BURNER RECEPTACLE KIT |
| 5 | WPY04100165 Whirlpool Surface Element |
| 6 | WP3177565 Whirlpool Surface Element |
| 7 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 8 | DRIP BOWL 8" W/HOLE CHROME |
| 9 | Cooktop (White) |
| 9 | Cooktop (Chrome) |
| 9 | Cooktop (Almond) |
| 10 | SCREW |
| 11 | Hinge, Cooktop (Right) |
| 11 | Hinge, Cooktop (Left) |
| 12 | Screw, No.10-32 x 5/16 |
| 13 | Bracket, Hinge |
| 14 | Duct, Fan |
| 15 | Bracket, Fan |
| 16 | Wire Cover |
| 17 | Extension, Side |
| 18 | Bottom, Burner Box |
| 19 | End Cap (Left) |
| 19 | End Cap (Right) |
| 20 | Indicator Light (Oven Unit) |
| 21 | W10900107 Whirlpool Oven Surface Element Switch |
| 23 | Fan |
| 24 | WP9750343 Whirlpool Light Lens |
| 25 | Knob, Infinite Control (4) |
| 26 | Control Panel |
| 27 | Knob, Clock |
| 28 | WP4314961 Whirlpool Lite Switch |
| 31 | Clock Lens Asm. |
| 32 | Clock/Oven Control |
| 33 | Screw |
| 34 | Support-Cooktop |
| 35 | Clamp |
| 37 | Use & Care Manual |
| 37 | Installation Guide |
| 37 | Insulation Bezel, Knob |
| 37 | Parts List |
