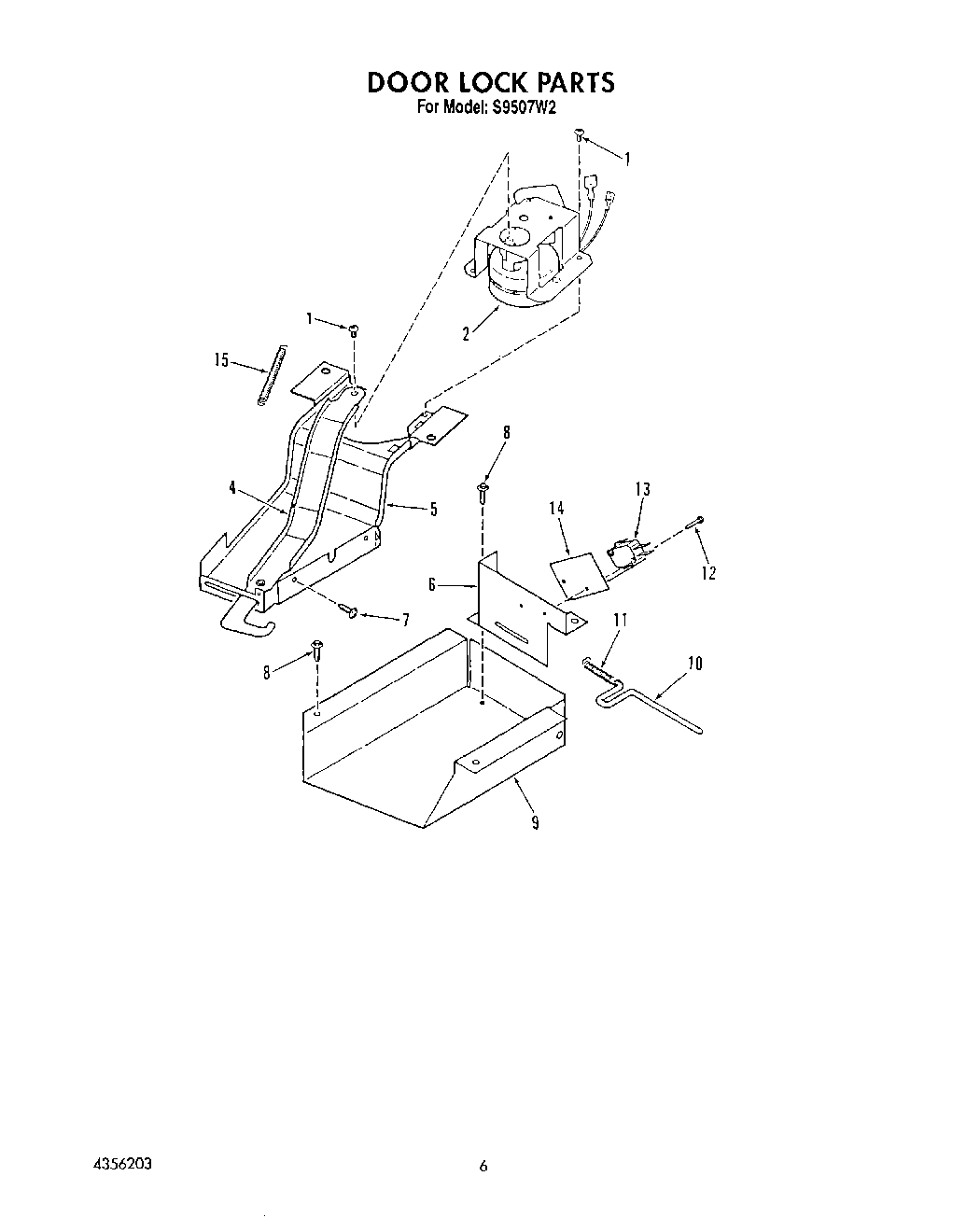

S9507^2 05 – DOOR LOCK

Products

Position	Product
1	Screw, No.8-32 x 3/8
2	Lock Motor Asm.
4	Lock Lever Asm.
5	Plate
6	Bracket, Door Switch
7	Screw No.10-32×1/2
8	SCREW
9	Lock Box
10	Actuator Pin
12	Screw No.4-40×11/16
13	Switch, Micro
14	Insulator
15	Spring, Lock
15	Wire Harness- Clock/Oven Control
15	Faston Terminal, (Thermal Fuse)
15	Wire Harness (Sensor)
15	Faston Terminal, (3/16)
15	Flag Terminal
15	Eyelet Terminal
15	WP285432 Whirlpool Terminal
15	Faston Terminal, (xPart Not Shown On Illustration)
