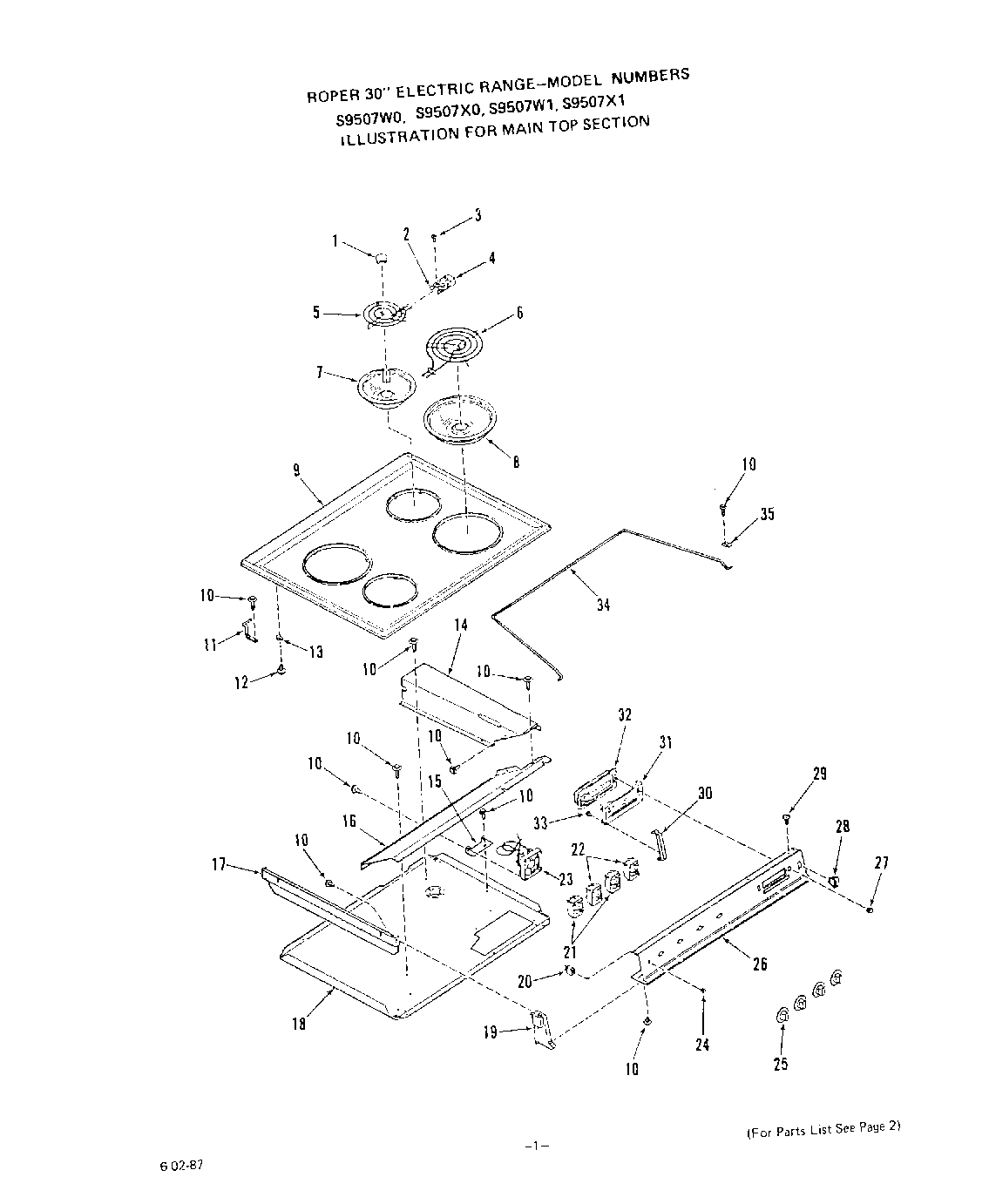

S9507W0 02 – MAIN TOP

Products

Position	Product
1	Medallion (2 Req) All 2101 Models
2	Bracket-Term. Block (2 Req) All 2101 Mod.
3	Screw 7-32×5/16“(2 Req) All 2101 Models
4	Terminal Blcok w/Wires
5	6“ Surface Element (1 Req) All 2101 Models
6	8“ Surface Element (1 Req) All 2101 Mod.
8	Burner Bowl 8“
9	Almond 2426L1A, 2A Models
9	White 2426W1A, 2A Models
9	Main Top (Chrome)
10	Screw 10-16×7/16“
11	Hinge-Main Top (Right)
11	Hinge-Main Top (Left)
12	Screw 10-32×5/16“
13	Bracket-Hinge
14	Fan Duct
15	Fan Bracket
16	Wire Cover
17	Extension-Burner Box Side
18	Burner Box Bottom
19	End Cap-Manifold Panel (Left)
19	End Cap-Manifold Panel (Right)
20	Light-Indicator (Surface)
21	Left Front & Right Rear
22	Right Front & Left Rear
23	Fan
24	Lens-Indicator Light
25	Knob-Infinite
26	Control Panel
27	Knob-Clock
28	Switch-Oven Light
29	Screw-10-32×1/2“
30	Bracket-Clock
31	D97570
32	D97570
32	D97571
33	Screw 6-32×5/16“
34	Rod-Main Top Support
35	Installation Guide
35	Use & Care
35	Repair Parts List
35	Clamp
