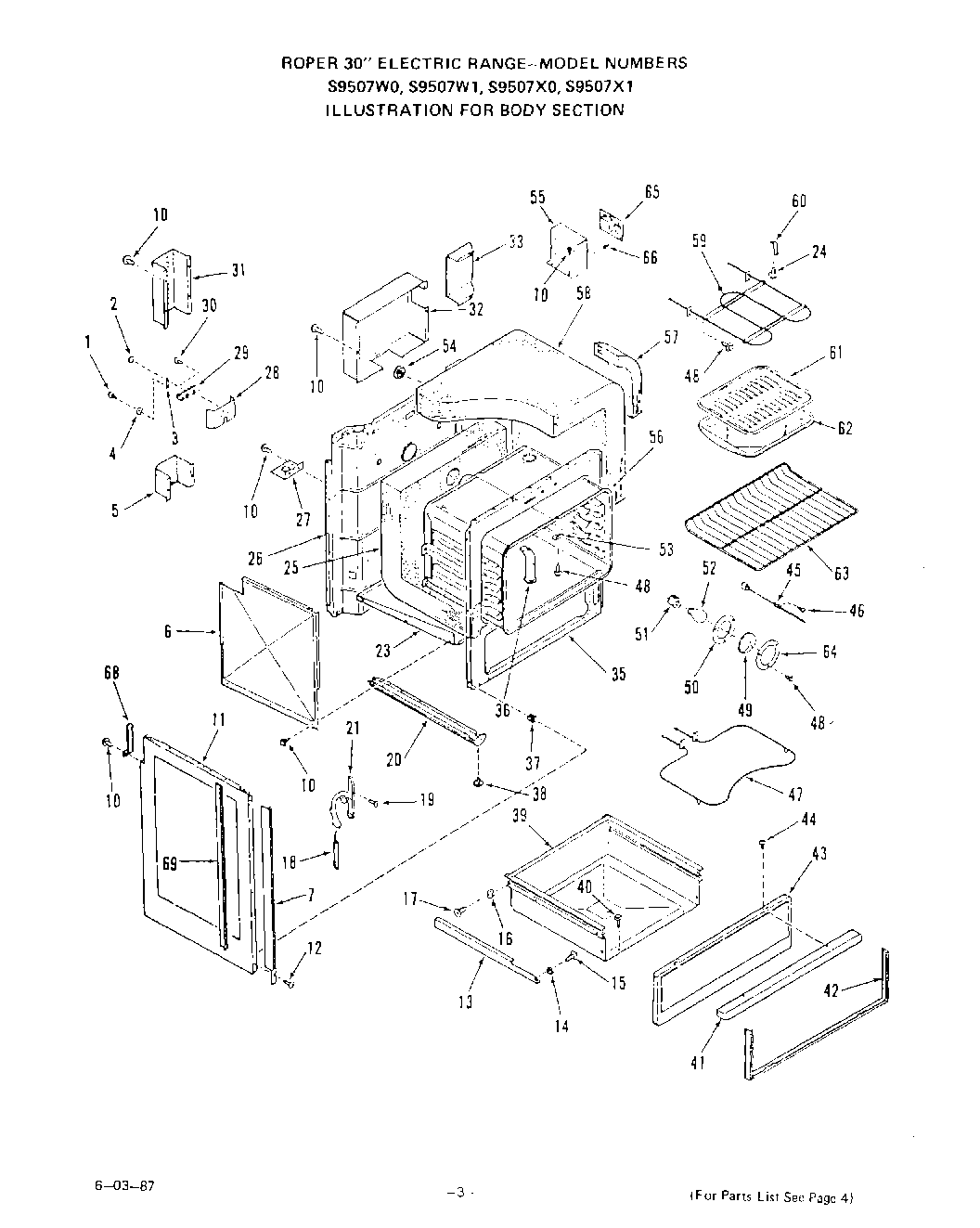

S9507W0 03 – BODY

Products

Position	Product
1	Screw 10-32×7/16“
2	Hex Nut 10-32
3	Ground Strap
4	Washer
5	Wire Shield-Lower
6	Insulation Retainer (Left)
6	Insulation Retainer (Right)
7	Trim-Side (Right)
7	Trim-Side (Left)
11	Body Side (Left)
11	Body Side (Right)
12	Screw 10ABx1/2“
13	Support-Storage Drawer (Lt. or Rt.)
14	Front Slide Block-(Lt. or Rt.)
15	Screw 10-32×17/32“
16	Rear Slide Block – Lt. or Rt.
17	Screw 8 – 32 x 3/8“
18	Spring-Oven Door (Lt. or Rt.)
19	Screw
20	24062A, 24262A Models
21	Oven Door Hinge (Right)
21	Oven Door Hinge (Left)
23	window, oven door
25	Insulation-Oven Back & Bottom
26	Main Back
27	Range Service Mounting Plate
28	Insulation-Service Cord
29	Junction Block
30	Screw 10-32×1“
31	Shield-Upper Wire
32	Upper Wire Shield
33	Wire Shield
35	Front Frame
36	Vent Tube
37	BURNER RECEPTACLE KIT
38	Leg Leveler (4 Req)
39	Storage Drawer
41	Handle
42	Frame-Front Panel
43	Front Panel-Storage Drawer
44	Screw-10-32×1/2“
45	Sensor
46	Screw
47	Bake Element (Volt.(Optional))
47	Bake Element (Volt)
48	Screw 10-16×7/16“
49	Lens-Oven Light
50	Gasket-Lens
51	Holder-Oven Light Bulb
52	Oven Lamp Bulb
53	Cover
54	Snap Bushing
55	Relay Cover
56	Oven Body
57	Insulation (Rt. or Lt.)
58	Insulation-Oven Top & Sides (1 Piece)
59	WPL 334368
59	WPL 334369
60	Support-Broiler Element
61	WPL 326297
62	WPL 331592
63	Oven Rack (2 Req)
64	Orifice, Burner (Type 4 (Butane))
65	D97570
65	D97571
66	Spacer
68	WPL 337249
69	Extension Side Trim
