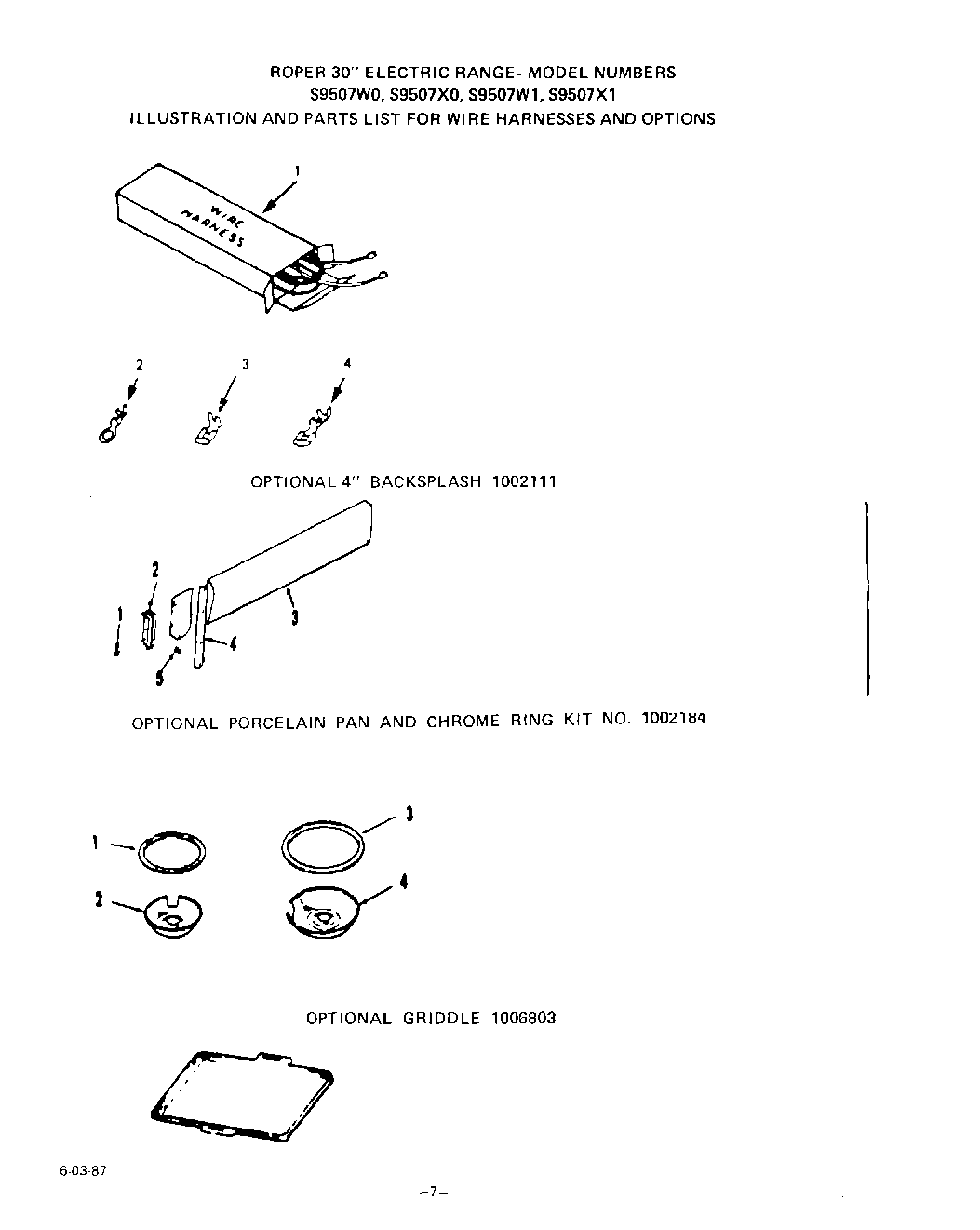

S9507W0 06 – WIRE HARNESS, LIT/OPTIONAL

S9507W0 06 – WIRE HARNESS, LIT/OPTIONAL

Written by

in

S9507W0 06 – WIRE HARNESS, LIT/OPTIONAL

Products

Position	Product
1	Wire Harness (Clock/Control)
1	Wire Harness (Main)
1	Wire Harness (Sensor)
1	Set-On Griddle
1	Small Ring (3 Req)
1	Screw 6-32×3/8“
1	Main Top
2	End Cap
2	Eyelet Terminal
2	Small Pan (3 Req)
3	Flag Terminal
3	Large Ring (2 Req)
3	Backsplash
4	Faston Terminal (3`16“)
4	Instruction Sheet
4	Pan and Ring Kit Complete
4	Large Pan (2 Req)
4	Faston Terminal (1/4“)
4	Backplash Support
5	xSheet Instruction
5	Screw 10-16×7/16“
