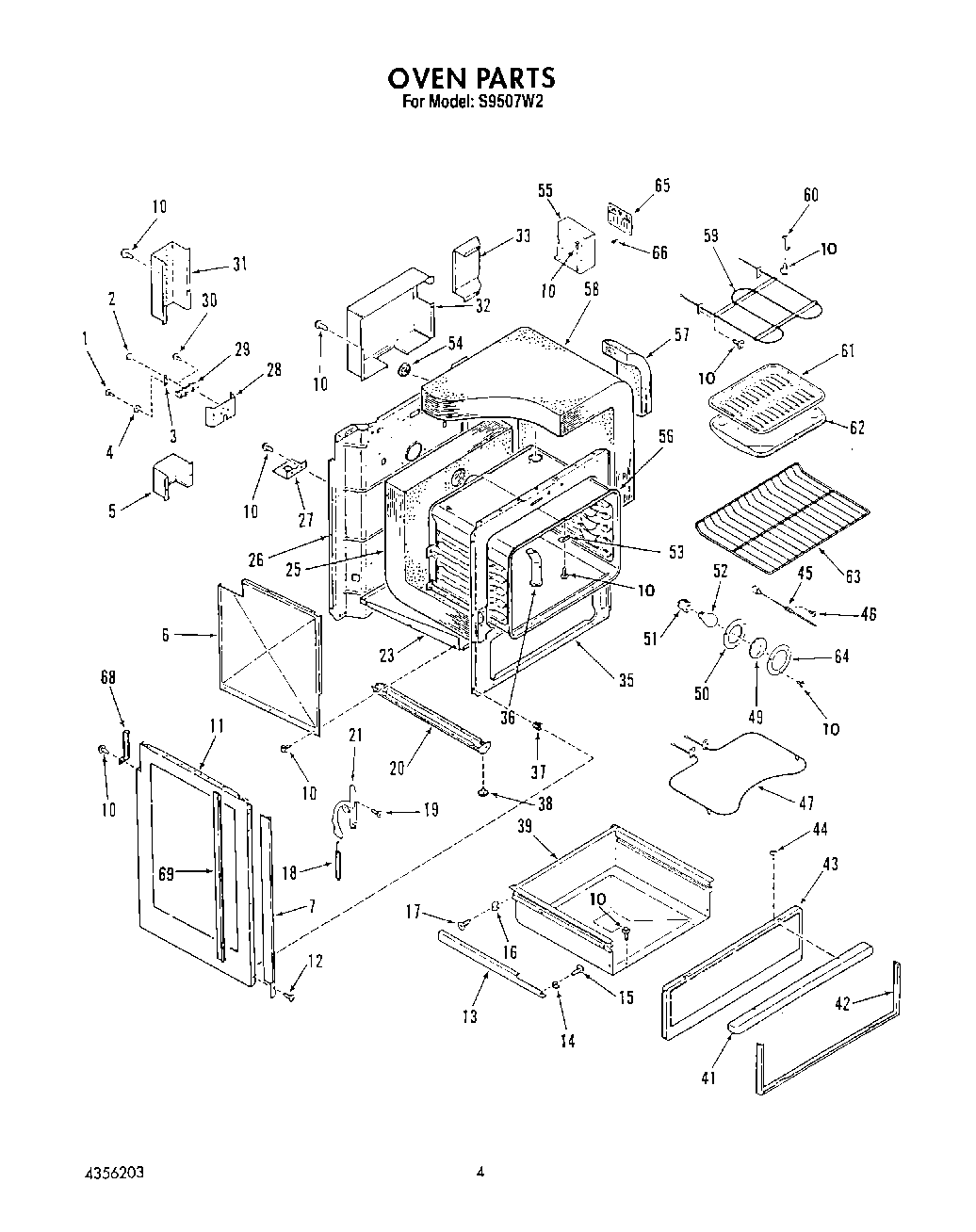

S9507W2 04 – OVEN

Products

Position	Product
1	Screw No.10-32×7/16
2	WP776338 Whirlpool Compactor Nut
3	Strap, Ground
4	Washer
5	Wire Cover, Lower
6	Retainer, Insulation (Lt/Rt)
7	Trim, Side (Right)
7	Trim, Side (Left)
10	SCREW
11	Side Panel (Left)
11	Side Panel (Right)
12	WP308685 Whirlpool Microwave Screw
13	Support, (Lt/Rt), Storage Drawer
14	Front Slide Block, Lt/Rt
15	Screw, No.10-32 x 17/32
16	Rear Slide Block (Lt/Rt)
17	Screw, No.8-32 x 3/8
18	Spring, Oven Door (Lt/Rt)
19	Screw
20	Base W/Levelers (Lt/Rt)
21	Hinge-Oven Door (Right)
21	Hinge-Oven Door (Left)
23	Retainer, Insulation, Bottom
25	Insulation, Back And Bottom
26	Rear Cover
27	Service Plate
28	Insulation, Service Cord
29	WP8203546 Whirlpool Terminal Block
30	Screw, No.10-32×1
31	Wire Shield
32	Upper Wire Shield
33	Shield, Wire
35	Frame, Front
36	Vent Tube
37	Nut-Expansion (6)
38	Leg Leveler (4)
39	Drawer, Storage
41	Handle
42	Frame, Drawer
43	Panel, Drawer Front
44	Screw No.10-32×1/2
45	Sensor
46	Screw
47	Element, Bake (240 Volt)
47	Bake Element (208 Volt (Opt))
49	Lens, Oven Light
50	Gasket, Lens
51	W10856866 Whirlpool Light Socket
52	RANGE ONLY 40W 120V APPL BULB
53	Cover
54	Snap Bushing
55	Relay Cover
56	Oven Cavity
57	Insulation
58	Insulation, Wrap
59	WP4334925 Whirlpool Broil Element
60	Support, Broil Element
61	4396923 Whirlpool Broil Pan Set Gray Porcelain
63	Rack, Oven
64	Retainer, Lens
65	Relay, Circuit Board
66	Spacer
68	WPL 4337998
69	WPL 4336565
