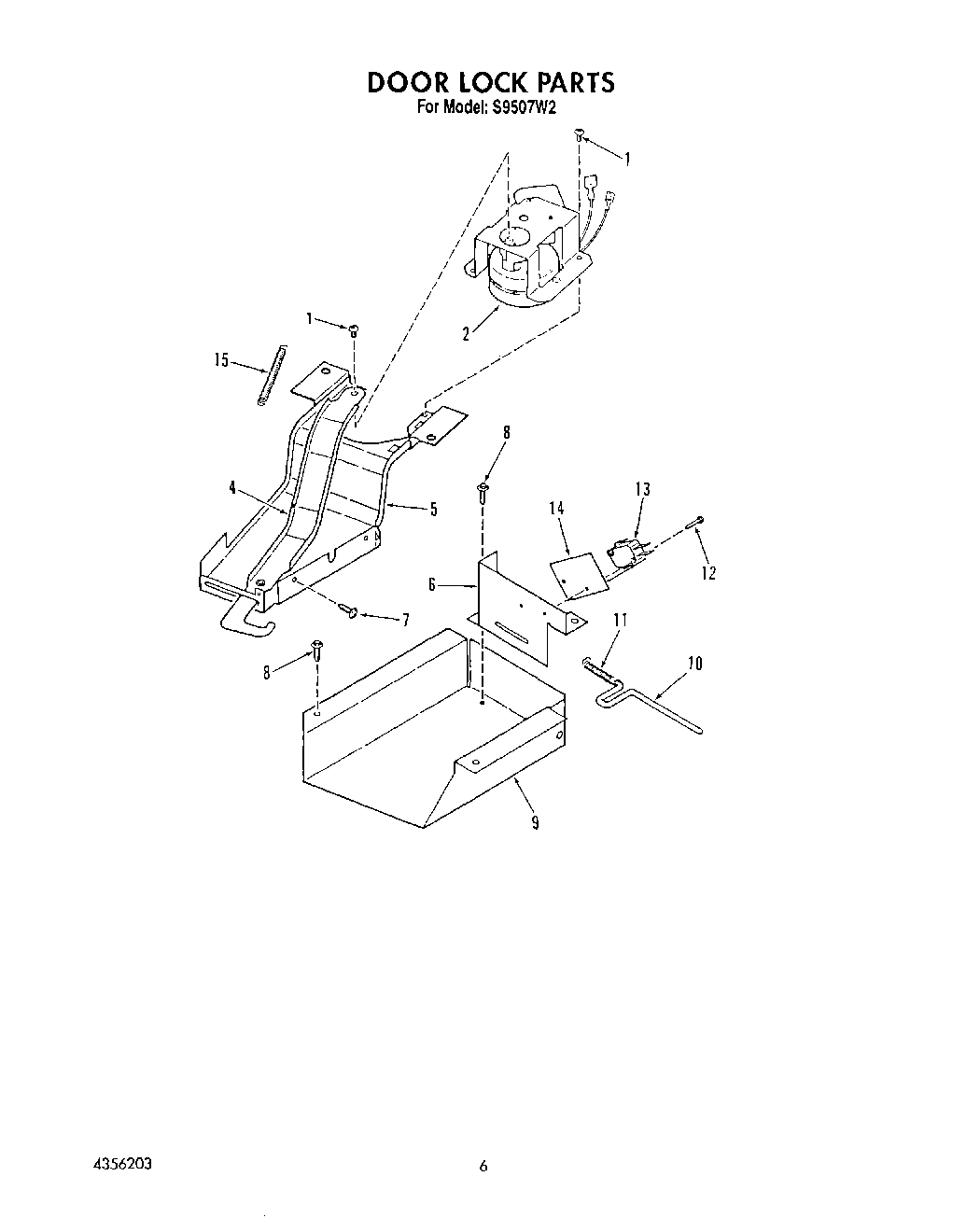

| 1 | Screw, No.8-32 x 3/8 |
| 2 | Lock Motor Asm. |
| 4 | Lock Lever Asm. |
| 5 | Plate |
| 6 | Bracket, Door Switch |
| 7 | Screw No.10-32x1/2 |
| 8 | SCREW |
| 9 | Lock Box |
| 10 | Actuator Pin |
| 12 | Screw No.4-40x11/16 |
| 13 | Switch, Micro |
| 14 | Insulator |
| 15 | Spring, Lock |
| 15 | Wire Harness- Clock/Oven Control |
| 15 | Faston Terminal, (Thermal Fuse) |
| 15 | Wire Harness (Sensor) |
| 15 | Faston Terminal, (3/16) |
| 15 | Flag Terminal |
| 15 | Eyelet Terminal |
| 15 | WP285432 Whirlpool Terminal |
| 15 | Faston Terminal, (xPart Not Shown On Illustration) |
