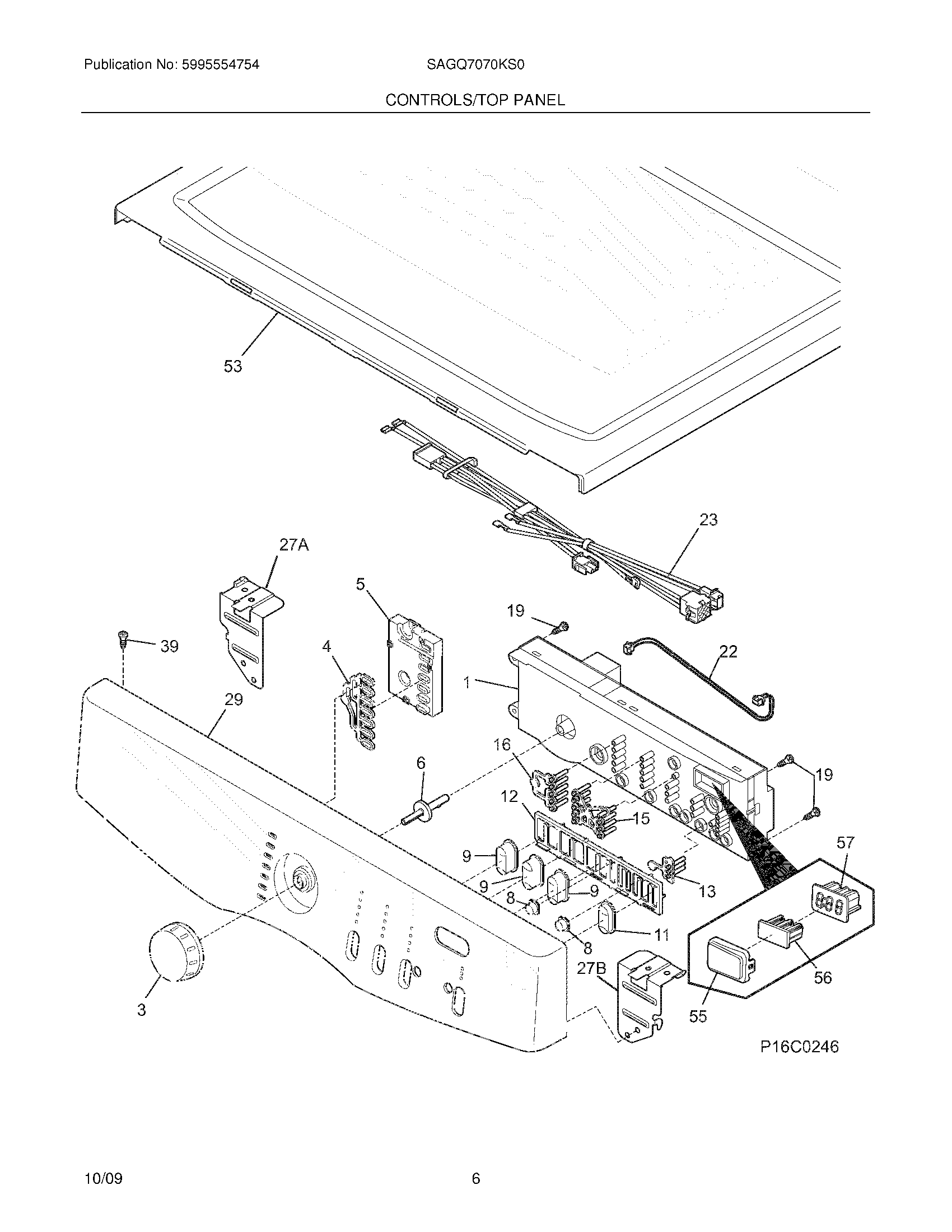

SAGQ7070KS0 07 – CONTROLS/TOP PANEL

SAGQ7070KS0 07 – CONTROLS/TOP PANEL

Written by

in

SAGQ7070KS0 07 – CONTROLS/TOP PANEL

Products

PositionProduct
NIWCI 134910200
1137070800 Frigidaire Electrical Control Net
3WCI 134551210
4WCI 134553100
5134556500NH Frigidaire UIB
6WCI 134347700
8WCI 134555510
9WCI 134553410
11WCI 134595610
12WCI 134553300
13WCI 134557501
15WCI 134552800
16WCI 134600000
19134402900 Frigidaire Screw
22WCI 134602100
23WCI 134710300
27B134711000 Frigidaire Bracket
27A134710900 Frigidaire Bracket Assembly
29WCI 134892400
39131205100 Frigidaire Screw
53137371700 Frigidaire Panel
55WCI 134553200
56WCI 134557300
57WCI 134503300
