SAND700.C 02 – Cavity Assembly

SAND700.C 02 – Cavity Assembly

Written by

in

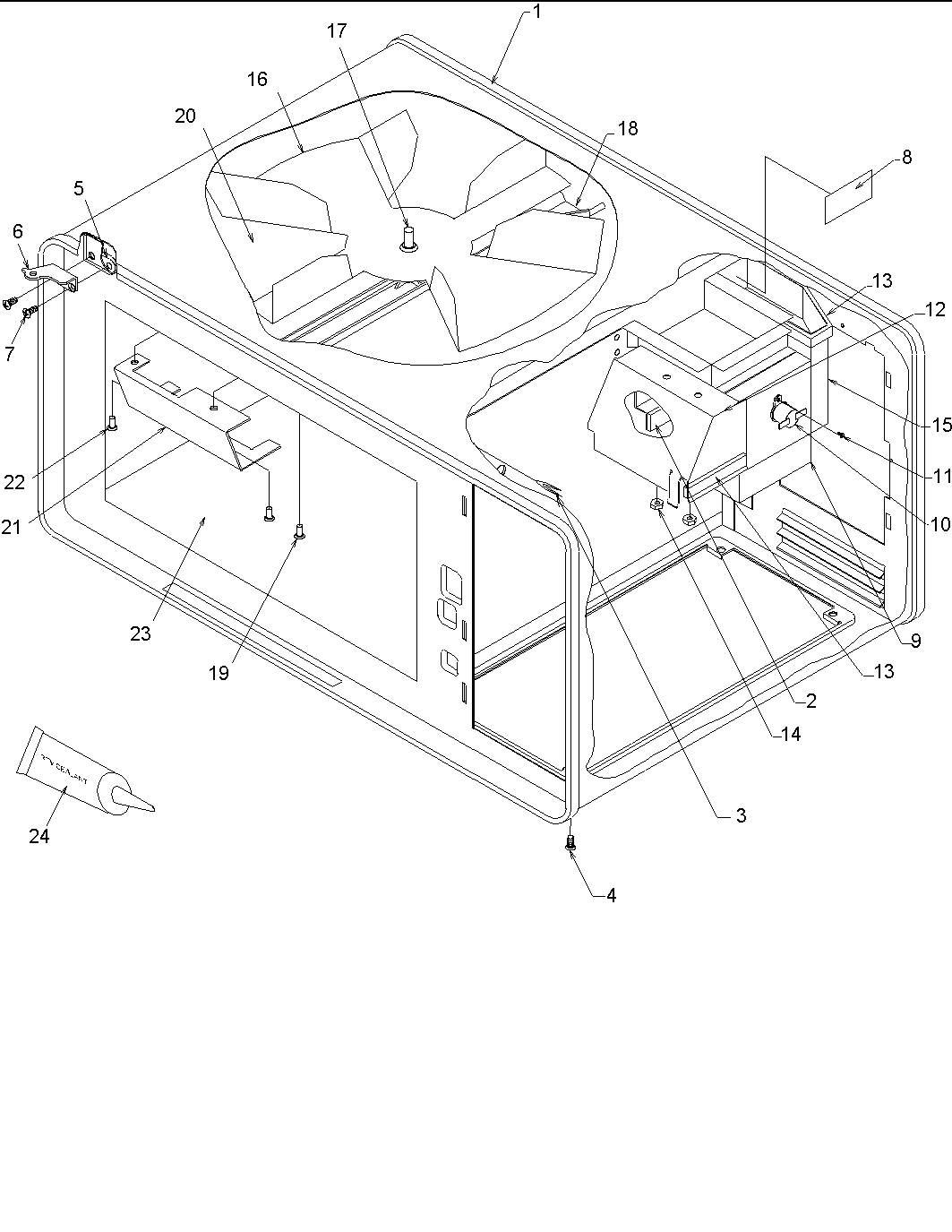

SAND700.C 02 – Cavity Assembly

Products

PositionProduct
1ASSY, CAVITY M77D180
2MAY 24642P01
3MAY B5662304
4RIVET-PLASTCx
5MAY 45010P01
6BRKT TOP
7No.6 FLAT HD MACHINE SCREW
8MAY 10744601
9MAY 10794403
10PROTECTOR,THERMAL 180C 25 AMP
11MAY 35785P01
12MAY 3000004301
13MAY 10839705
14MAY 5014-J
15REAR AIR DUCT 1400UTC
16KIT,STIRRER BLADE
17MAY M2D678
18MAY M20D319
19MAY 5524122001
20STIRRER COVER M45D50
21MAY 3010017601
22.20 DIA PUSH RIVET POLYPROPYLE
23MAY M50D45
24MAY M0275598
