SAV4655EWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY – Aparts

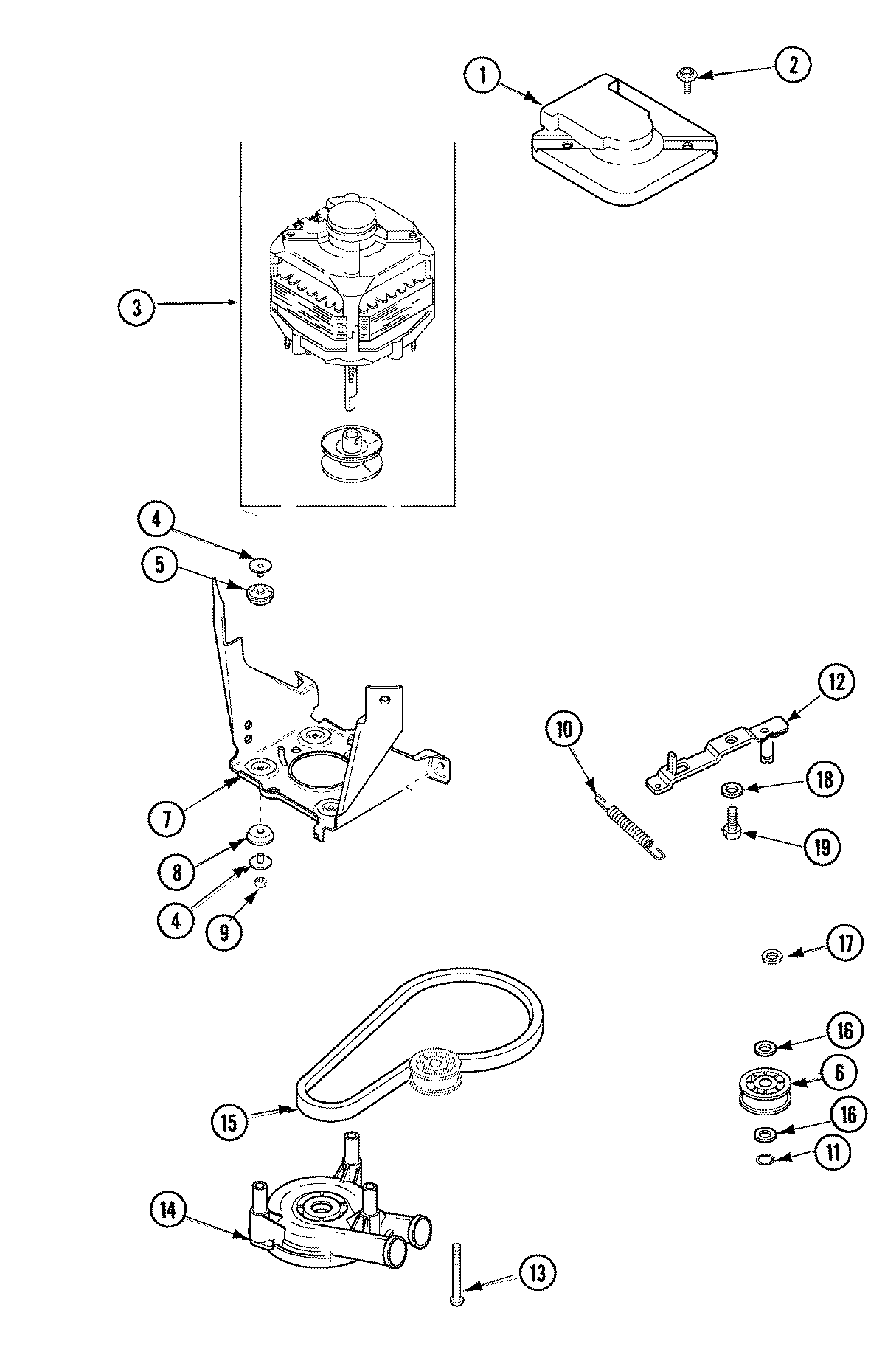

SAV4655EWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY

Products

Position	Product
1	MAY 40112301
2	WP3390631 Whirlpool Screw
3	MAY 27001055
4	MAY 40053701
5	MAY 40053801
6	MAY 40045001
7	MAY 40015502
8	MAY 40054301
9	MAY 40095101
10	MAY 40061401
11	MAY 23748
12	WPW10139757 Whirlpool Nut
12	MAY 27001028
13	MAY 40063701
14	KIT ASSY PUMP-COMP-(VIB-WELDED
15	WP27001006 Whirlpool Drive Belt
16	MAY 52549
17	MAY Y504082
18	MAY 40054701
19	MAY 40038901
