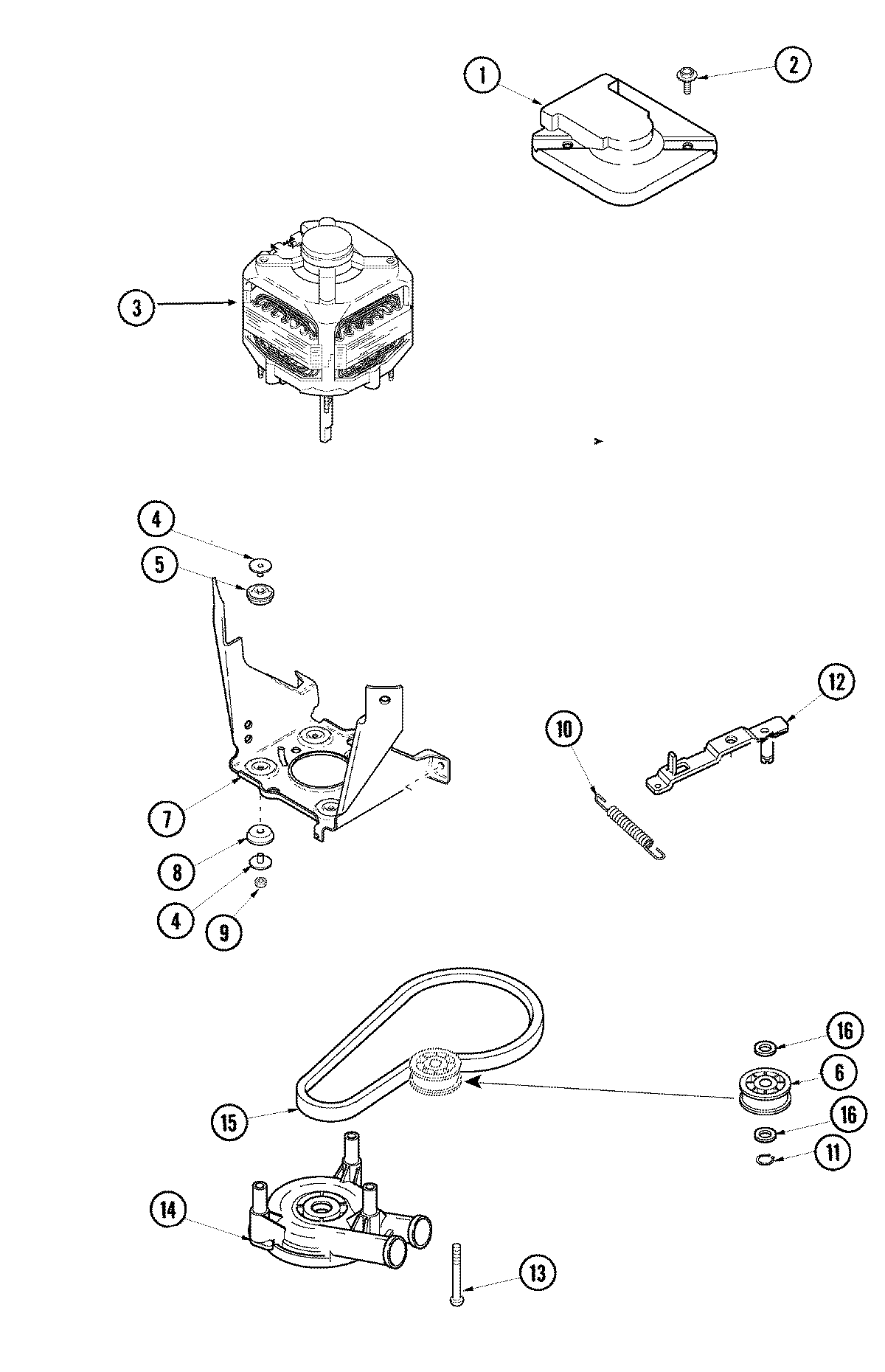

SAV515DAWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY
Written by
in
SAV515DAWW 04 – MOTOR, PUMP AND IDLER ASSEMBLY
Products
Position
Product
1
MAY 40112301
2
WP3390631 Whirlpool Screw
3
MAY 27001055
4
MAY 40053701
5
MAY 40053801
6
MAY 40045001
6
MAY 40038901
6
WPW10139757 Whirlpool Nut
7
MAY 40015502
8
MAY 40054301
9
MAY 40095101
10
MAY 40061401
11
MAY 23748
12
MAY 27001028
13
MAY 40063701
14
KIT ASSY PUMP-COMP-(VIB-WELDED
15
WP27001006 Whirlpool Drive Belt
16
MAY 52549
←
