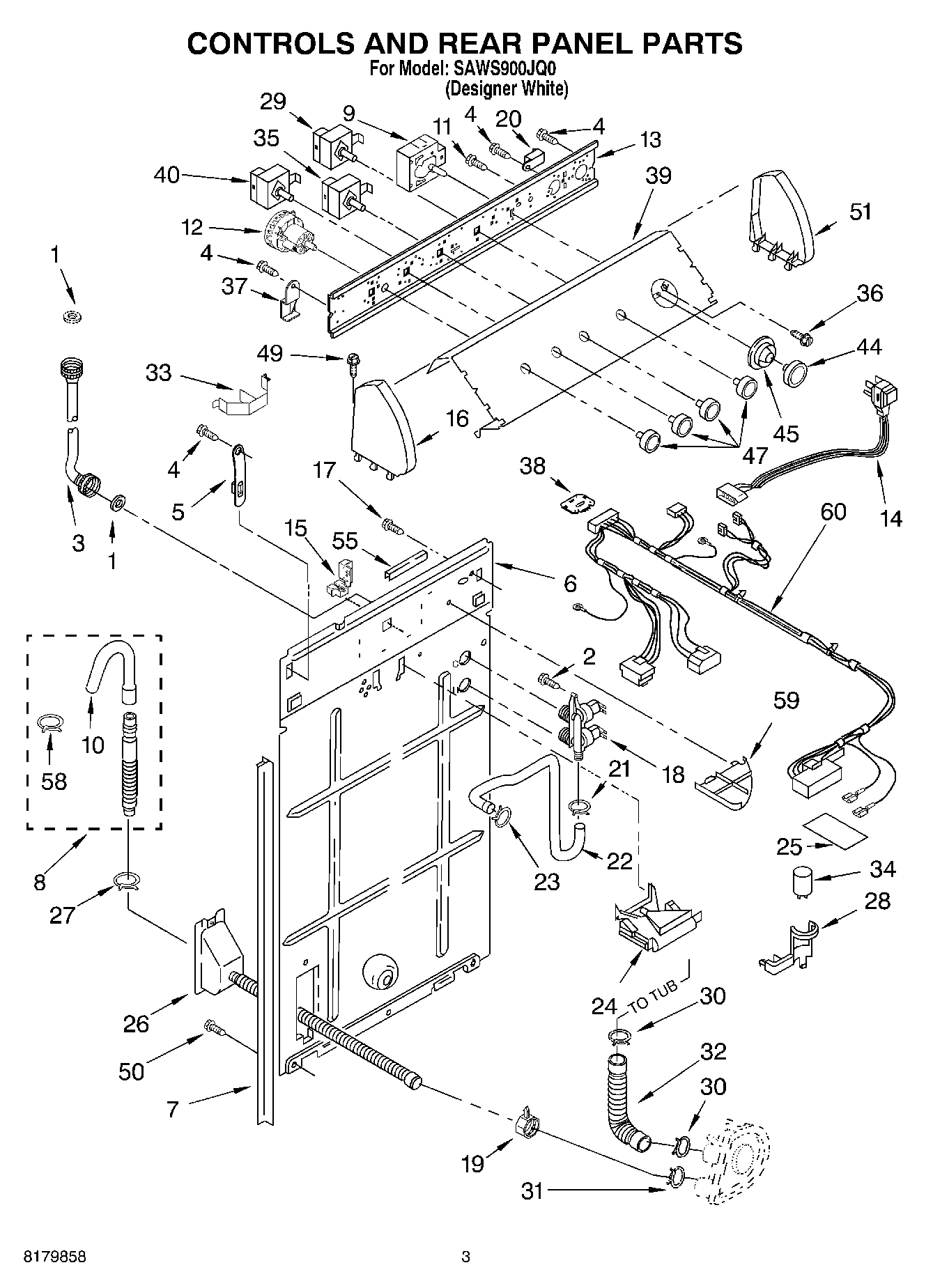

SAWS900JQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	WP90767 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3357027 Whirlpool Nozzle Assembly
11	3400073 Whirlpool Screw
12	Switch, Water Level
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
17	WP3351614 Whirlpool Screw
18	WP3979346 Whirlpool Water Inlet Valve
19	Clamp, Hose
20	WP694419 Whirlpool Buzzer Adjuster
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Shield, Capacitor
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	Clip, Capacitor
29	W10168264 Whirlpool Cycle Switch
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	WP8572720 Whirlpool Capacitor
35	Switch, Cycle
36	WP3400064 Whirlpool Screw
37	Retainer, Harness
38	Control, ETC
39	Panel, Console
40	WPW10168257 Whirlpool Cycle Switch
44	WP3364293 Whirlpool Timer Knob
45	WP3957841 Whirlpool Dial
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	279960 Whirlpool Endcap Assembly
55	Edge Protector
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WPL 3956124
