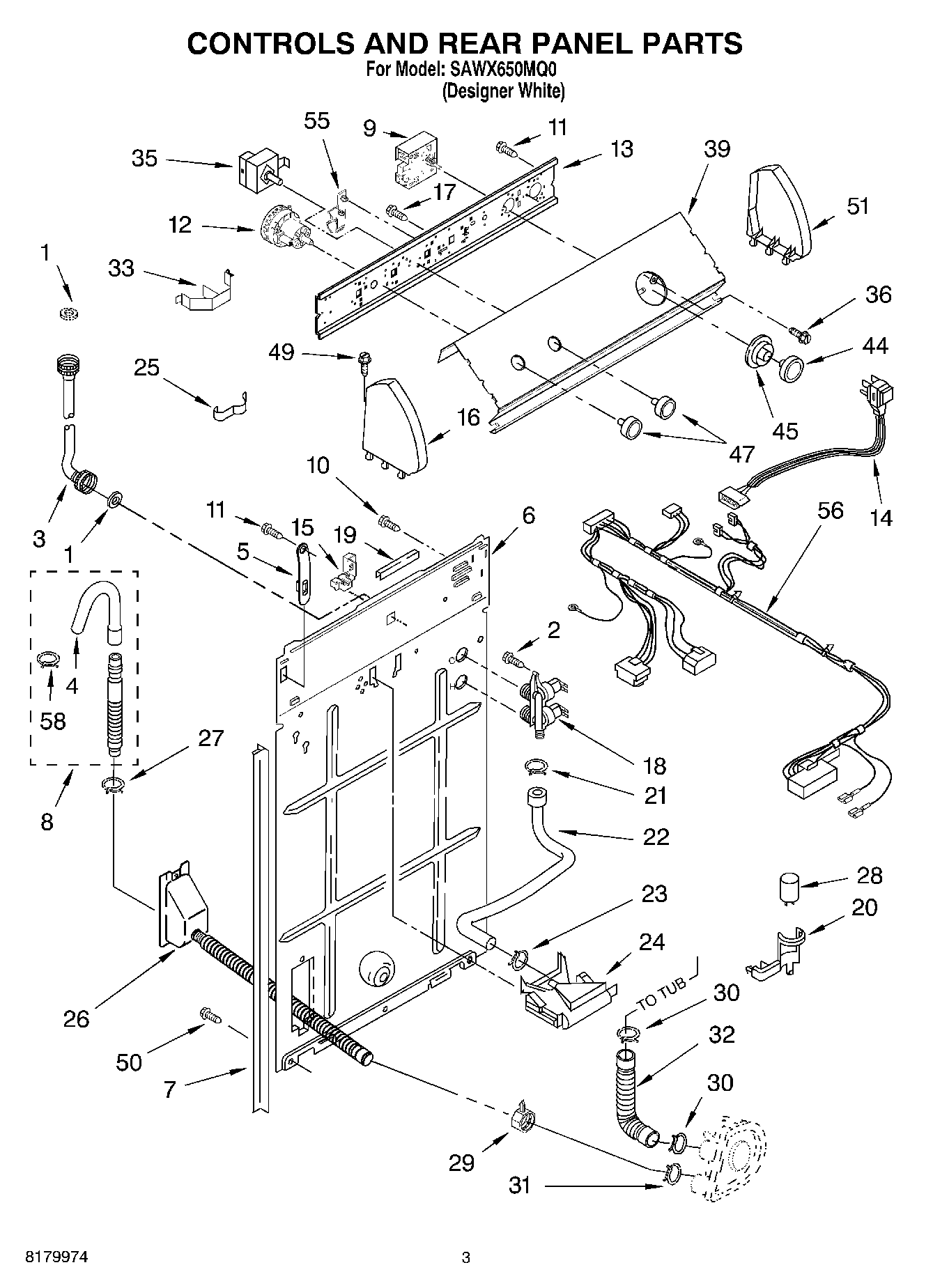

SAWX650MQ0 02 – CONTROL AND REAR PANEL PARTS

SAWX650MQ0 02 – CONTROL AND REAR PANEL PARTS

Written by

in

SAWX650MQ0 02 – CONTROL AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9WP3948852 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
173400073 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
19Edge Protector
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
258528351 Whirlpool Clip
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28CAPACITOR
29Clamp, Hose
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
39Panel, Console
44W10807860 Whirlpool White Control Knob
45WP3957841 Whirlpool Dial
47WP3957796 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51279960 Whirlpool Endcap Assembly
55Retainer, Harness
56Wiring Harness (For Detail See Pages 9 & 10)
58WP3357331 Whirlpool Clamp
