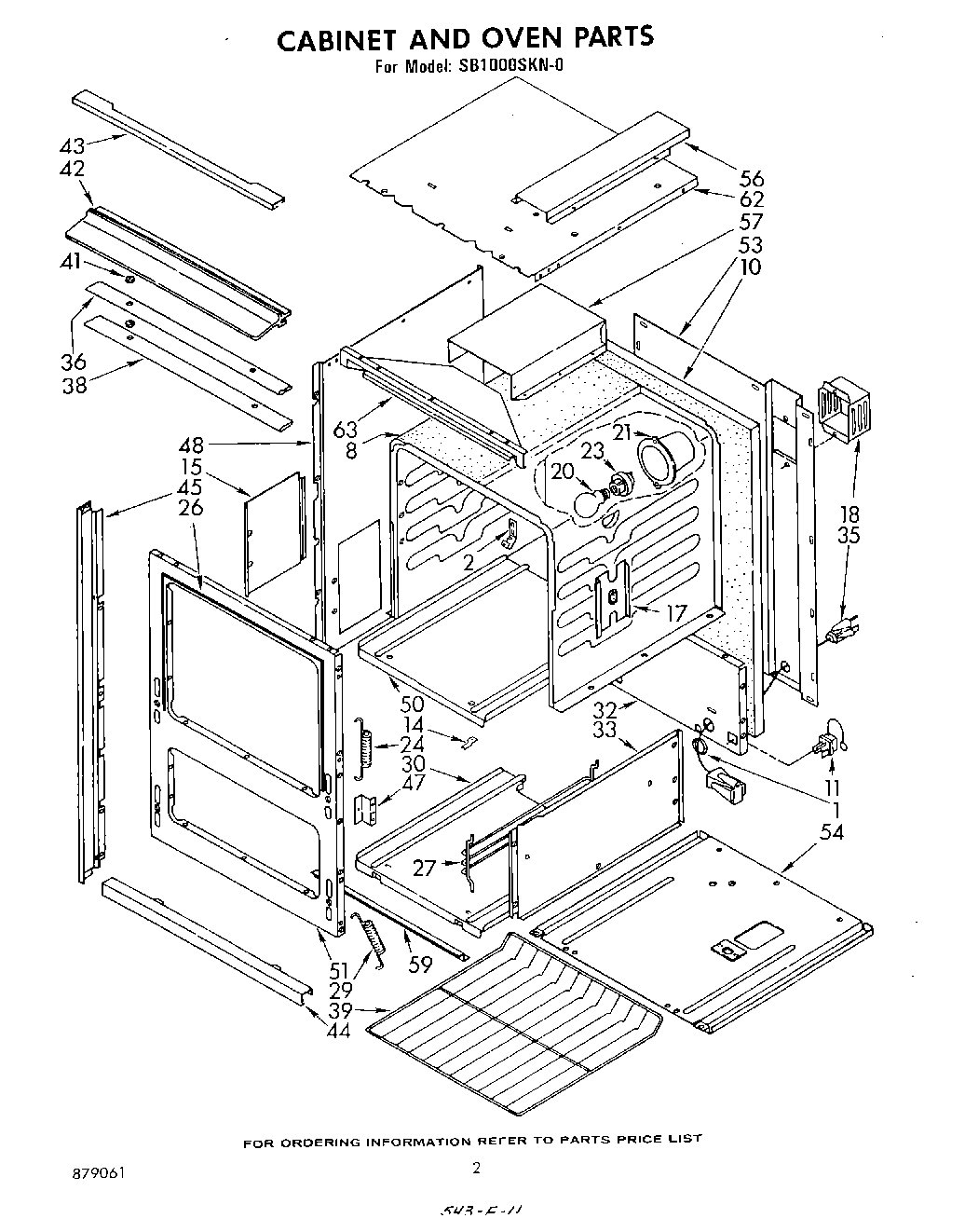

SB1000SKN0 02 – SECTION

Products

Position	Product
1	Bushing, Snap
2	98005642 Whirlpool Clip
8	WPW10208653 Whirlpool Insulation
11	Plug, Male Receptacle
14	Clip, Oven Bottom Plate (2)
15	Cover, Hinge
17	Shield, Insulation
18	Cover, Light Socket
20	RANGE ONLY 40W 120V APPL BULB
21	Box, Oven Light
23	Socket, Oven Light
24	Spring, Oven Door (2)
26	Seal, Oven Door (Side (2))
26	Seal, Oven Door (Top (2))
27	Runner, Broiler Rack (2)
29	Spring, Broiler Door (2)
30	Bottom, Broiler Compartment
32	Back, Broiler Compartment
33	Side, Broiler (Right Side)
33	Side, Broiler (Left Side)
35	Cord, Extension
36	Louver, Vent Center
38	Louver, Vent Bottom
39	Rack, Oven (2)
41	Spacer, Vent Grille (4)
42	Trim, Control Panel Bottom
43	Trim, Top
44	Trim, Bottom
45	Trim, Side (Right)
45	Trim, Side (Left)
47	Bracket, Oven Door Spring (2)
48	Panel, End (Left Side)
48	Panel, End (Right Side)
50	Plate, Oven Bottom
51	Front, Main
53	Back, Main
54	Base, Main
56	Cover, Wire (Top)
57	Box, Vent
59	Support, Bottom Plate
62	Cover, Insulation
63	Instructions, Installation
63	Diagram, Wiring
63	Booklet, Use & Care
63	List, Repair Parts
63	Extension, Vent Box
