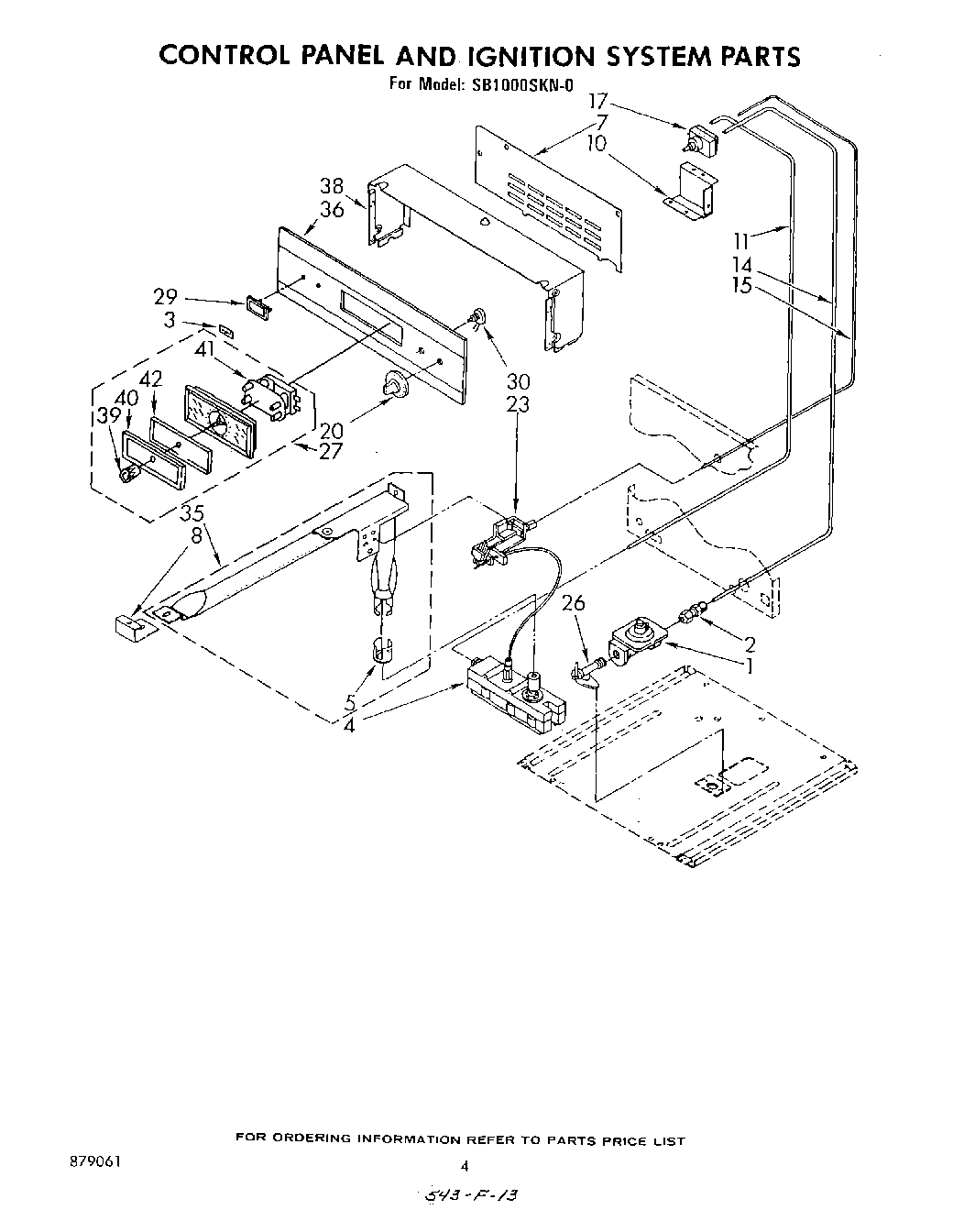

| 1 | Regulator, Pressure |
| 2 | Fitting Flange 1/2 x 3/8 |
| 3 | Inlay, Nameplate |
| 4 | Valve, Oven Lighter Safety |
| 5 | Shutter, Oven Burner Air |
| 7 | Back, Control Box |
| 8 | Support, Oven Burner (Front) |
| 10 | Support, Oven Control |
| 11 | Tubing, Oven Control Safety Valve |
| 14 | Tubing, Regulator Oven Control |
| 15 | Tubing, Control/ Pilot |
| 17 | Control, Oven |
| 20 | Dial, Oven Control |
| 23 | Lighter, Oven Burner |
| 26 | Valve, Cut Off |
| 27 | Clock, Regular |
| 29 | Plate, Name |
| 30 | Switch, Oven Light |
| 35 | Burner, Oven |
| 36 | Panel, Control |
| 38 | Box, Control |
| 39 | Knob (1) |
| 40 | Bezel |
| 41 | Motor |
| 42 | Glass, Timer |
