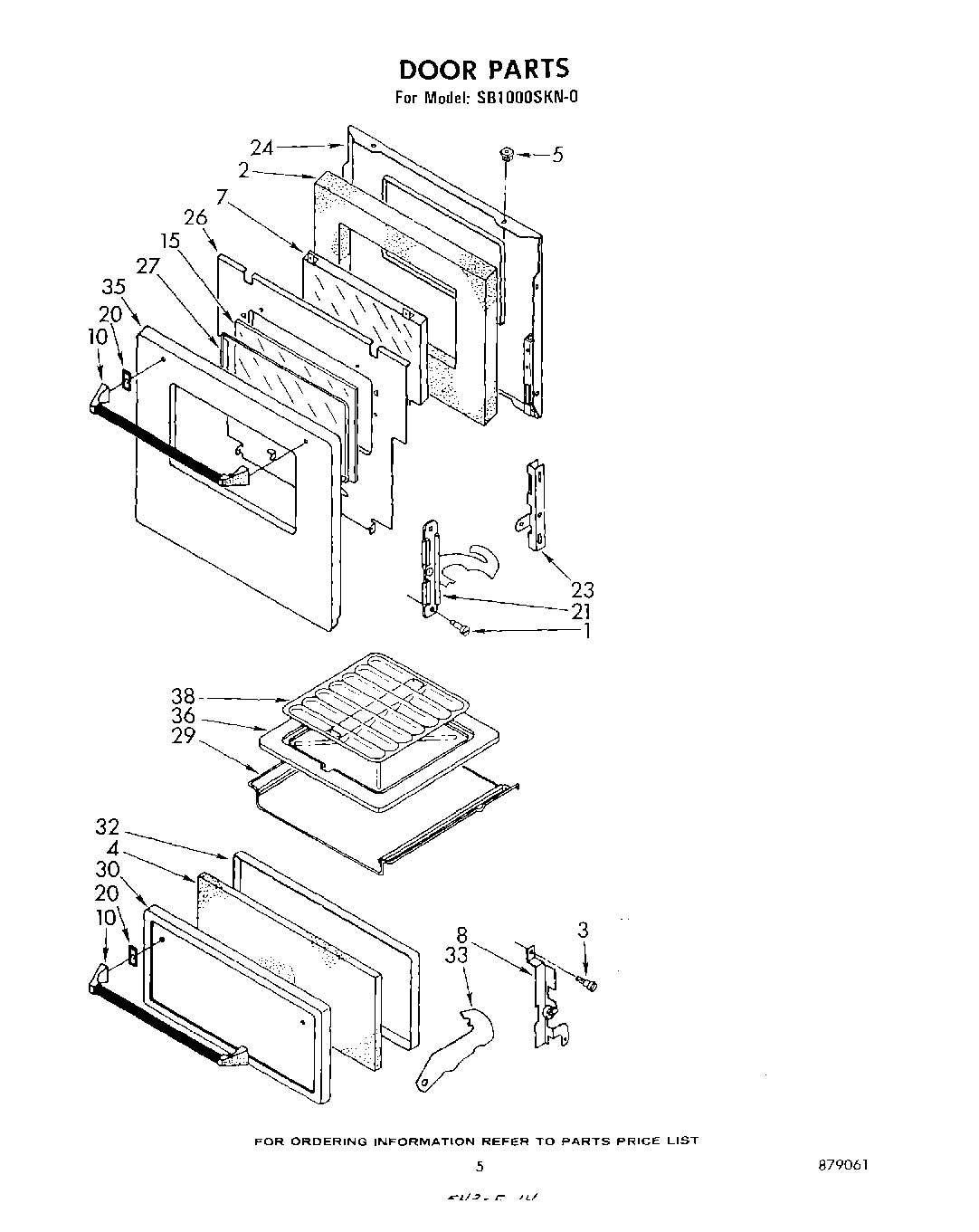

| 1 | Bolt, Shoulder 10-24 x 7/16 (2) |
| 2 | WPW10208653 Whirlpool Insulation |
| 3 | Bolt, Shoulder 10-24 x 7/16 |
| 4 | Insulation, Broiler Door |
| 5 | 98460 Whirlpool Nut |
| 7 | Glass, Oven Door Package |
| 8 | Support, Broiler Door Hinge (Right Side) |
| 8 | Support, Broiler Door Hinge (Left Side) |
| 10 | Handle Door (Oven & Broiler) |
| 15 | Glass, Oven Door Outside |
| 20 | Spacer, Door Handle (2) |
| 21 | Hinge, Oven Door (2) |
| 23 | Support, Oven Door (Right Side) |
| 23 | Support, Oven Door (Left Side) |
| 24 | Lining, Oven Door |
| 26 | Baffle, Door |
| 27 | Bezel, Oven Door |
| 29 | Rack, Broiler Pan |
| 30 | Panel, Broiler Door |
| 32 | Lining, Broiler Door |
| 33 | Hinge, Broiler Door (2) |
| 35 | Panel, Oven Door (Almond) |
| 36 | Pan, Broiler |
| 38 | Tray, Broiler Pan |
