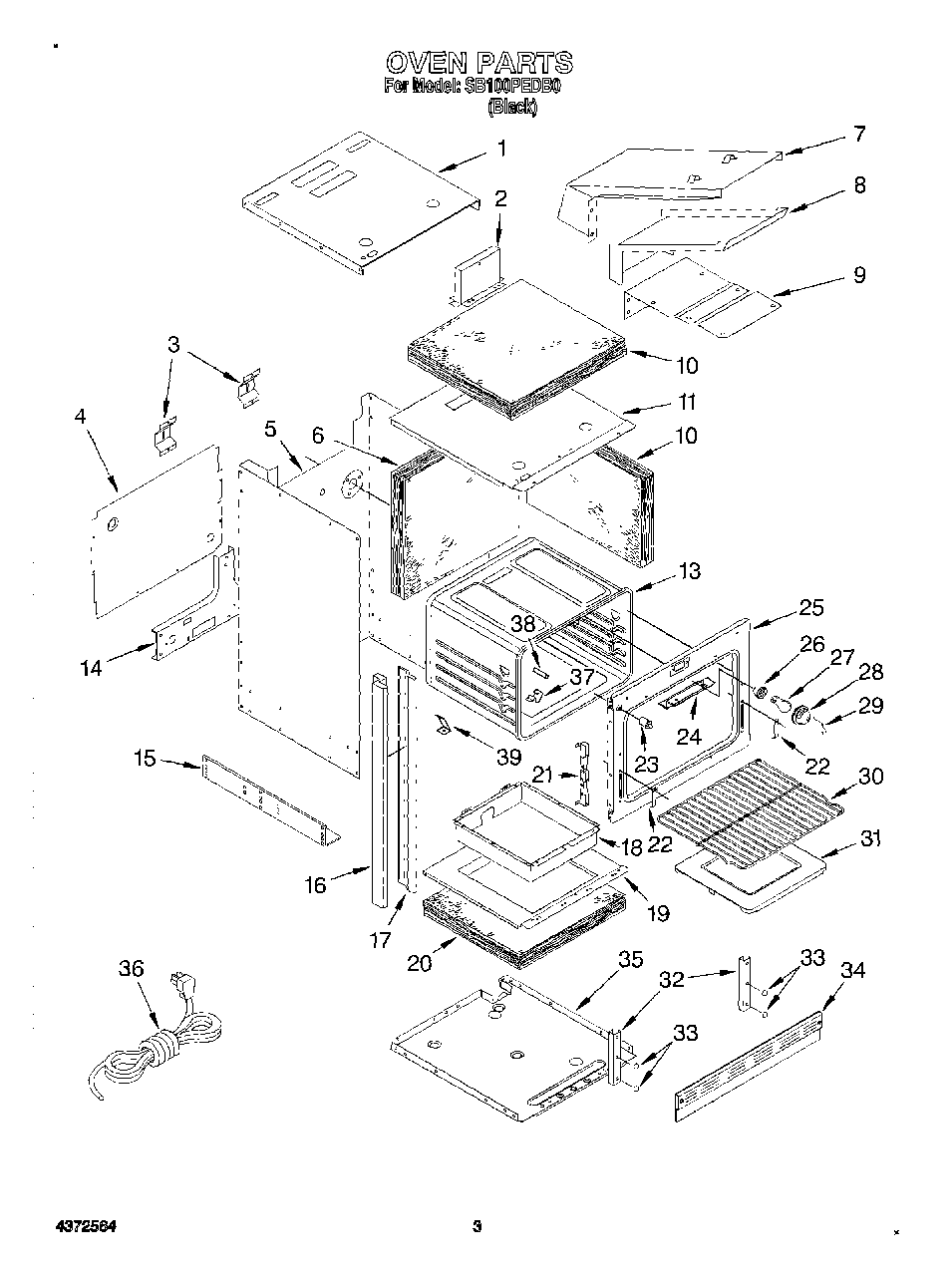

SB100PEDB0 03 – OVEN

Products

Position	Product
1	Top, Wrapper
2	Adaptor, Flue
3	Spring, Oven
4	Cover, Wire
5	Wrapper, Back And Sides
6	Insulation, Back
7	Shield, Flue Top
8	Flue
9	Shield, Flue Bottom
10	Insulation, Top & Sides
11	Shield, Insulation
13	Liner, Oven
14	Bracket, Safety Valve
15	Support, Side
16	Trim, Outer
17	Trim, Inner (Left Hand)
17	Trim, Inner (Right Hand)
18	Box, Oven Burner
19	Shield, Base
20	Insulation, Bottom
21	Channel, Hinge
22	Retainer, Door
23	Switch, Door
24	Shield, Vent
25	Frame, Front
26	Socket, Lamp
27	RANGE ONLY 40W 120V APPL BULB
28	Lens, Light
29	Retainer, Lens
30	Rack, Oven (2)
31	Bottom, Oven
32	Support, Front (2)
33	Spacer, Rubber
34	WPL 4372503
35	Base, Wrapper
36	Cord, Power
37	Clip, Thermo Bulb
38	Cover, Thermo Bulb
39	Spacer, Oven (2)
