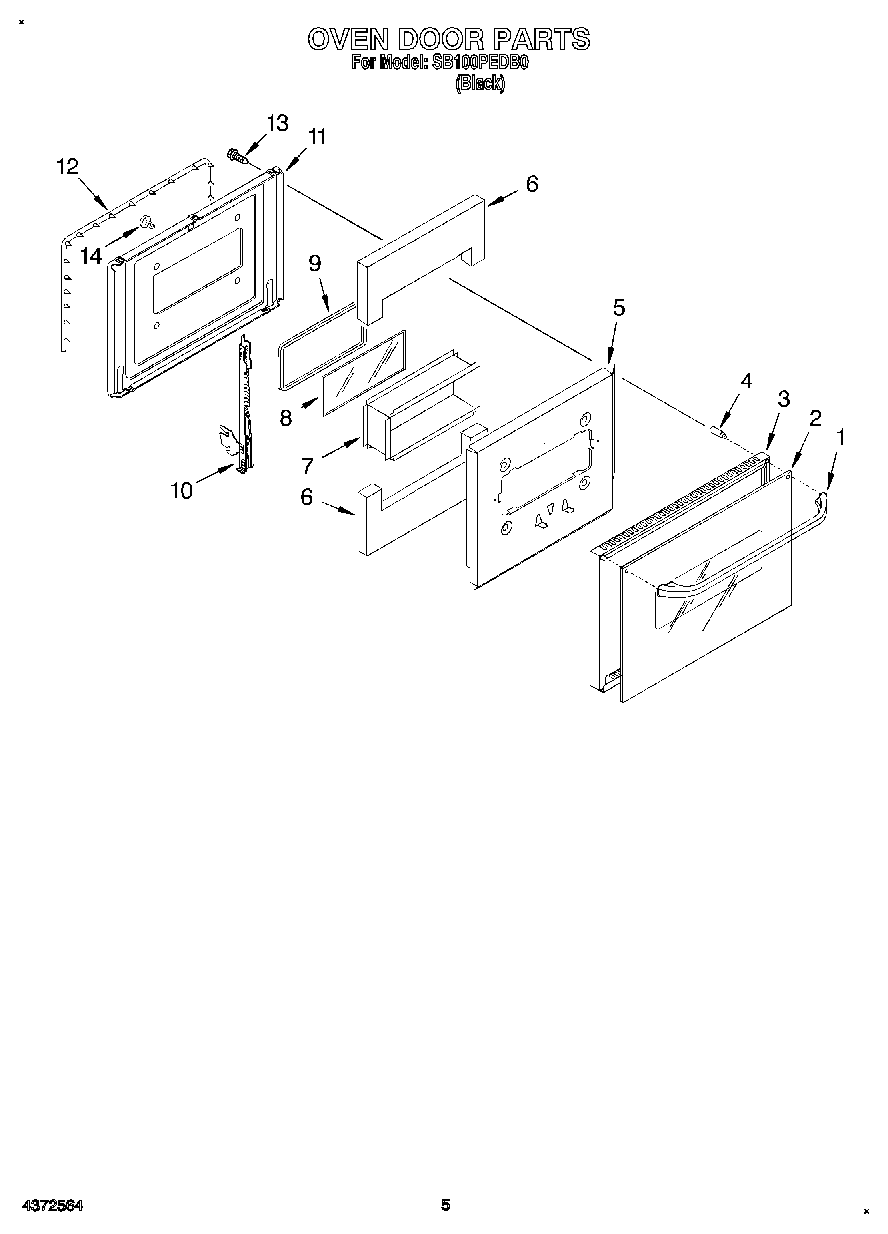

SB100PEDB0 04 – OVEN DOOR

SB100PEDB0 04 – OVEN DOOR

Written by

in

SB100PEDB0 04 – OVEN DOOR

Products

PositionProduct
1Handle, Oven Door
2Glass, Outer Door
3Frame, Door
4Spacer, Handle
5Panel, Airwash
6Insulation, Door
7Retainer, Glass
8Glass, Inner
9Seal, Window
10Hinge, Door
11Liner, Door
12Seal, Door
13Screw, Handle (4)
14Button, Plug
