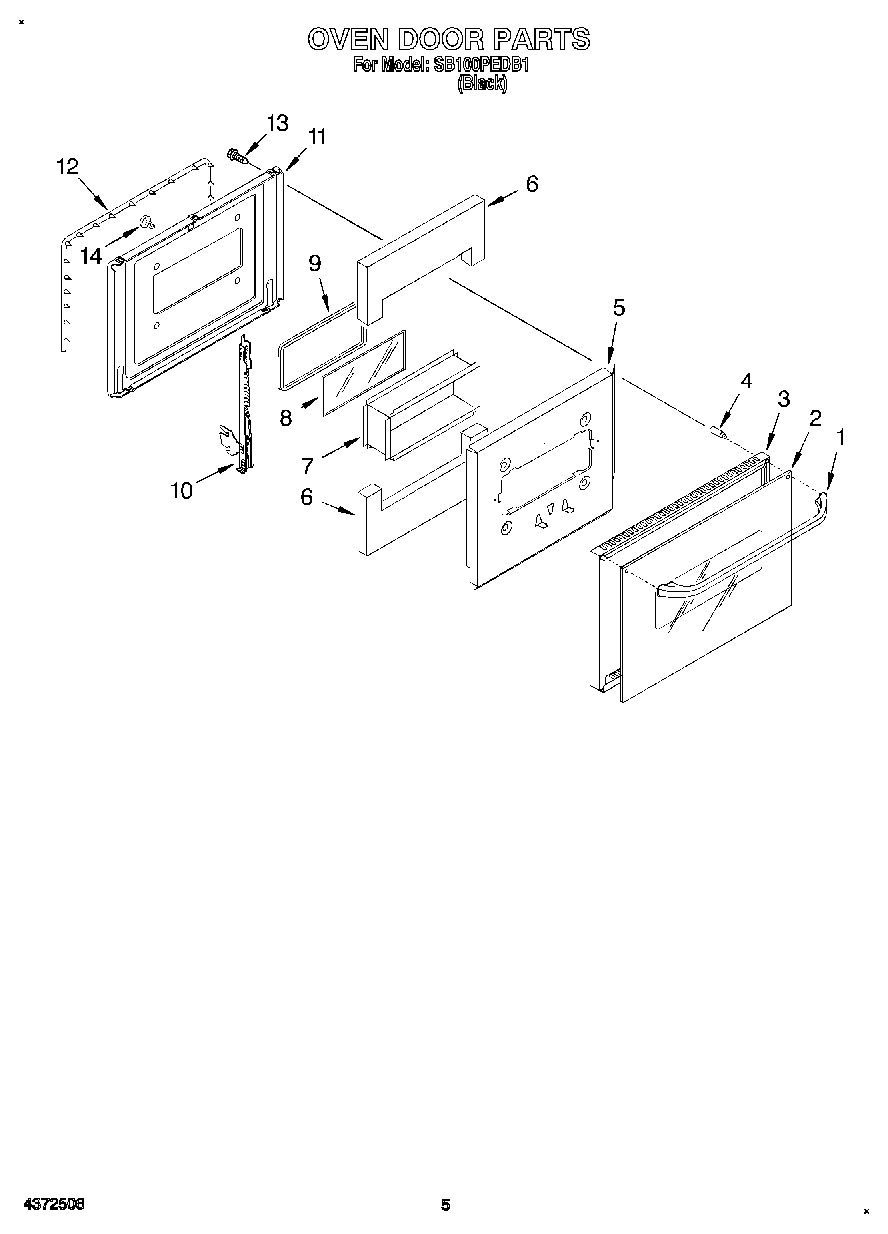

SB100PEDB1 04 – OVEN DOORadmin2025-04-26T11:21:21+00:00SB100PEDB1 04 – OVEN DOOR
Products
| Position | Product |
|---|
| 1 | Handle, Oven Door |
| 2 | Glass, Outer Door |
| 3 | Frame, Door |
| 4 | Spacer, Handle |
| 5 | Panel, Airwash |
| 6 | Insulation, Door |
| 7 | Retainer, Glass |
| 8 | Glass, Inner |
| 9 | Seal, Window |
| 10 | Hinge, Door |
| 11 | Liner, Door |
| 12 | Seal, Door |
| 13 | Screw, Handle (4) |
| 14 | Button, Plug |
