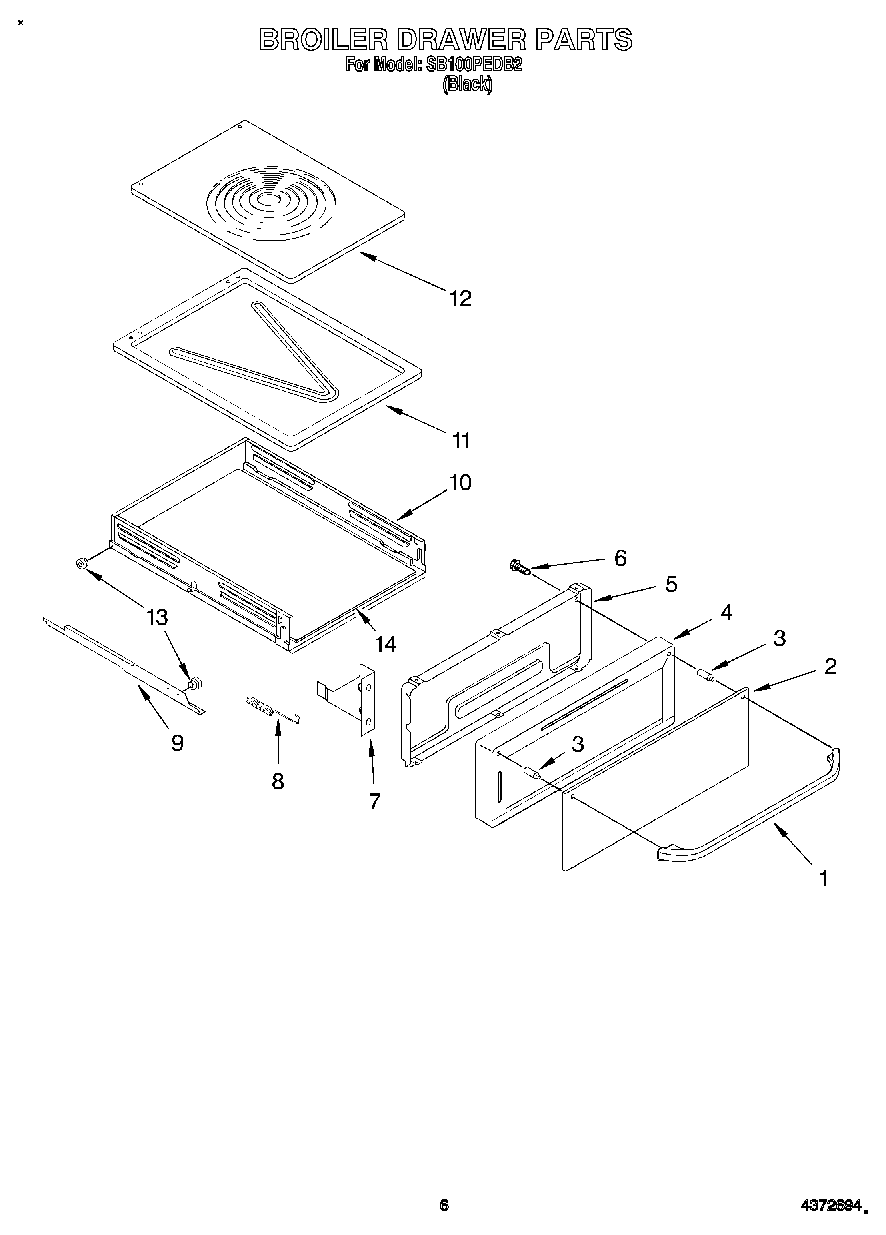

SB100PEDB2 05 – BROILER DRAWER, LITERATUREadmin2025-04-26T11:19:53+00:00SB100PEDB2 05 – BROILER DRAWER, LITERATURE
Products
| Position | Product |
|---|
| Guide, Use & Care |
| Instructions, Installation |
| Diagram, Wiring |
| 1 | Handle, Oven Door |
| 2 | Glass, Drawer |
| 3 | Spacer, Handle |
| 4 | Frame, Trim |
| 5 | Liner, Drawer |
| 6 | Screw, Handle (4) |
| 7 | Hinge, Broiler (Right Hand) |
| 7 | Hinge, Broiler (Left Hand) |
| 8 | Spring, Broiler |
| 9 | Track, Drawer (Right Hand) |
| 9 | Track, Drawer (Left Hand) |
| 10 | Drawer, Broiler |
| 11 | Pan, Broiler |
| 12 | Insert, Broiler Pan |
| 13 | Roller |
| 14 | Panel, Drawer Btm. |
