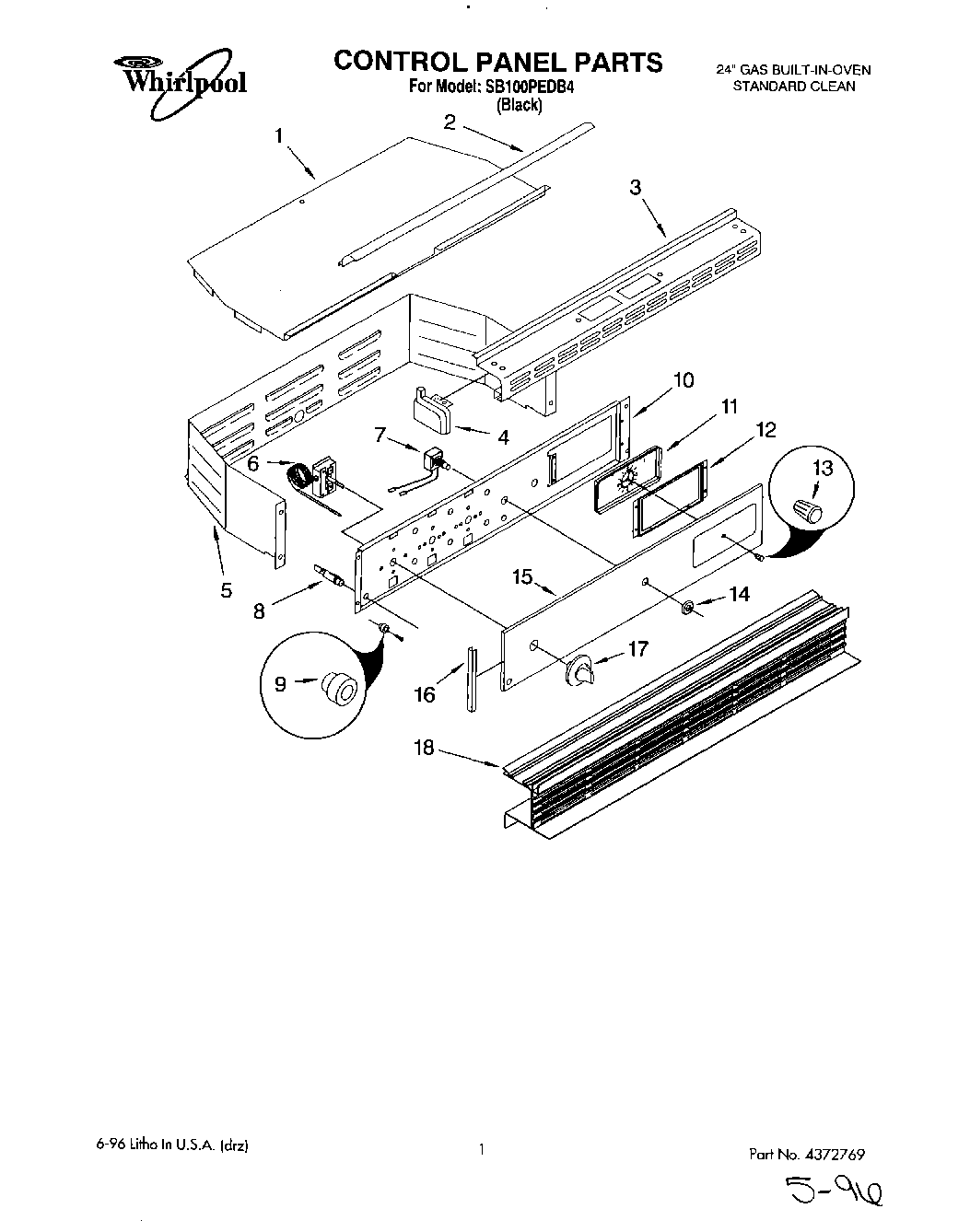

SB100PEDB4 01 – CONTROL PANEL

SB100PEDB4 01 – CONTROL PANEL

Written by

in

SB100PEDB4 01 – CONTROL PANEL

Products

Position	Product
1	Cover, Control
2	Deflector, Heat
3	Trim, Top
4	Endcap (Right Hand)
4	Endcap (Left Hand)
5	Shield, Control
6	Thermostat
7	Switch, Oven Light
7	Nut, Decorative
8	Light, Indicator
9	Bumper, Rubber (4)
10	Plate, Control Mtg
11	Clock
12	Bracket, Clock
13	Knob, Clock
14	Bezel, Switch
15	Panel, Control
16	Trim, Control Pnl.
17	Knob, Thermostat
18	Trim, Center Vent
