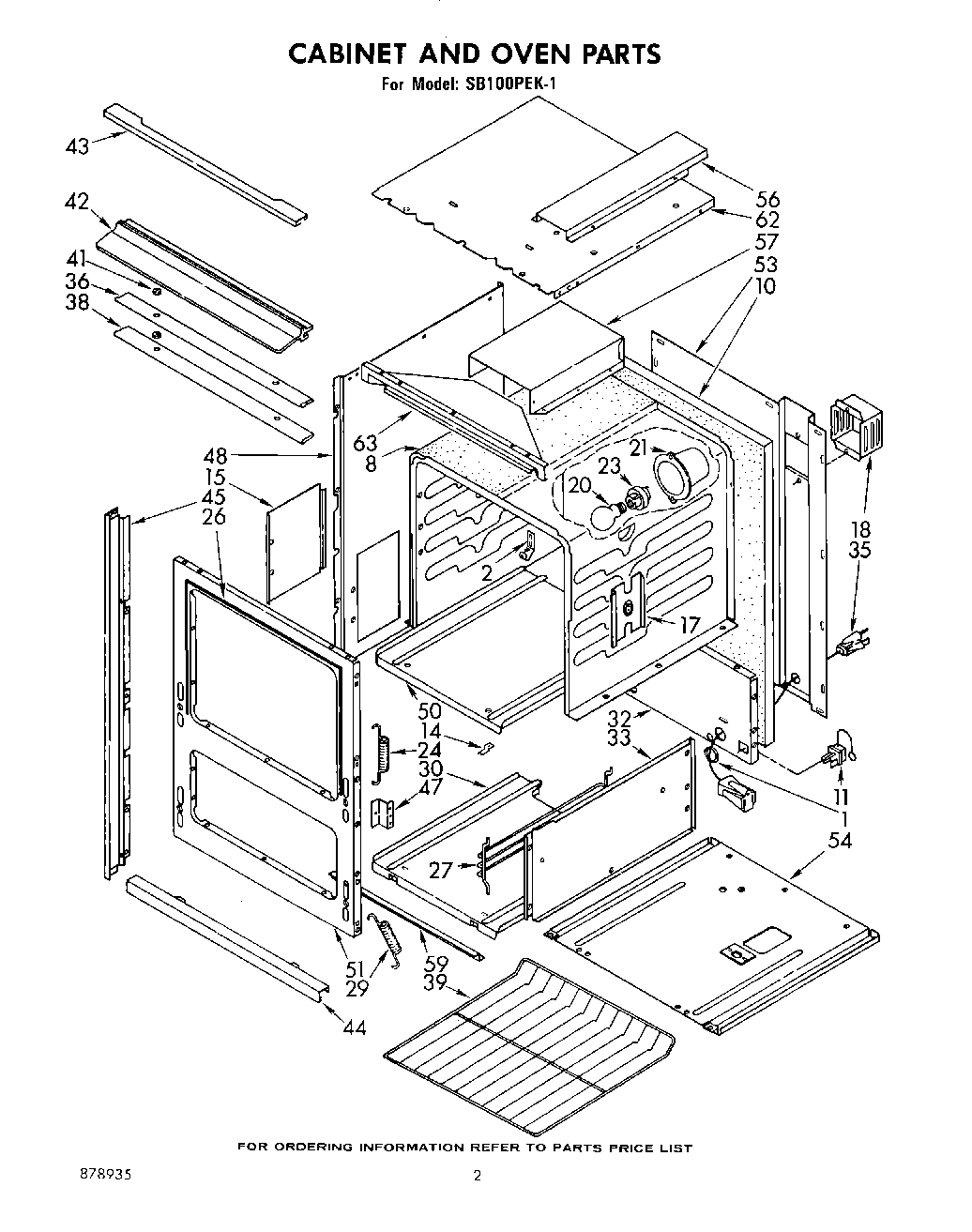

SB100PEK1 02 – CABINET AND OVEN
Written by
in
SB100PEK1 02 – CABINET AND OVEN
Products
Position
Product
1
Bushing, Snap
2
98005642 Whirlpool Clip
8
WPW10208653 Whirlpool Insulation
11
Plug, Male Receptacle
14
Clip, Oven Bottom Plate (2)
15
Cover, Hinge
17
Shield, Insulation
18
Cover, Light Socket
20
RANGE ONLY 40W 120V APPL BULB
21
Box, Oven Light
23
Socket, Oven Light
24
Spring, Oven Door (2)
26
Seal, Oven Door (Top (2))
26
Seal, Oven Door (Side (2))
27
Runner, Broiler Rack (2)
29
Spring, Broiler Door (2)
30
Bottom, Broiler Compartment
32
Back, Broiler Compartment
33
Side, Broiler (Left Side)
33
Side, Broiler (Right Side)
35
Cord, Extension
36
Louver, Vent Center
38
Louver, Vent Bottom
39
Rack, Oven (2)
41
Spacer, Vent Grille (4)
42
Trim, Control Panel Bottom
43
Trim, Top
44
Trim, Bottom
45
Trim, Side (Left)
45
Trim, Side (Right)
47
Bracket, Oven Door Spring (2)
48
Panel, End (Right Side)
48
Panel, End (Left Side)
50
Plate, Oven Bottom
51
Front, Main
53
Back, Main
54
Base, Main
56
Cover, Wire (Top)
57
Box, Vent
59
Support, Bottom Plate
62
Cover, Insulation
63
Booklet, Use & Care
63
Instructions, Installation
63
Diagram, Wiring
63
Extension, Vent Box
63
List, Repair Parts
←
