SB100PEK1 03 – CONTROL PANEL AND IGNITION SYSTEM

SB100PEK1 03 – CONTROL PANEL AND IGNITION SYSTEM

Written by

in

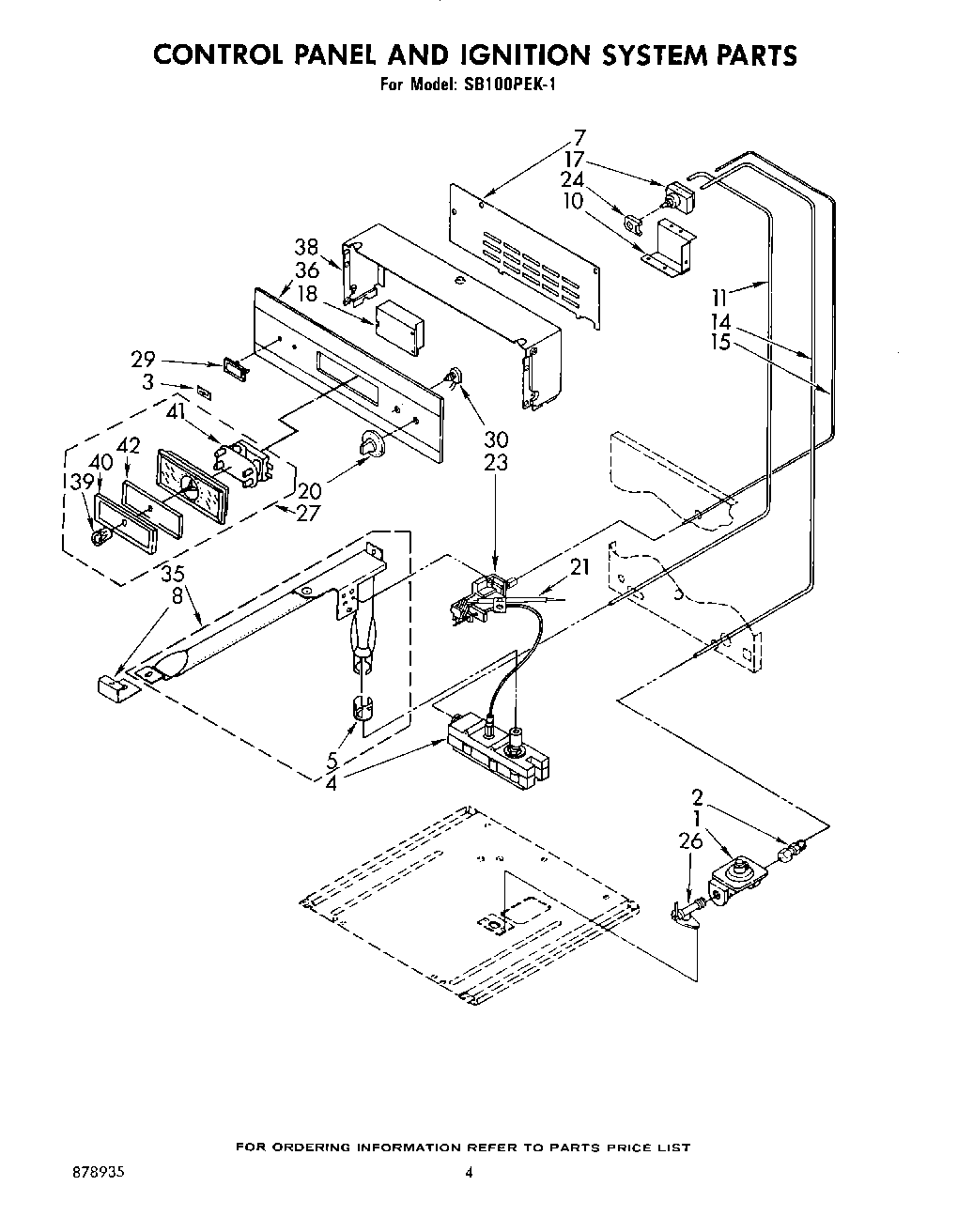

SB100PEK1 03 – CONTROL PANEL AND IGNITION SYSTEM

Products

PositionProduct
1Regulator, Pressure
2Fitting Flange 1/2 x 3/8
3Inlay, Nameplate
4Valve, Oven Lighter Safety
5Shutter, Oven Burner Air
7Back, Control Box
8Support, Oven Burner (Front)
10Support, Oven Control
11Tubing, Oven Control Safety Valve
14Tubing, Regulator Oven Control
15Tubing, Control Pilot
17Control, Oven
18Control, Ignitor
20Dial, Oven Control
21Ignitor, Oven Burner
23Lighter, Oven Burner
24WP878009 Whirlpool Igniter Switch
26Valve, Cut Off
27Clock, Regular
29Plate, Name
30Switch, Oven Light
35Burner, Oven
36Panel, Control
38Box, Control
39Knob (1)
40Bezel
41Motor
42Glass, Timer
