SB100PEK1 04 – DOOR

SB100PEK1 04 – DOOR

Written by

in

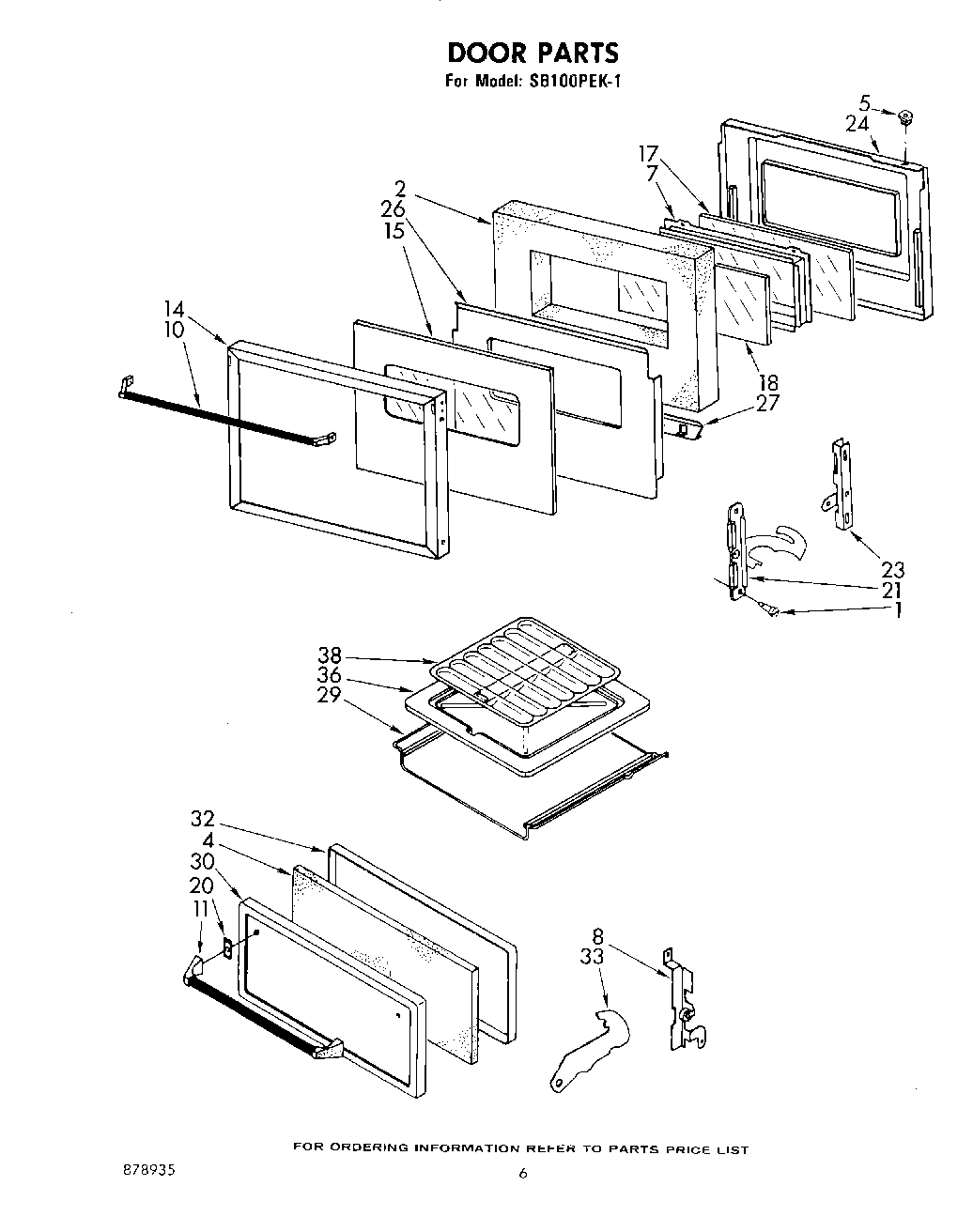

SB100PEK1 04 – DOOR

Products

PositionProduct
1Bolt, Shoulder 10-24 x 7/16 (2)
2WPW10208653 Whirlpool Insulation
4Insulation, Broiler Door
598460 Whirlpool Nut
7Frame, Window
8Support, Broiler Door Hinge (Right Side)
8Support, Broiler Door Hinge (Left Side)
10Handle Door (Oven)
11Handle Door (Broiler)
14Frame, Door
15Glass, Oven Door Outside
17Glass, Oven Door Inside
18Glass, Oven Door Center
20Spacer, Door Handle (2)
21Hinge, Oven Door (2)
23Support, Oven Door (Right Side)
23Support, Oven Door (Left Side)
24Lining, Oven Door
26Baffle, Door
27Retainer, Insulation
29Rack, Broiler Pan
30Panel, Broiler Door
32Lining, Broiler Door
33Hinge, Broiler Door (2)
36Pan, Broiler
38Tray, Broiler Pan
