SB100PER0 04 – BURNER

SB100PER0 04 – BURNER

Written by

in

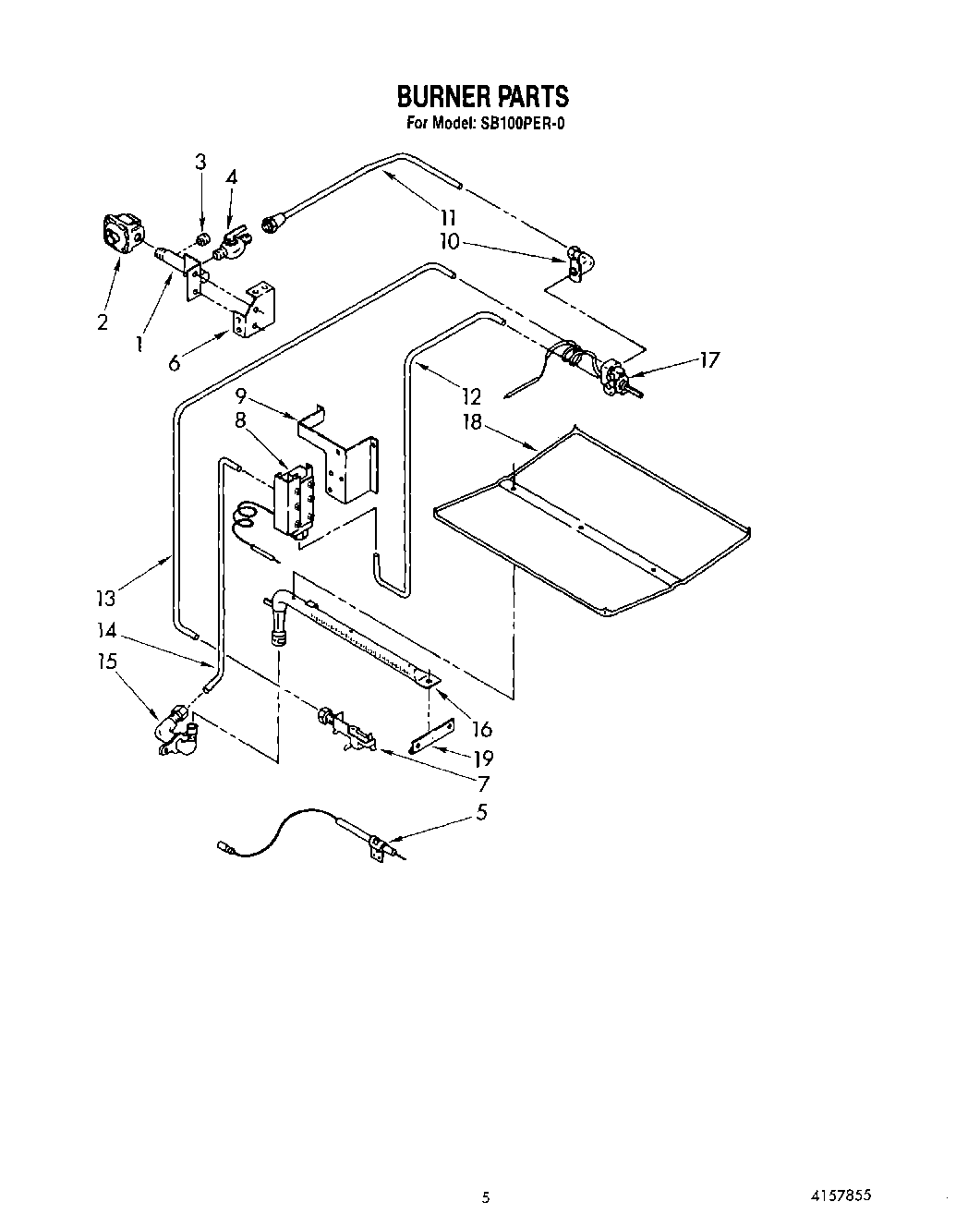

SB100PER0 04 – BURNER

Products

PositionProduct
1Screw, 10-24 X 3/8 (2)
1Inlet Pipe
2Regulator, Pressure
3Plug, Pipe
4Valve, Shut Off
5Ignitor
6Support, Inlet
7Pilot
8Valve, Gas
9Bracket, Valve
10Fitting, Flange
11Tubing (Inlet To Thermostat)
12Tubing (Thermostat To Vavle)
13Tubing (Thermostat To Pilot)
14Tubing (Valve To Orfice)
15Orfice, Broiler
16Burner, Broiler
17Thermostat
18Reflector
19Support, Burner
19WP308685 Whirlpool Microwave Screw
