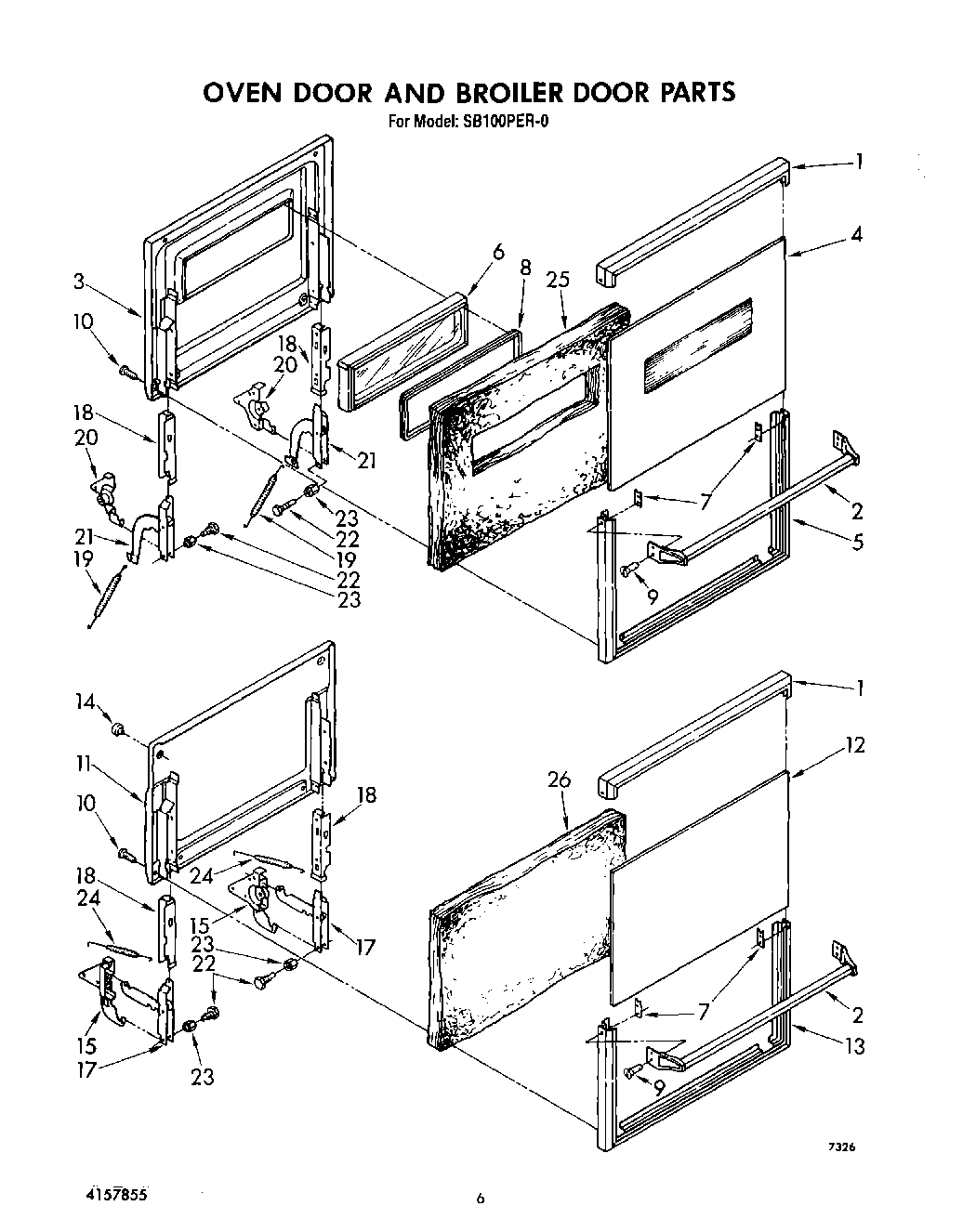

SB100PER0 05 – OVEN DOOR AND BROILER DOOR, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Instructions, Installation
	Guide, Use & Care
	Guide, Cooking
1	Frame, Top
2	Handle
3	Liner, Oven Door
4	Glass, Outer (Oven)
5	Frame, Bottom (Oven)
6	Window Package
7	Plate (2)
8	Gasket
9	Screw (4)
10	WP308685 Whirlpool Microwave Screw
11	Liner, Broiler Door
12	Glass, outer (Broiler)
13	Frame, Bottom (Broiler)
14	Bumper (2)
15	Screw, 10-24 X 3/8 (2)
15	Hinge (Left Hand)
15	Hinge (Right Hand)
17	Arm, Hinge (Right Hand)
17	Arm, Hinge (Left Hand)
18	Socket, Hinge (Right Hand)
18	Screw, 10-24 X 1/4 (1)
18	Socket, Hinge (Left Hand)
19	Spring, Oven Door (2)
20	Hinge, Fixed (Right Hand)
20	Hinge, Fixed (Left Hand)
21	Channel (Left Hand)
21	Channel (Right Hand)
22	Screw (2)
23	Spacer (2)
24	Spring (2)
25	Insulation
26	FOIL, ALUMINUM OVEN (18“ X 25 )
26	Insulation
26	WPW10208653 Whirlpool Insulation
