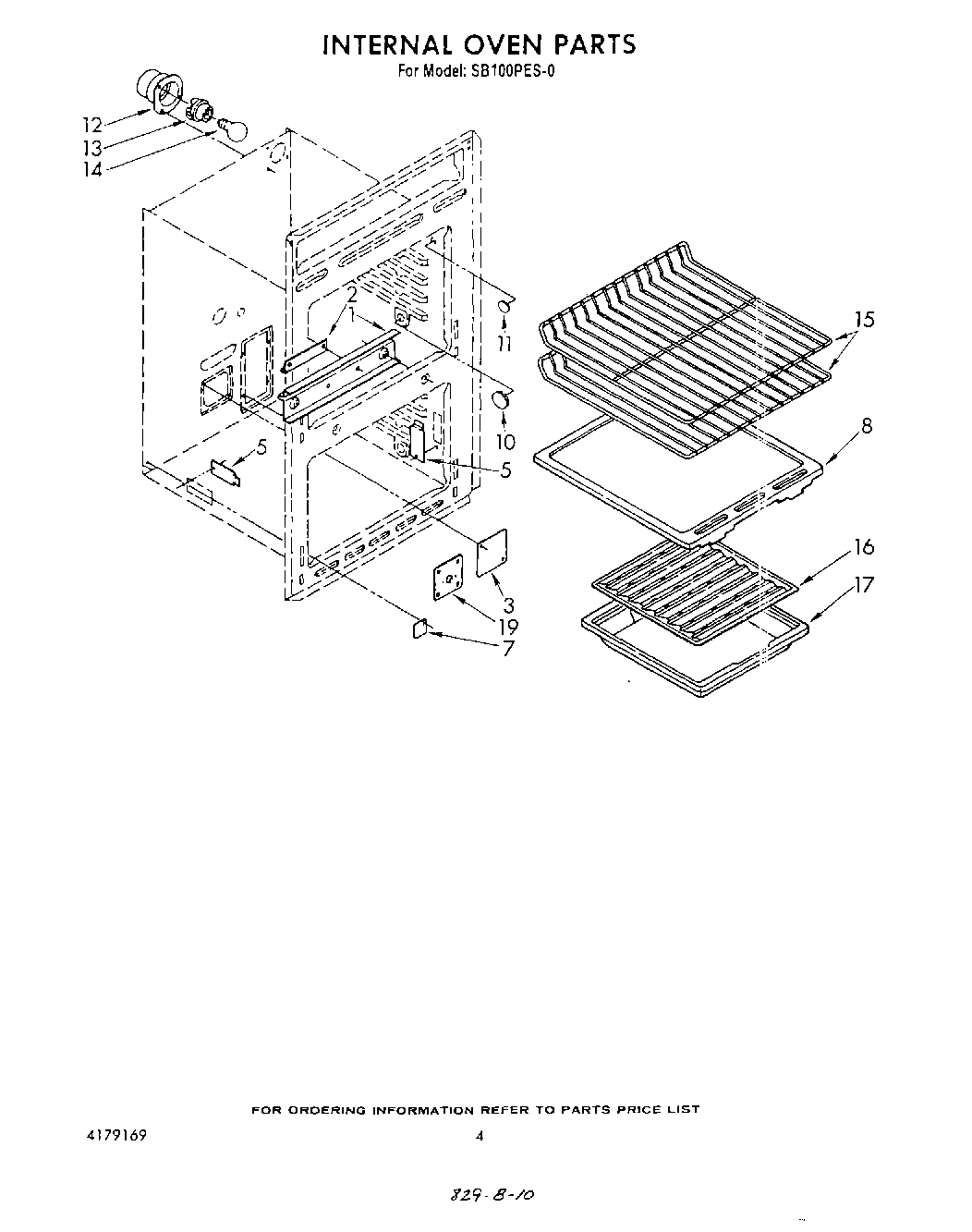

SB100PES0 03 – INTERNAL OVENadmin2025-04-26T11:19:50+00:00SB100PES0 03 – INTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | W10080180 Whirlpool Nut |
| 1 | Support, Channel |
| 1 | Screw, 10-24 X 3/8 (2) |
| 2 | Support, Burner |
| 3 | WP308685 Whirlpool Microwave Screw |
| 3 | Plate, Cover |
| 5 | Screw, 8-18 X 3/8 (4) |
| 5 | Cover, Spring (3) |
| 7 | Cover, Oven Back |
| 8 | Bottom, Oven |
| 10 | Plug, Button (4) |
| 11 | Plug, Button (1) |
| 12 | Housing, Light |
| 13 | Socket, Light |
| 14 | RANGE ONLY 40W 120V APPL BULB |
| 15 | Rack, Oven |
| 16 | Grid, Broiler |
| 17 | Pan, Broiler |
| 19 | Plate, Orfice |
