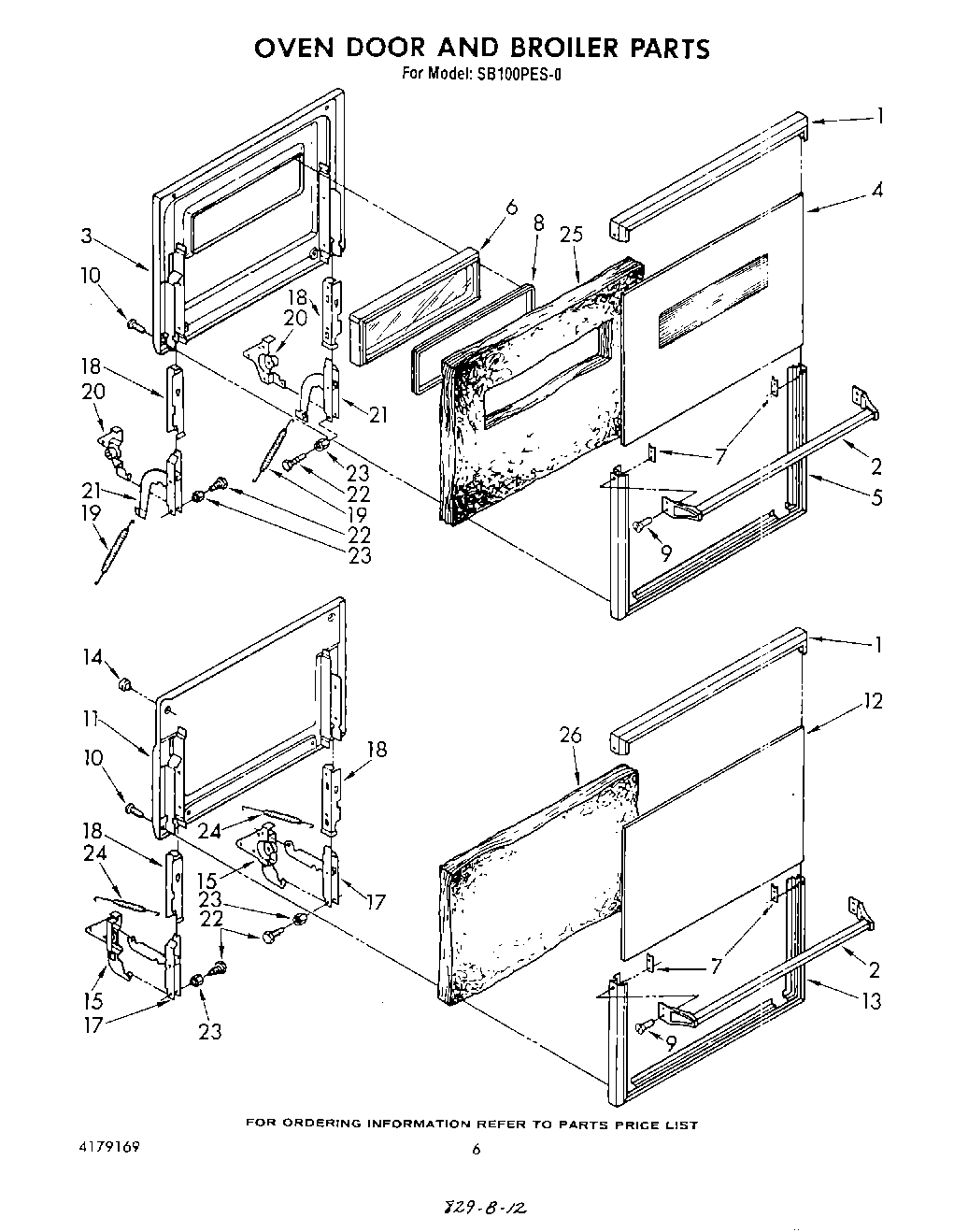

SB100PES0 05 – OVEN DOOR AND BROILER , LITERATURE

Products

Position	Product
	List, Repair Parts
	owner`s manual
	Instructions, Installation
	Guide, Cooking
1	Frame, Top
2	Handle
3	Liner, Oven Door
4	Glass, Outer (Oven)
5	Frame, Bottom (Oven)
6	Window Package
7	Plate (2)
8	Gasket
9	Screw (4)
10	WP308685 Whirlpool Microwave Screw
11	Liner, Broiler Door
12	Glass, outer (Broiler)
13	Frame, Bottom (Broiler)
14	Bumper (2)
15	Hinge (Left Hand)
15	Screw, 10-24 X 3/8 (2)
15	Hinge (Right Hand)
17	Arm, Hinge (Left Hand)
17	Arm, Hinge (Right Hand)
18	Socket, Hinge (Left Hand)
18	Socket, Hinge (Right Hand)
18	Screw, 10-24 X 1/4 (1)
19	Spring, Oven Door (2)
20	Hinge, Fixed (Left Hand)
20	Hinge, Fixed (Right Hand)
21	Channel (Left Hand)
21	Channel (Right Hand)
22	Screw (2)
23	Spacer (2)
24	Spring (2)
25	Insulation
26	Insulation
26	WPW10208653 Whirlpool Insulation
26	FOIL, ALUMINUM OVEN (18“ X 25 )
