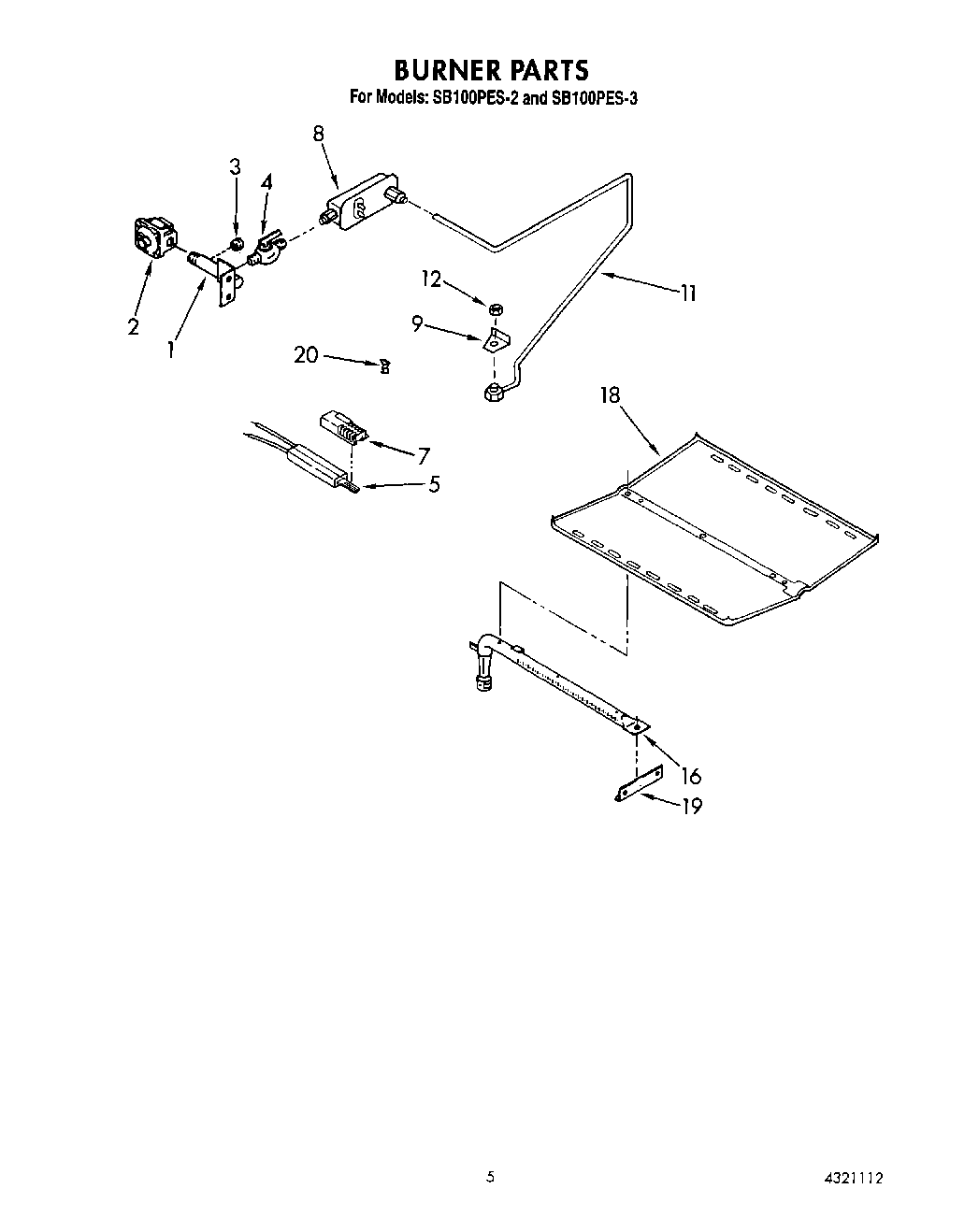

SB100PES2 04 – BURNER

Written by

Products

Position	Product
1	Inlet Pipe
1	Screw, 10-24 X 3/8 (2)
2	Regulator, Pressure
3	Plug, Pipe
4	Valve, Shut-Off
5	786324 Whirlpool Flat Igniter
7	Ignitor Shield
8	Valve, Electric
9	Bracket, Orifice
11	Tubing (Gas Valve To Orifice)
12	Nut, Lock
16	Burner, Broiler
18	Baffle, Burner
19	Support, Burner
19	WP308685 Whirlpool Microwave Screw
20	Clip, Thermo Bulb (2)
