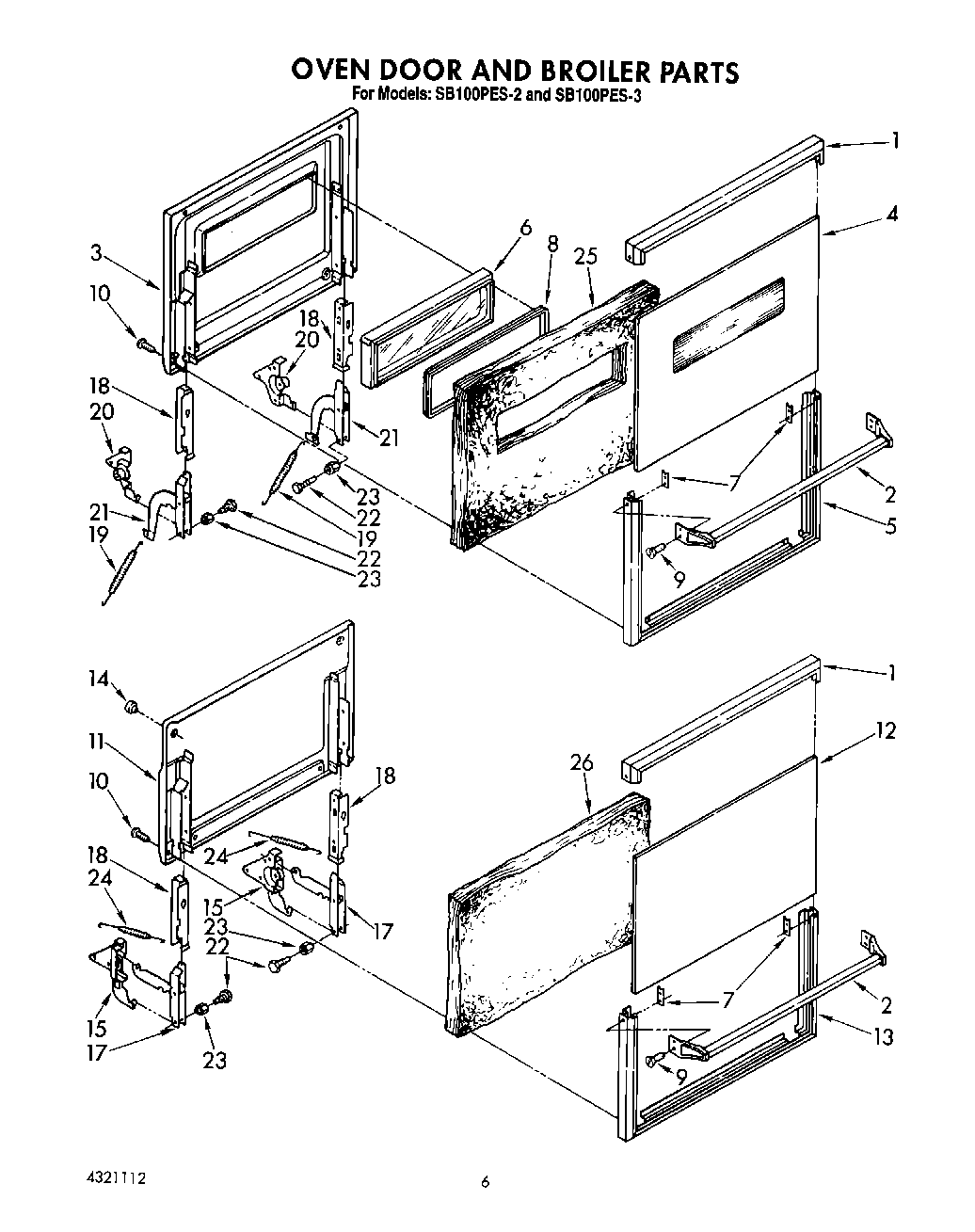

SB100PES2 05 – OVEN DOOR AND BROILER, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Cooking
	Guide, Use & Care
	Instructions, Installation
1	Frame, Top
2	Handle
3	Liner, Oven Door
4	Glass, Outer (Oven)
5	Frame, Bottom (Oven)
6	Window Package
7	Plate (2)
8	Gasket
9	Screw (4)
10	WP308685 Whirlpool Microwave Screw
11	Liner, Broiler Door
12	Glass, outer (Broiler)
13	Frame, Bottom (Broiler)
14	Bumper (2)
15	Hinge (Right Hand)
15	Hinge (Left Hand)
15	Screw, 10-24 X 3/8 (2)
17	Arm, Hinge (Left Hand)
17	Arm, Hinge (Right Hand)
18	Socket, Hinge (Right Hand)
18	Screw, 10-24 X 1/4 (1)
18	Socket, Hinge (Left Hand)
19	Spring, Oven Door (2)
20	Hinge, Fixed (Right Hand)
20	Hinge, Fixed (Left Hand)
21	Channel (Left Hand)
21	Channel (Right Hand)
22	Screw (2)
23	Spacer (2)
24	Spring (2)
25	Insulation
26	FOIL, ALUMINUM OVEN (18“ X 25 )
26	WPW10208653 Whirlpool Insulation
26	Insulation
