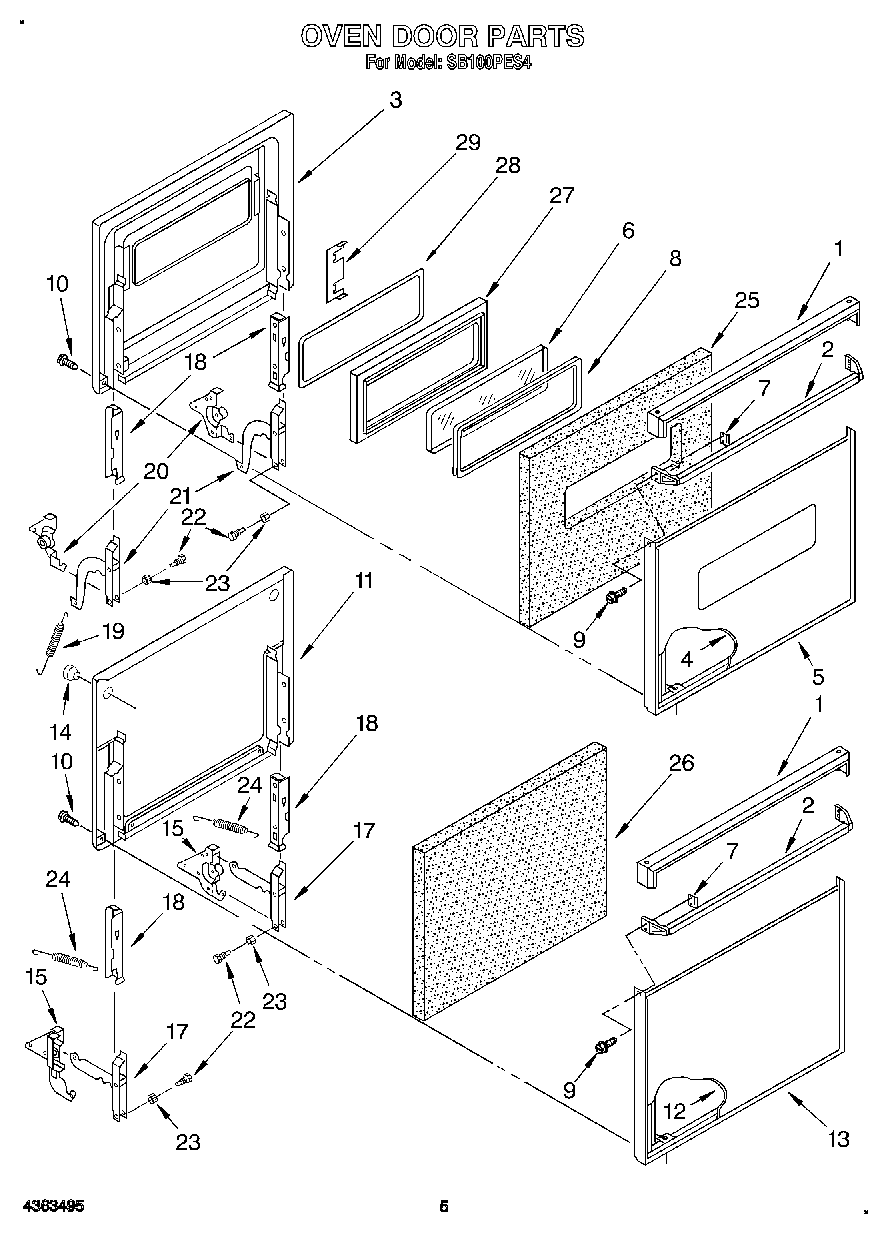

SB100PES4 04 – OVEN DOOR, LIT/OPTIONALadmin2025-04-26T11:19:35+00:00SB100PES4 04 – OVEN DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| Guide, Cooking |
| Guide, Use & Care |
| Instructions, Installation |
| Diagram, Wiring |
| 1 | Frame, Top |
| 2 | Handle |
| 3 | Liner, Oven Door |
| 4 | Glass, Outer (Oven) |
| 5 | Frame, Bottom (Oven) |
| 6 | Window |
| 7 | Plate (2) |
| 8 | Gasket |
| 9 | Screw (4) |
| 10 | WP308685 Whirlpool Microwave Screw |
| 11 | Liner, Broiler Door |
| 12 | Glass, Outer (Broiler) |
| 13 | Frame, Bottom (Broiler) |
| 14 | Bumper (2) |
| 15 | Screw, 10-24 X 3/8 (2) |
| 15 | Hinge (Right Hand) |
| 15 | Hinge (Left Hand) |
| 17 | Arm, Hinge |
| 18 | Socket, Hinge (Left Hand) |
| 18 | Socket, Hinge (Right Hand) |
| 19 | Spring, Oven Door (2) |
| 20 | Hinge, Fixed (Right Hand) |
| 20 | Hinge, Fixed (Left Hand) |
| 21 | Channel (Left Hand) |
| 21 | Channel (Right Hand) |
| 22 | Screw (2) |
| 23 | Spacer (2) |
| 24 | Spring (2) |
| 25 | Insulation |
| 26 | Insulation |
| 27 | Spacer, Window |
| 28 | Trim, Window ``J`` |
| 29 | WPW10208653 Whirlpool Insulation |
| 29 | FOIL, ALUMINUM OVEN (18`` X 25 ) |
| 29 | Bracket, Glass Support |
