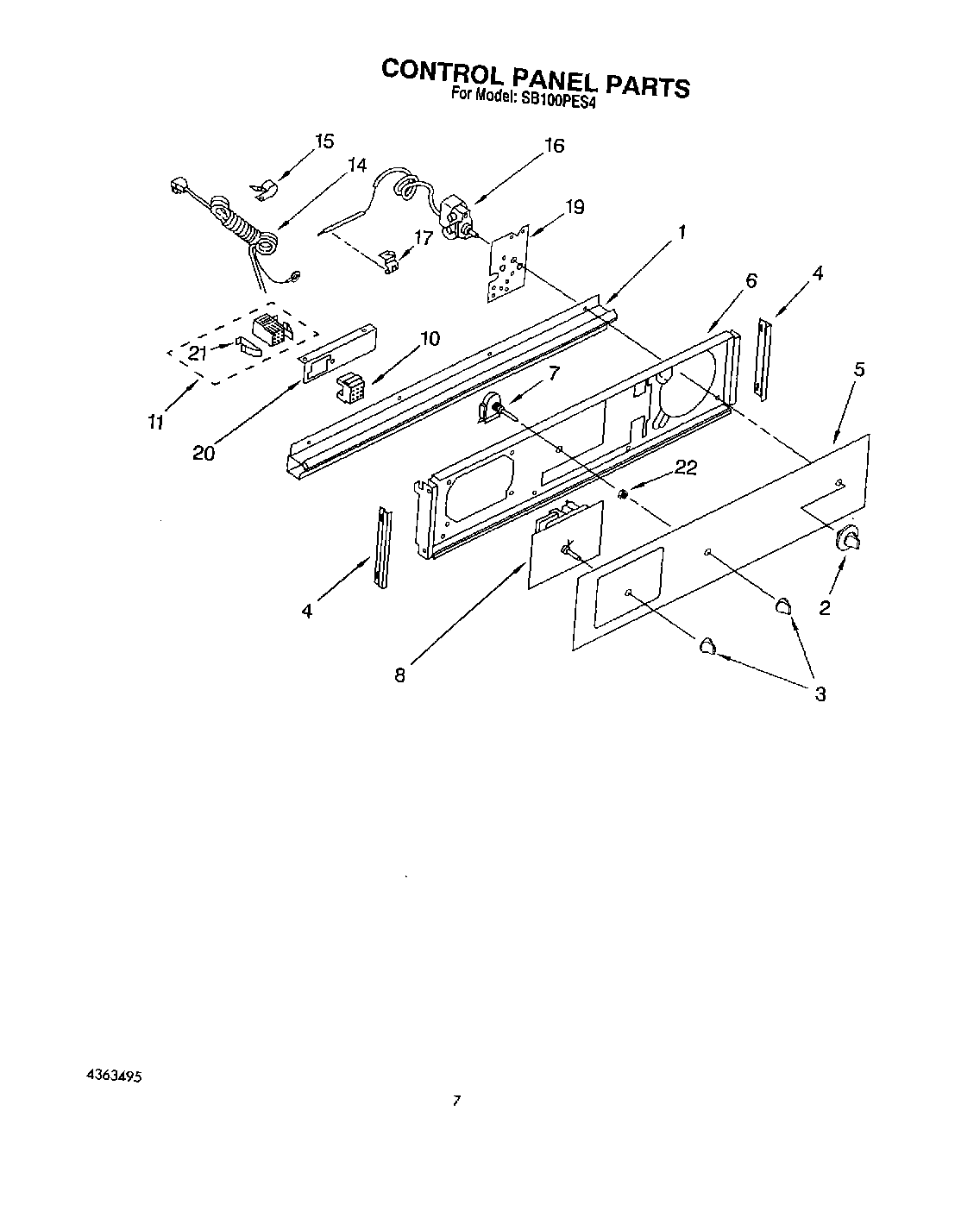

SB100PES4 05 – CONTROL PANEL

Products

Position	Product
1	Trim
2	Knob, Thermostat
3	Knob, Clock
4	Channel, Glass (2)
5	Glass, Control Panel
6	Bracket
7	Switch, Light
8	Timer
8	Nut, 6-32 (4)
10	Block, Disconnect
11	Block, Disconnect
14	Cord, Power
15	Clamp
15	WP308685 Whirlpool Microwave Screw
16	Thermostat
17	Clip, Thermo Bulb (2)
19	Bracket, Thermostat
19	Screw, 8-18 X 3/8 (4)
20	Bracket, Fuse
20	WP693304 Whirlpool Screw
20	Screw, 6-20 X 1/4 (1)
21	Clip (2)
22	Bushing
