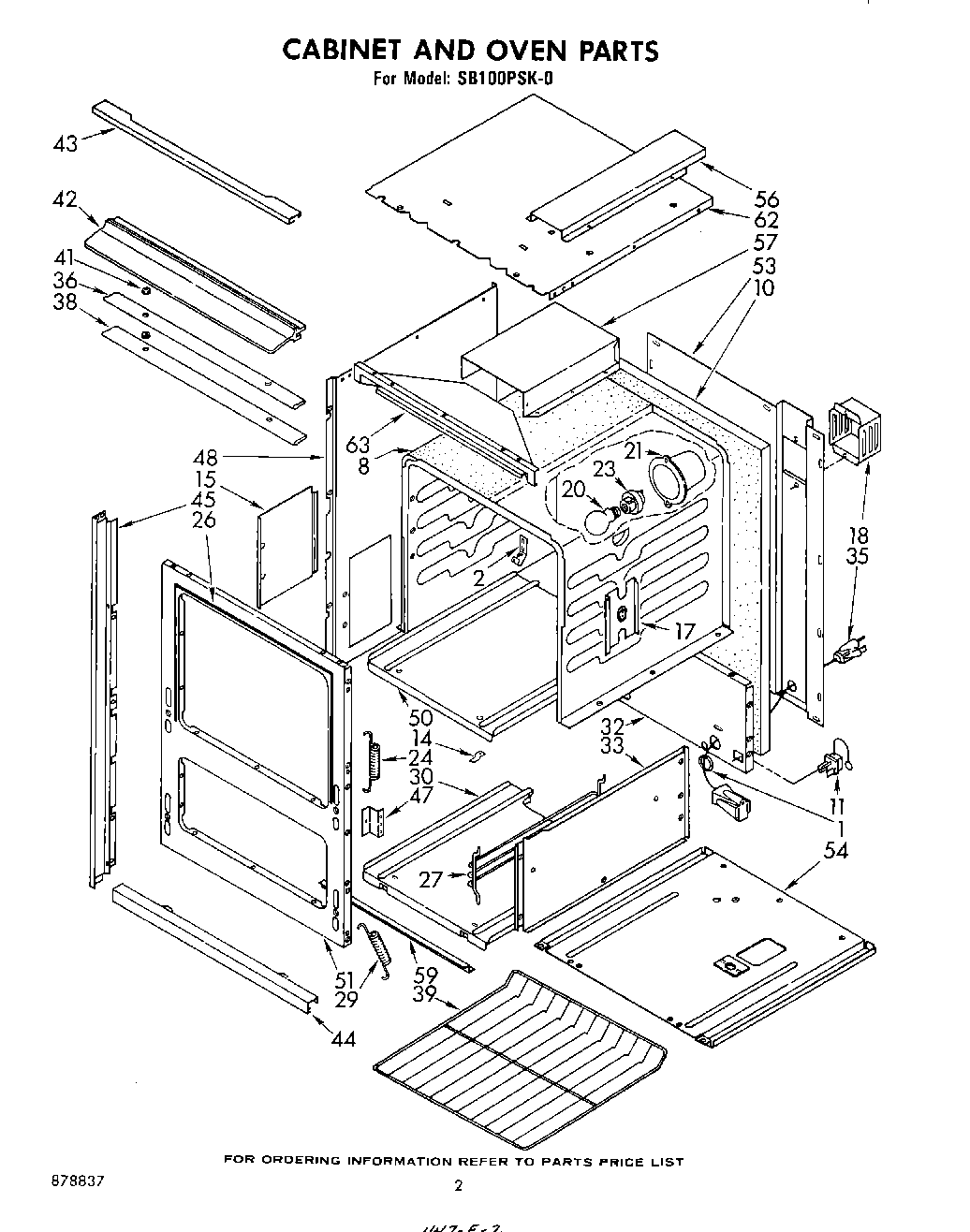

| 1 | Bushing, Snap |
| 2 | 98005642 Whirlpool Clip |
| 8 | WPW10208653 Whirlpool Insulation |
| 11 | Plug, Male Receptacle |
| 14 | Clip, Oven Bottom Plate (2) |
| 15 | Cover, Hinge |
| 17 | Shield, Insulation |
| 18 | Cover, Light Socket |
| 20 | RANGE ONLY 40W 120V APPL BULB |
| 21 | Box, Oven Light |
| 23 | Socket, Oven Light |
| 24 | Spring, Oven Door (2) |
| 26 | Seal, Oven Door (Side (2)) |
| 26 | Seal, Oven Door (Top (2)) |
| 27 | Runner, Broiler Rack (2) |
| 29 | Spring, Broiler Door (2) |
| 30 | Bottom, Broiler Compartment |
| 32 | Back, Broiler Compartment |
| 33 | Side, Broiler (Right Side) |
| 33 | Side, Broiler (Left Side) |
| 35 | Cord, Extension |
| 36 | Louver, Vent Center |
| 38 | Louver, Vent Bottom |
| 39 | Rack, Oven (2) |
| 41 | Spacer, Vent Grille (4) |
| 42 | Trim, Control Panel Bottom |
| 43 | Trim, Top |
| 44 | Trim, Bottom |
| 45 | Trim, Side (Left) |
| 45 | Trim, Side (Right) |
| 47 | Bracket, Oven Door Spring (2) |
| 48 | Panel, End (Left Side) |
| 48 | Panel, End (Right Side) |
| 50 | Plate, Oven Bottom |
| 51 | Front, Main |
| 53 | Back, Main |
| 54 | Base, Main |
| 56 | Cover, Wire (Top) |
| 57 | Box, Vent |
| 59 | Support, Bottom Plate |
| 62 | Cover, Insulation |
| 63 | Diagram, Wiring |
| 63 | Instructions, Installation |
| 63 | List, Repair Parts |
| 63 | Extension, Vent Box |
| 63 | Booklet, Use & Care |
