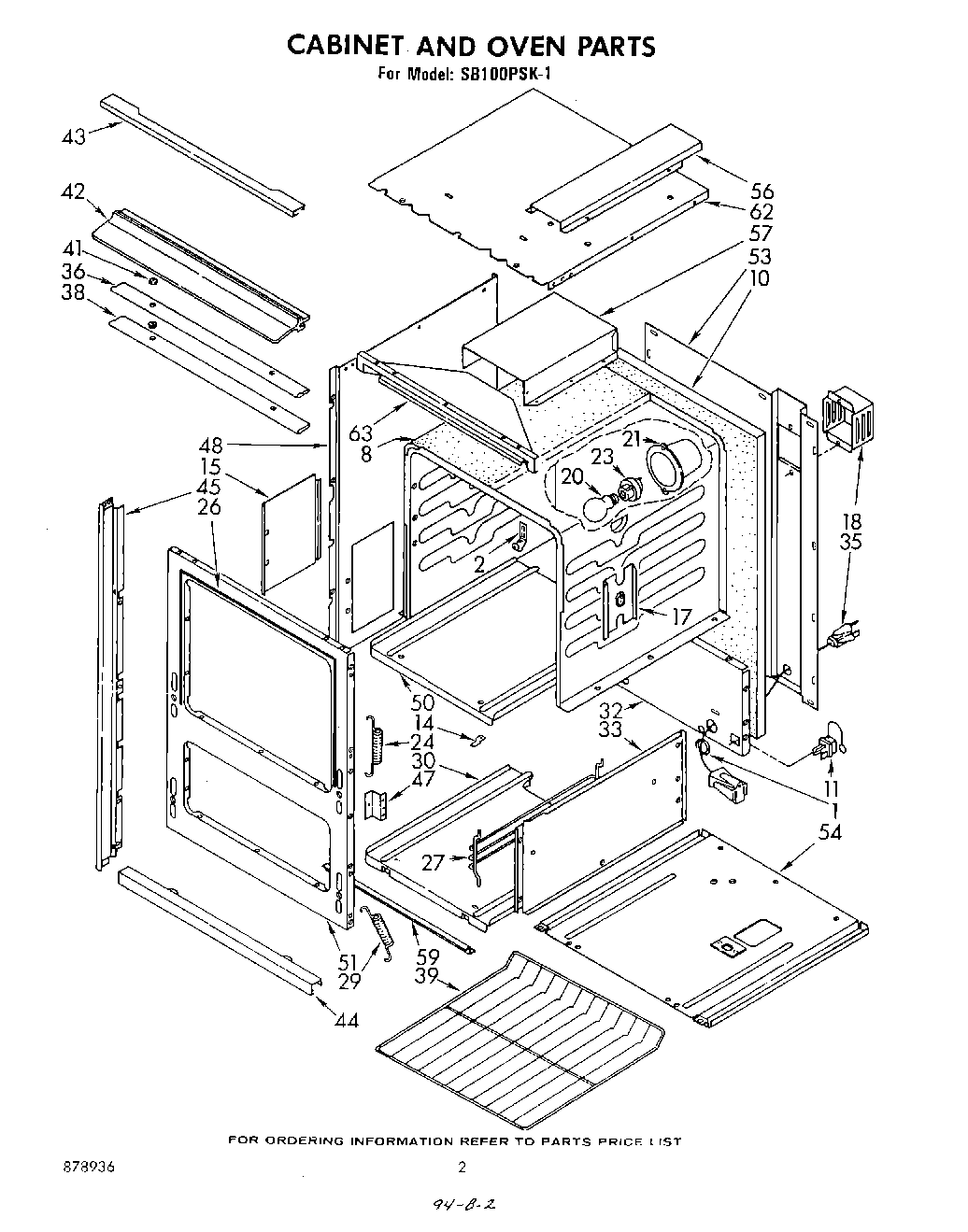

SB100PSK1 02 – SECTION

SB100PSK1 02 – SECTION

Written by

in

SB100PSK1 02 – SECTION

Products

PositionProduct
1Bushing, Snap
298005642 Whirlpool Clip
8WPW10208653 Whirlpool Insulation
11Plug, Male Receptacle
14Clip, Oven Bottom Plate (2)
15Cover, Hinge
17Shield, Insulation
18Cover, Light Socket
20RANGE ONLY 40W 120V APPL BULB
21Box, Oven Light
23Socket, Oven Light
24Spring, Oven Door (2)
26Seal, Oven Door (Side (2))
26Seal, Oven Door (Top (2))
27Runner, Broiler Rack (2)
29Spring, Broiler Door (2)
30Bottom, Broiler Compartment
32Back, Broiler Compartment
33Side, Broiler (Left Side)
33Side, Broiler (Right Side)
35Cord, Extension
36Louver, Vent Center
38Louver, Vent Bottom
39Rack, Oven (2)
41Spacer, Vent Grille (4)
42Trim, Control Panel Bottom
43Trim, Top
44Trim, Bottom
45Trim, Side (Left)
45Trim, Side (Right)
47Bracket, Oven Door Spring (2)
48Panel, End (Left Side)
48Panel, End (Right Side)
50Plate, Oven Bottom
51Front, Main
53Back, Main
54Base, Main
56Cover, Wire (Top)
57Box, Vent
59Support, Bottom Plate
62Cover, Insulation
63Extension, Vent Box
63Booklet, Use & Care
63Instructions, Installation
63Diagram, Wiring
63List, Repair Parts
