SB100PSR0 02 – EXTERNAL OVEN
Written by
in

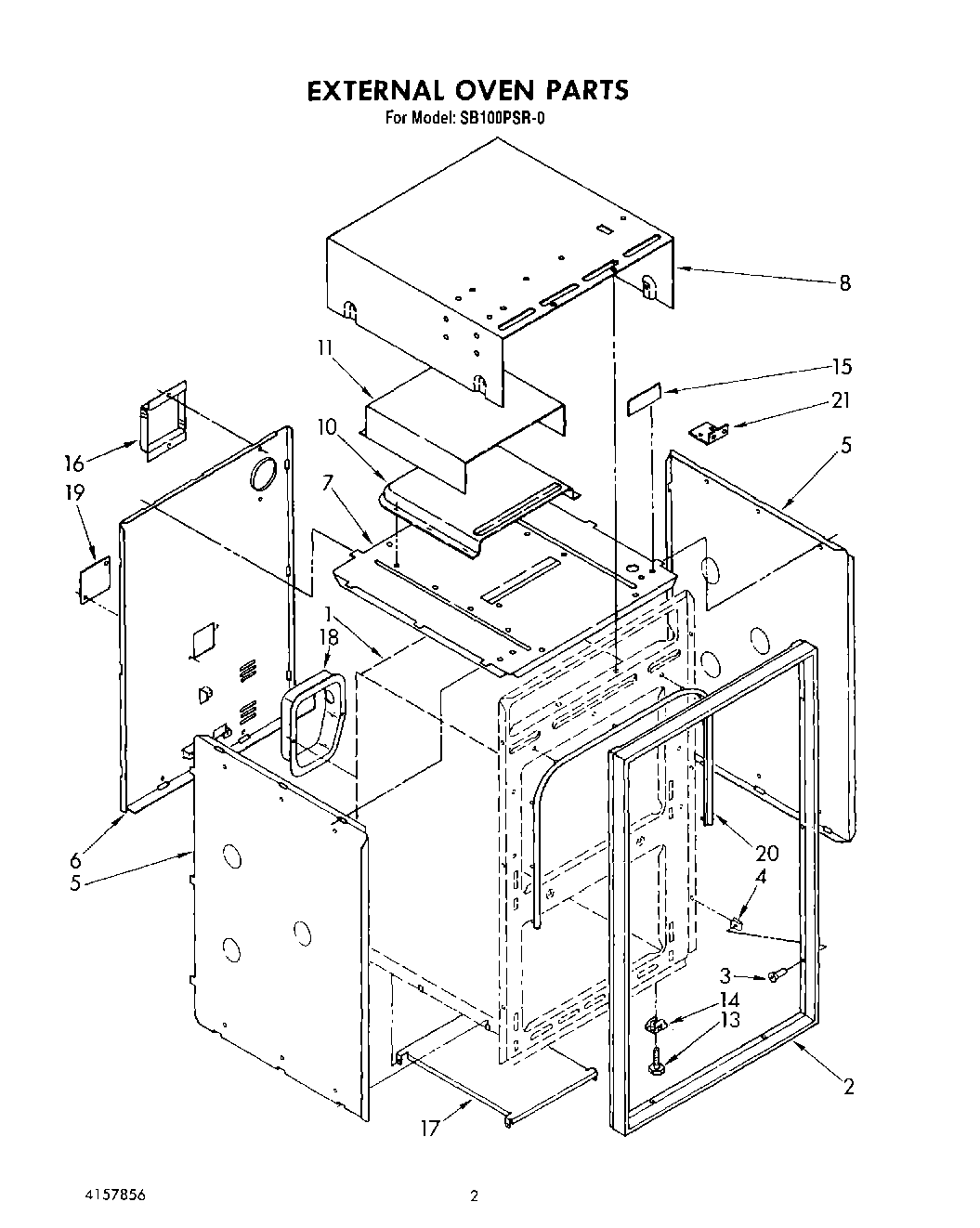

SB100PSR0 02 – EXTERNAL OVEN
Products
Position
Product
1
Chassis (Not Serviceable)
2
Trim, Chassis
3
Screw (10)
4
WP98234 Whirlpool Nut
5
Panel, Side (2)
6
Panel, Rear
7
Retainer, Insulation
8
Panel, Top
8
Screw, 6-18 X 3/8 (6)
10
Screw, 6-20 X 1/4 (1)
10
Flueway
11
Cover, Flueway
13
Leg, Leveling (4)
14
Nut (4)
15
Shield, Wire (2)
16
WP308685 Whirlpool Microwave Screw
16
Cover, Light
17
Shield, Heat
18
Cover, Orfice
19
Plate, Cover
20
Gasket, Oven Door
21
Brace, Tubing
←
