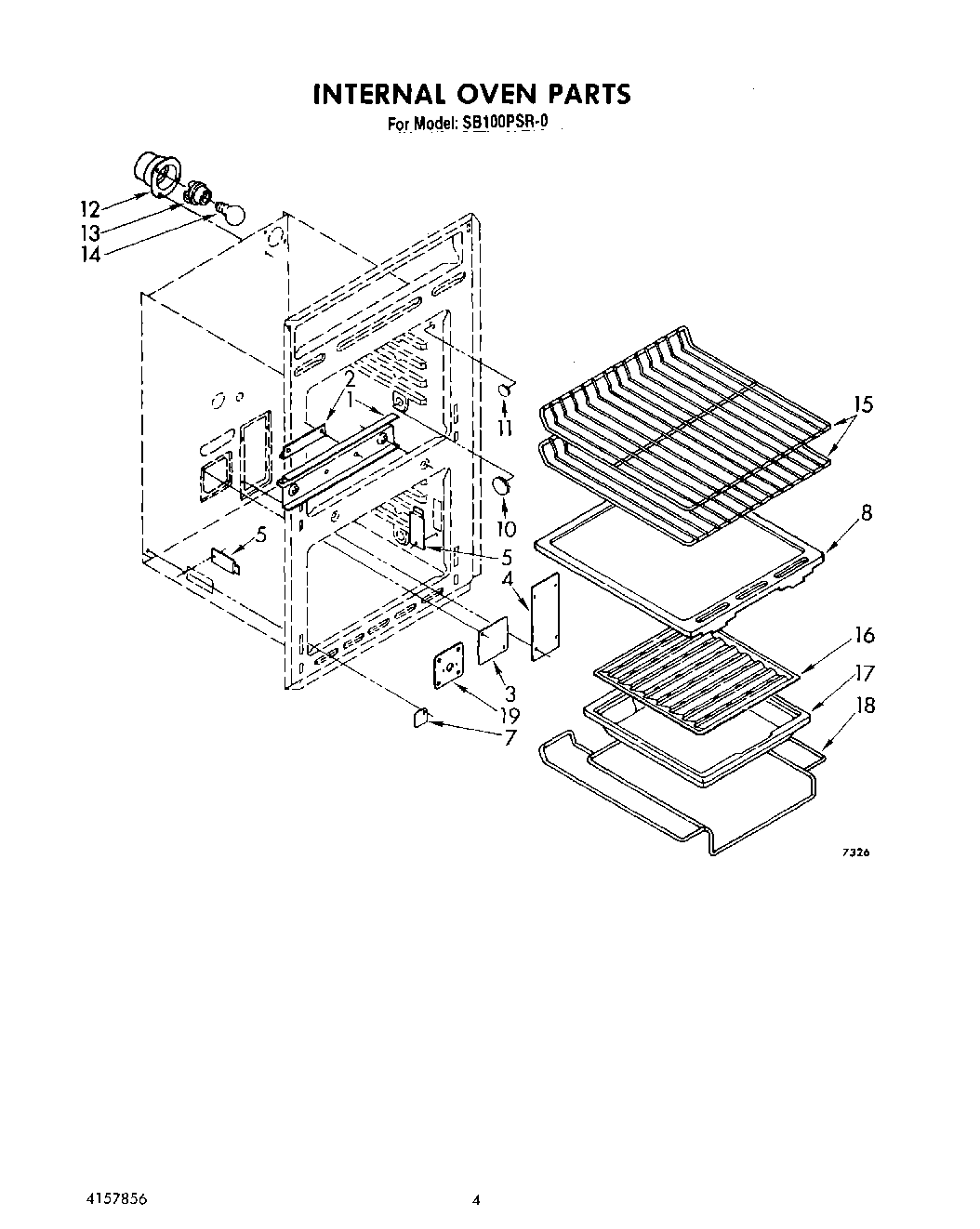

SB100PSR0 03 – INTERNAL OVEN

SB100PSR0 03 – INTERNAL OVEN

Written by

in

SB100PSR0 03 – INTERNAL OVEN

Products

PositionProduct
1W10080180 Whirlpool Nut
1Screw, 10-24 X 3/8 (2)
1Support, Channel
2Support, Burner
3Plate, Cover
4WP308685 Whirlpool Microwave Screw
4Plate, Cover
5Screw, 8-18 X 3/8 (4)
5Cover, Spring (3)
7Cover, Oven Back
8Bottom, Oven
10Plug, Button (4)
11Plug, Button (1)
12Housing, Light
13Socket, Light
14RANGE ONLY 40W 120V APPL BULB
15Rack, Oven
16Grid, Broiler
17Pan, Broiler
18Rack, Broiler
19Plate, Orfice
