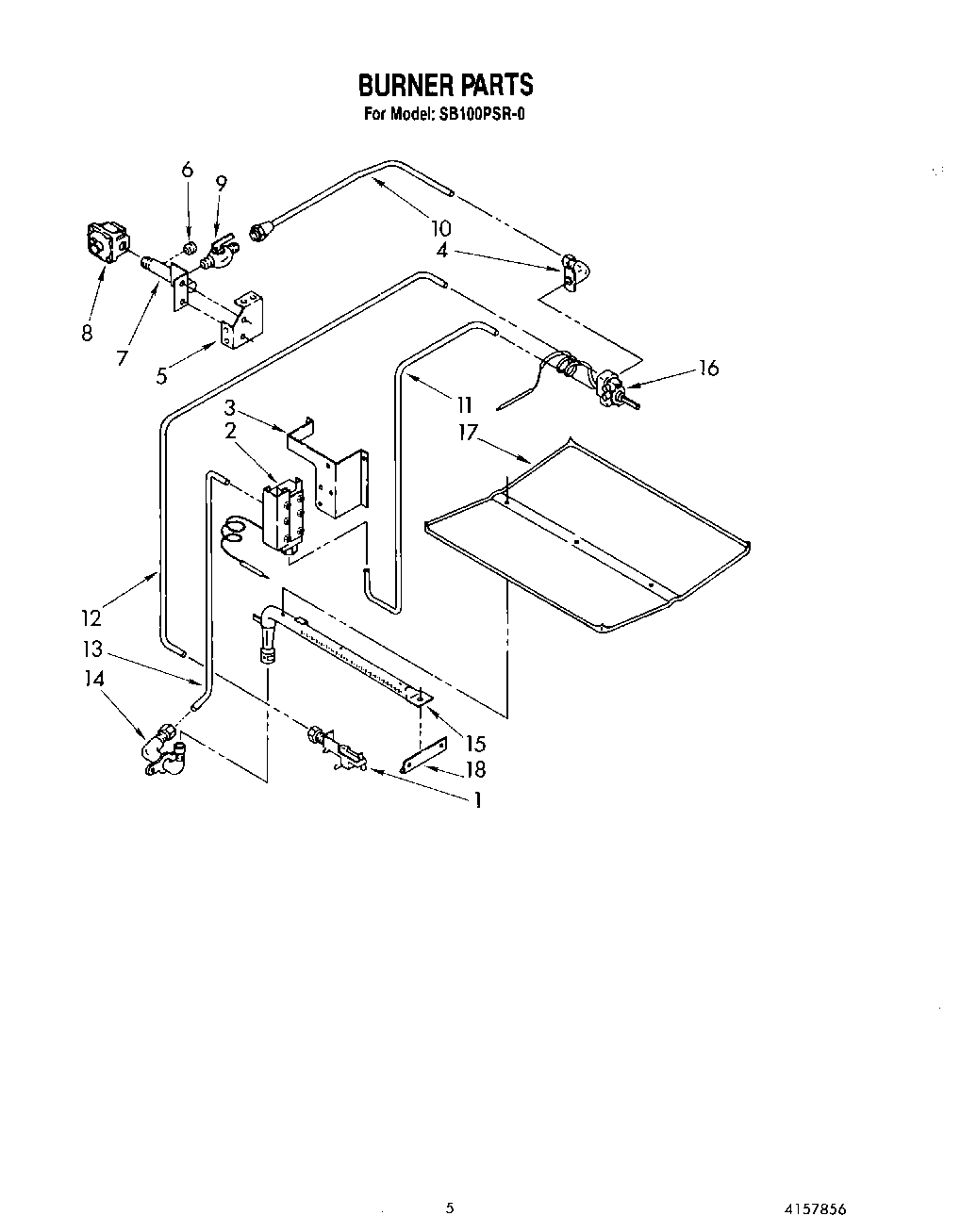

SB100PSR0 04 – BURNER

Products

PositionProduct
1Pilot
2Valve, Gas
3Bracket, Valve
4Fitting, Flange
5Support, Inlet
6Plug, Pipe
7Inlet Pipe
8Regulator, Pressure
9Valve, Shut Off
10Tubing (Inlet To Thermostat)
11Tubing (Thermostat To Vavle)
12Tubing (Thermostat To Pilot)
13Tubing (Valve To Orfice)
14Orfice, Broiler
15Burner, Broiler
16Thermostat
17Reflector
18Support, Burner
18WP308685 Whirlpool Microwave Screw
