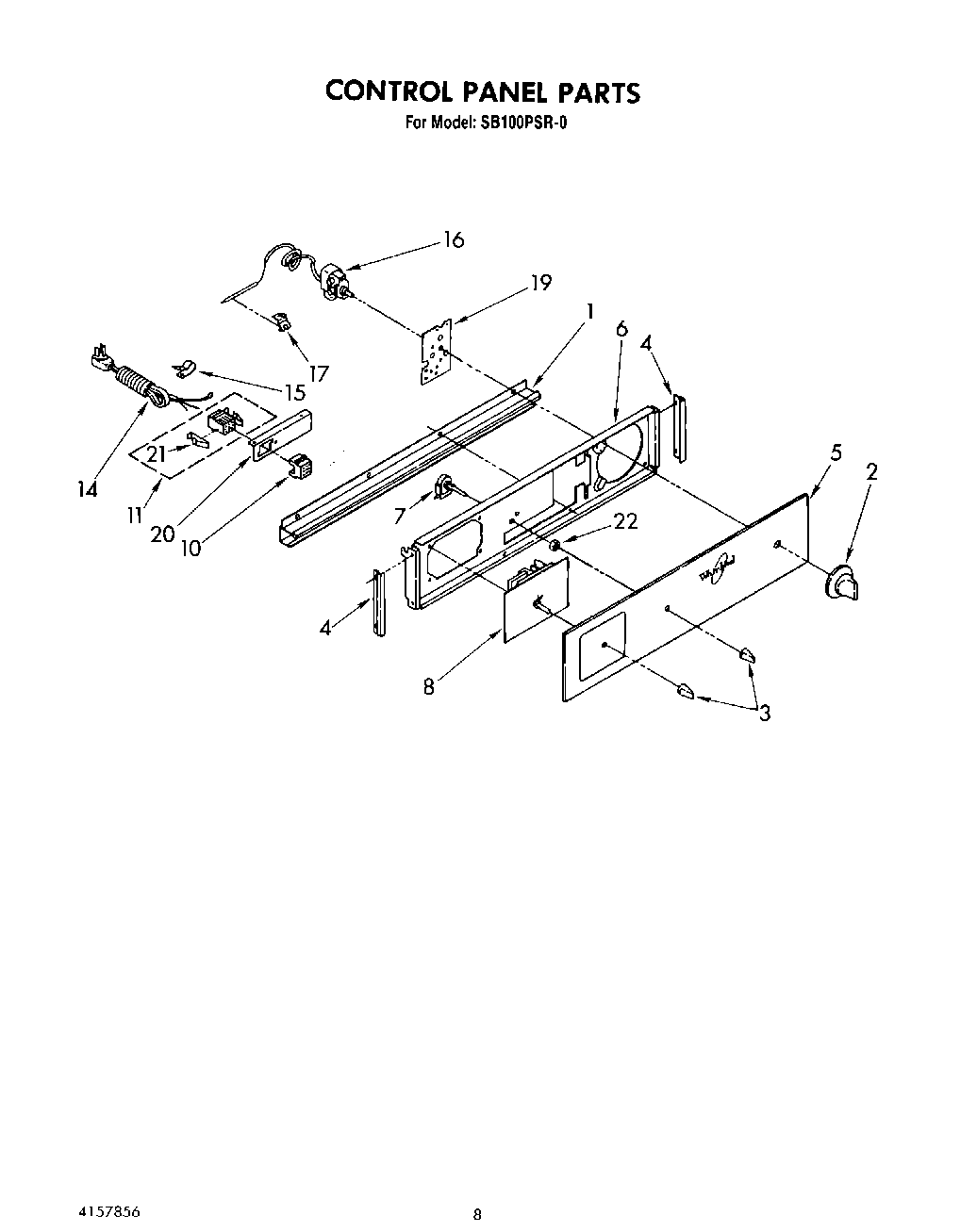

SB100PSR0 06 – CONTROL PANELadmin2025-04-26T11:21:43+00:00SB100PSR0 06 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Trim |
| 2 | Knob, Thermostat |
| 3 | Knob, Clock |
| 4 | Channel, Glass (2) |
| 5 | Glass, Control Panel |
| 6 | Bracket |
| 7 | Switch, Light |
| 8 | Timer |
| 8 | Nut, 6-32 (4) |
| 10 | Block, Disconnect |
| 11 | Block, Disconnect |
| 14 | Cord, Power |
| 15 | WP308685 Whirlpool Microwave Screw |
| 15 | Clamp |
| 16 | Thermostat |
| 17 | Clip, Thermo Bulb (2) |
| 19 | Screw, 8-18 X 3/8 (4) |
| 19 | Bracket, Thermostat |
| 20 | Bracket, Fuse |
| 20 | Screw, 6-20 X 1/4 (1) |
| 20 | WP693304 Whirlpool Screw |
| 21 | Clip (2) |
| 22 | Bushing |
