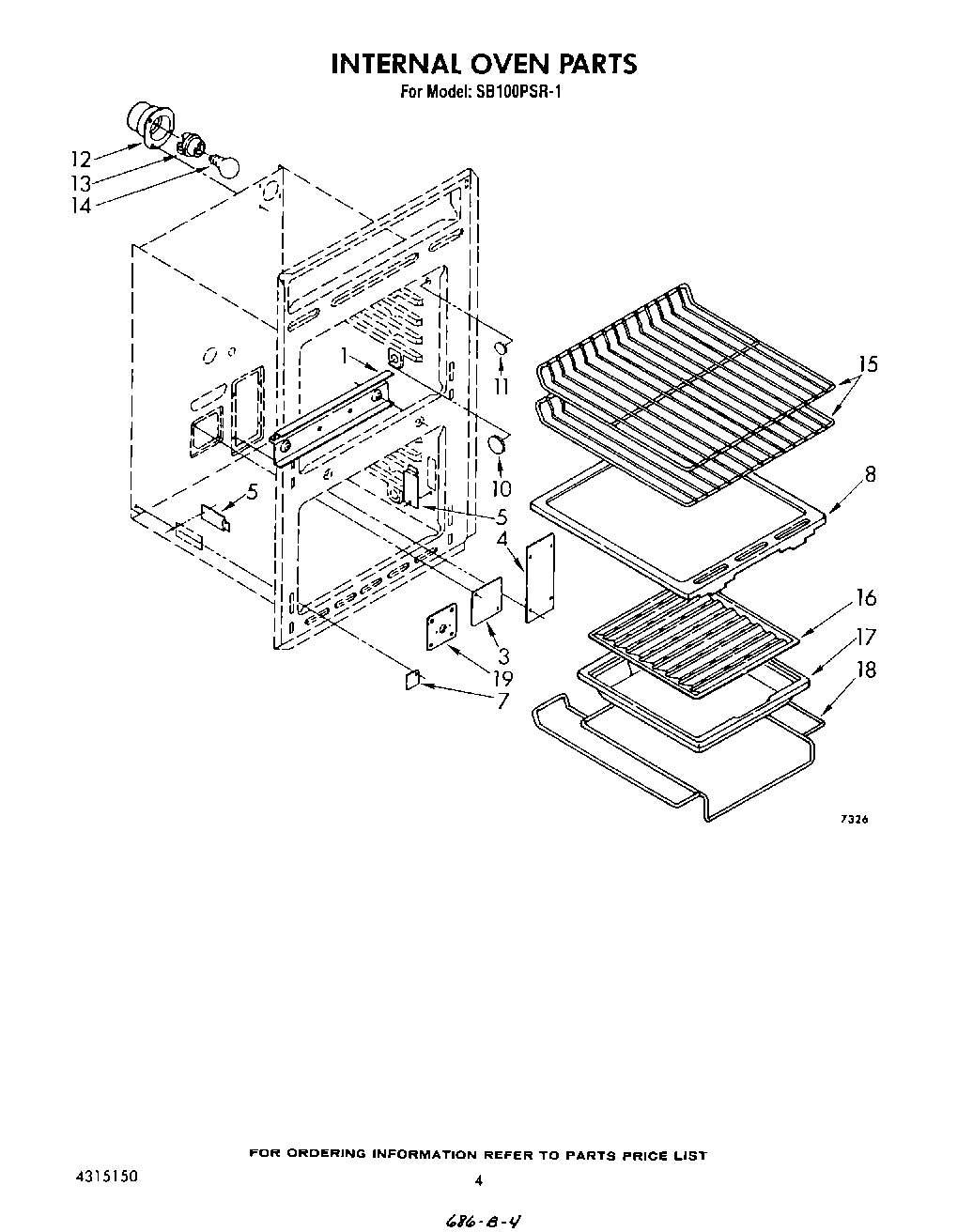

SB100PSR1 03 – INTERNAL OVEN

SB100PSR1 03 – INTERNAL OVEN

Written by

in

SB100PSR1 03 – INTERNAL OVEN

Products

PositionProduct
1W10080180 Whirlpool Nut
1Screw, 10-24 X 3/8 (2)
1Support, Channel
3Plate, Cover
4Plate, Cover
4WP308685 Whirlpool Microwave Screw
5Cover, Spring (3)
5Screw, 8-18 X 3/8 (4)
7Cover, Oven Back
8Bottom, Oven
10Plug, Button (4)
11Plug, Button (1)
12Housing, Light
13Socket, Light
14RANGE ONLY 40W 120V APPL BULB
15Rack, Oven
16Grid, Broiler
17Pan, Broiler
18Rack, Broiler
19Plate, Orfice
