SB100PSR1 05 – OVEN DOOR AND BROILER, LIT/OPTIONAL

SB100PSR1 05 – OVEN DOOR AND BROILER, LIT/OPTIONAL

Written by

in

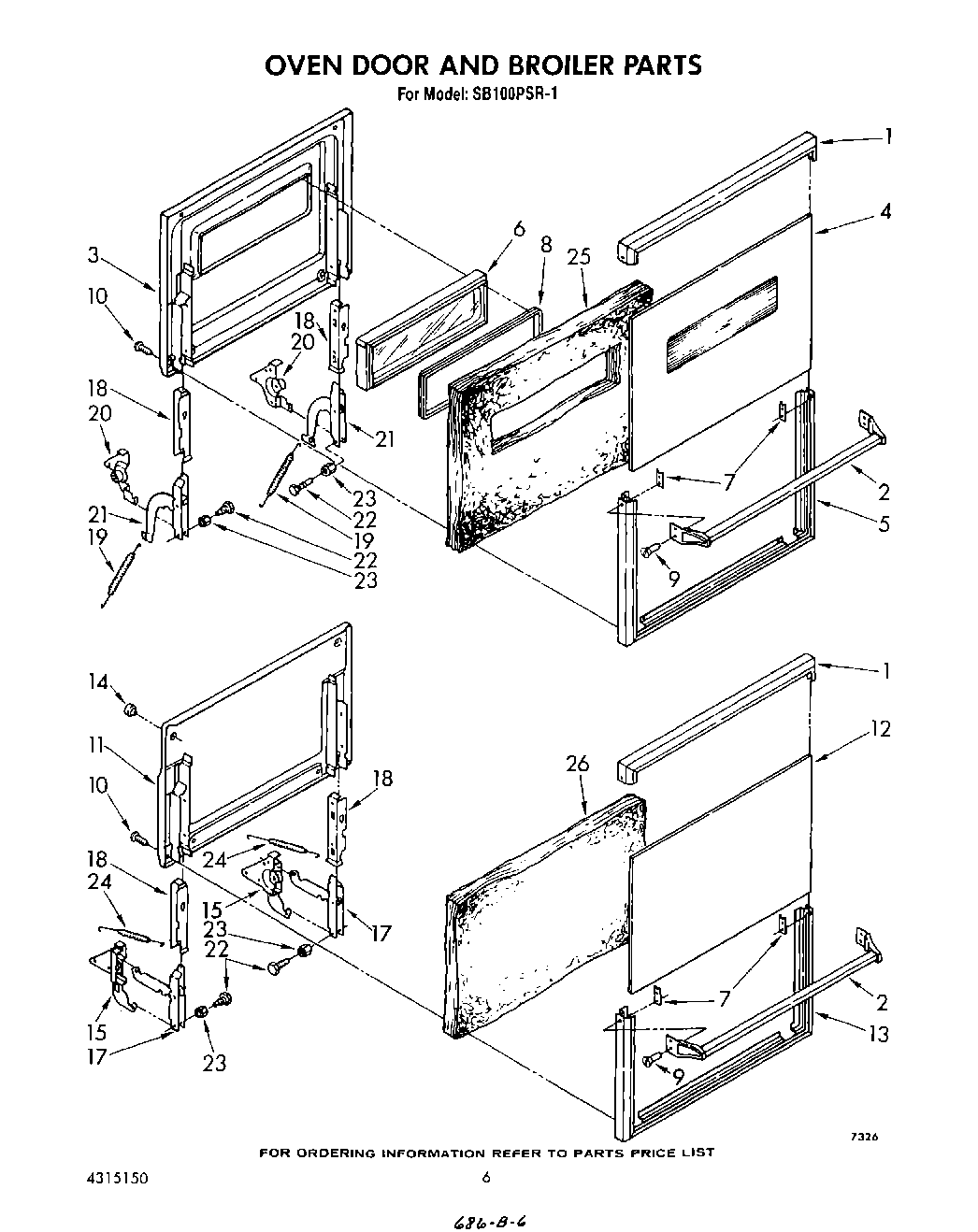

SB100PSR1 05 – OVEN DOOR AND BROILER, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Instructions, Installation
Guide, Cooking
1Frame, Top
2Handle
3Liner, Oven Door
4Glass, Outer (Oven)
5Frame, Bottom (Oven)
6Window Package
7Plate (2)
8Gasket
9Screw (4)
10WP308685 Whirlpool Microwave Screw
11Liner, Broiler Door
12Glass, outer (Broiler)
13Frame, Bottom (Broiler)
14Bumper (2)
15Screw, 10-24 X 3/8 (2)
15Hinge (Right Hand)
15Hinge (Left Hand)
17Arm, Hinge (Right Hand)
17Arm, Hinge (Left Hand)
18Socket, Hinge (Right Hand)
18Socket, Hinge (Left Hand)
18Screw, 10-24 X 1/4 (1)
19Spring, Oven Door (2)
20Hinge, Fixed (Right Hand)
20Hinge, Fixed (Left Hand)
21Channel (Left Hand)
21Channel (Right Hand)
22Screw (2)
23Spacer (2)
24Spring (2)
25Insulation
26WPW10208653 Whirlpool Insulation
26Insulation
26FOIL, ALUMINUM OVEN (18“ X 25 )
