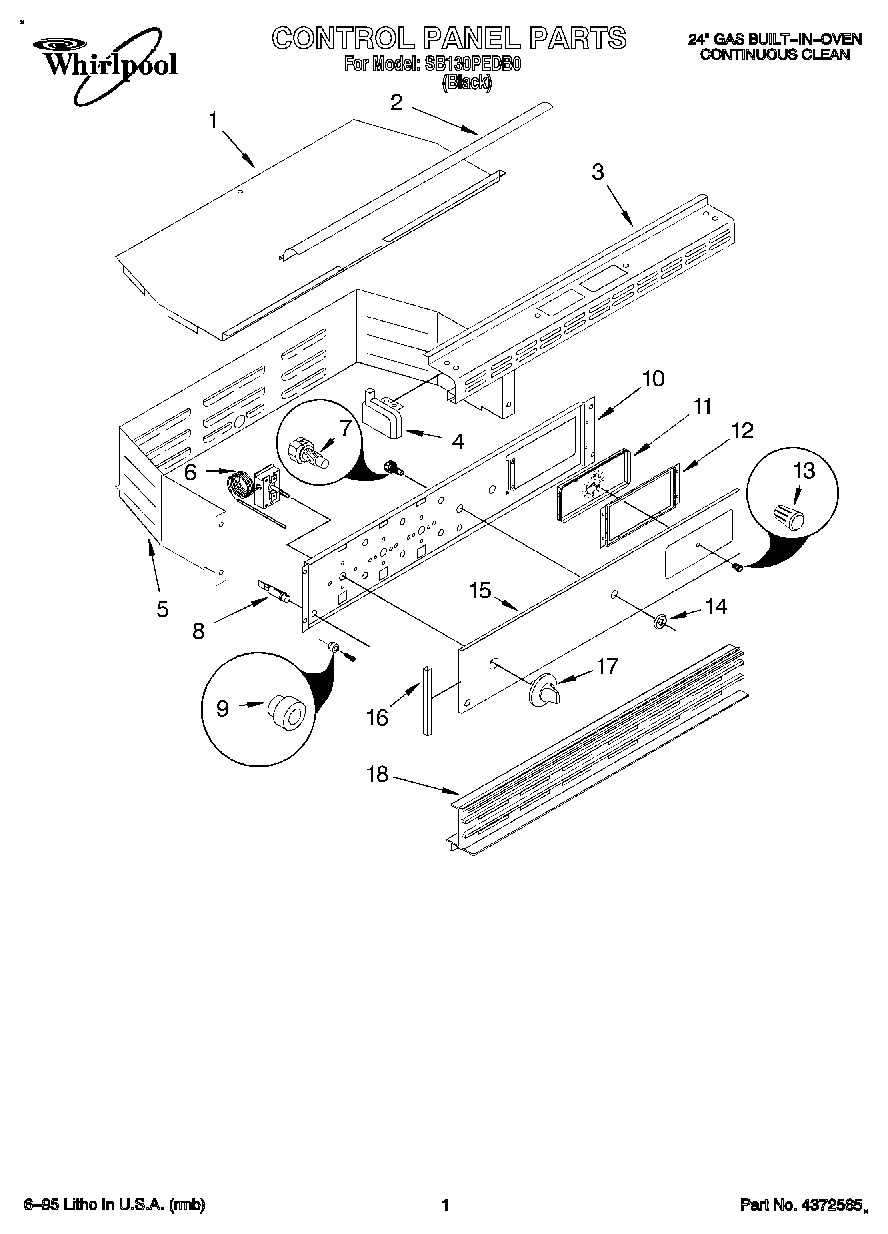

SB130PEDB0 01 – CONTROL PANEL

Products

PositionProduct
1Cover, Control
2Deflector, Heat (Black)
3Trim, Top
4Endcap (Right Hand)
4Endcap (Left Hand)
5Shield, Control
6Thermostat
7Switch, Oven Light
8Light, Indicator
9Bumper, Rubber (4)
10Plate, Control Mtg
11Clock
12Bracket, Clock
13Knob, Clock
14Bezel, Switch
15Panel, Control
16Trim, Control Panel (2) (Black)
17Knob, Thermostat
18Trim, Center Vent
